techiny.com Layer height and nozzle diameter are critical factors influencing the quality and speed of 3D printing pet models. A smaller layer height produces finer details and smoother surfaces, while a larger nozzle diameter allows faster printing but with less precision. Balancing these parameters optimizes strength, resolution, and print time for customized pet figurines.
Table of Comparison
| Parameter | Description | Impact on Print Quality | Typical Range |
|---|---|---|---|
| Layer Height | Vertical thickness of each printed layer | Lower values improve surface detail and smoothness | 0.05 mm to 0.3 mm |
| Nozzle Diameter | Width of the printer's extrusion nozzle opening | Smaller diameters enable finer details but slower prints | 0.2 mm to 0.8 mm |
Understanding Layer Height in 3D Printing
Layer height in 3D printing is the vertical thickness of each printed layer, directly impacting print resolution and surface finish quality. It is typically set between 25% and 75% of the nozzle diameter to ensure optimal extrusion and adhesion. Choosing an appropriate layer height balances print speed and detail precision, with smaller heights producing finer details but longer print times.
The Role of Nozzle Diameter in Print Quality
Nozzle diameter directly influences the resolution and layer adhesion in 3D printing, as smaller diameters allow for finer details and smoother surface finishes. A nozzle diameter of 0.4 mm is standard, balancing print speed and quality, while smaller sizes like 0.2 mm enhance detail but increase print time. Optimizing nozzle diameter relative to layer height ensures precise extrusion, reducing defects such as layer misalignment and improving overall print accuracy.
Layer Height vs Nozzle Diameter: Key Differences
Layer height and nozzle diameter are critical parameters in 3D printing that directly influence print quality and speed. Layer height refers to the thickness of each individual layer deposited, affecting surface resolution and print time, while nozzle diameter determines the width of the extruded filament, impacting extrusion flow and detail resolution. Choosing an appropriate layer height relative to the nozzle diameter, typically between 25% to 75% of the nozzle size, is essential for achieving optimal print strength, precision, and smooth surface finishes.
How Layer Height Affects Print Resolution
Layer height directly influences print resolution by determining the thickness of each printed layer, with smaller layer heights producing finer details and smoother surfaces. A layer height typically set between 20% to 75% of the nozzle diameter balances print speed and quality, where reducing the layer height below 50% of the nozzle diameter significantly enhances detail but increases print time. Optimizing layer height relative to nozzle diameter is essential for achieving high-resolution 3D prints while maintaining efficient print duration.
Impact of Nozzle Diameter on Print Speed
Nozzle diameter significantly impacts 3D print speed by determining the width of extruded filament per layer; larger diameters allow for thicker extrusion paths, reducing the number of passes needed to fill an area. For example, a 0.8 mm nozzle can deposit material faster than a 0.4 mm nozzle, effectively halving print time for the same volume. Optimizing nozzle diameter enhances productivity but may compromise finer detail resolution, requiring a balance based on project requirements.
Balancing Detail and Strength: Best Practices
Optimizing layer height relative to nozzle diameter is crucial for balancing detail and strength in 3D printing; typically, layer height should be between 25% and 75% of the nozzle diameter to maintain structural integrity while achieving fine details. A smaller layer height, close to 25% of the nozzle diameter, enhances print resolution and surface finish but can elongate print time. Conversely, a larger layer height, nearing 75%, increases strength and reduces print duration but may compromise intricate details.
Which to Adjust First: Layer Height or Nozzle Size?
Adjust the nozzle diameter first when seeking significant changes in print resolution or material flow, as it directly impacts extrusion width and overall print strength. Layer height should then be optimized to balance print speed and surface quality, typically set between 25% to 75% of the nozzle diameter for optimal results. Prioritizing nozzle size ensures fundamental print capabilities, while layer height fine-tunes detail and printing efficiency in 3D printing workflows.
Common Pitfalls When Matching Nozzle and Layer Heights
Selecting an appropriate layer height relative to nozzle diameter is vital for print quality and structural integrity in 3D printing. A common pitfall is setting the layer height too close to or exceeding 80% of the nozzle diameter, which can lead to poor layer adhesion and surface defects. Maintaining a layer height between 25% to 75% of the nozzle diameter ensures optimal extrusion flow and detailed resolution.
Optimizing Printing Parameters for Desired Results
Optimizing layer height relative to nozzle diameter is crucial for balancing print quality and speed in 3D printing. A general guideline is to set the layer height between 25% and 75% of the nozzle diameter, where smaller layer heights improve detail but increase print time. Adjusting these parameters allows precise control over surface finish, strength, and material flow, ensuring desired results are consistently achieved.
Choosing the Right Setup for Your 3D Printing Project
Selecting the optimal layer height relative to nozzle diameter is crucial for balancing print quality and speed in 3D printing. A common recommendation is setting the layer height to 20-80% of the nozzle diameter, enabling precise detail while maintaining efficient build times. Adjusting this ratio affects surface finish, structural strength, and overall print accuracy, tailoring the setup to specific project requirements.

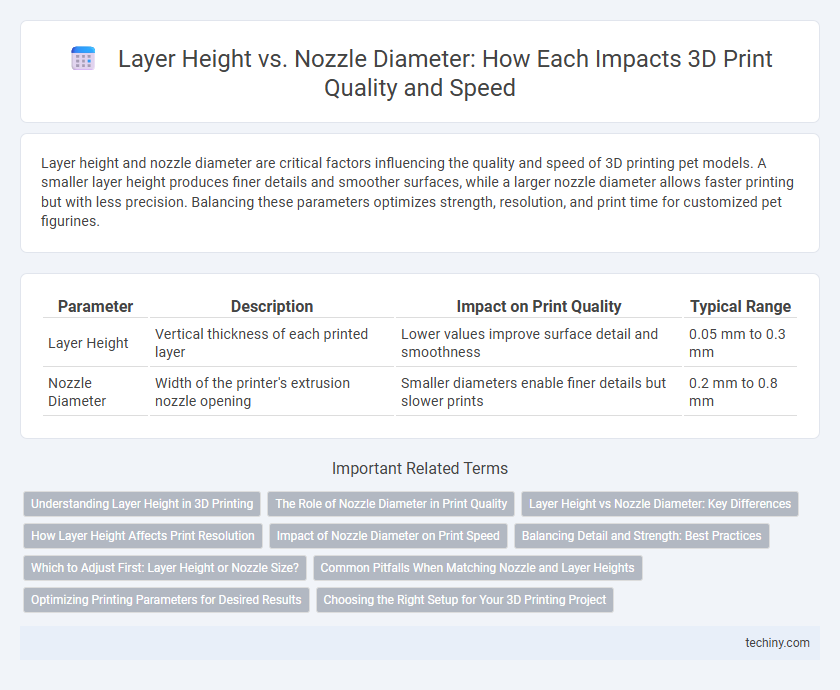

Layer Height vs Nozzle Diameter Infographic
