techiny.com Power Over Ethernet (PoE) delivers power and data simultaneously through a single Ethernet cable, making it ideal for network devices like IP cameras and VoIP phones that require both connectivity and power in remote locations. USB Power Delivery (USB-PD) offers flexible voltage and current levels over a USB connection, enabling fast charging and power supply for a wide range of consumer electronics such as laptops, smartphones, and peripherals. Choosing between PoE and USB-PD depends on the application's power requirements, cable type, and device compatibility, with PoE suited for network infrastructure and USB-PD optimized for portable device charging.
Table of Comparison
| Feature | Power Over Ethernet (PoE) | USB Power Delivery (USB-PD) |
|---|---|---|
| Power Delivery | Up to 90W (PoE++/Type 4) | Up to 100W (20V, 5A) |
| Data Transmission | Ethernet data up to 10 Gbps | USB data up to 40 Gbps (USB4) |
| Cable Type | Cat5e or higher twisted pair Ethernet cables | USB-C cables |
| Primary Use Case | Network devices (IP cameras, VoIP phones, access points) | Consumer electronics (smartphones, laptops, tablets) |
| Power Negotiation | Automatic detection via PD controller | Dynamic power negotiation via protocol |
| Distance | Up to 100 meters | Up to 4 meters recommended |
| Standard Organizations | IEEE 802.3af/at/bt | USB-IF |
| Advantages | Single cable for power & data, long distance, reliable for network devices | Higher power for compact devices, bidirectional power, fast charging |
| Limitations | Lower max power than USB-PD, requires PoE switch/injector | Shorter cable length, needs specific USB-PD compatible devices |
Introduction to Power Over Ethernet (PoE) and USB Power Delivery (USB-PD)
Power Over Ethernet (PoE) technology enables electrical power transmission along with data over standard Ethernet cables, simplifying device installation by eliminating separate power supplies. USB Power Delivery (USB-PD) is a fast-charging protocol that delivers up to 100 watts of power through USB Type-C connectors, supporting dynamic power negotiation between devices. Both PoE and USB-PD are critical in hardware engineering for powering network devices and peripherals efficiently while maintaining data communication.
Core Principles and Technology Architecture
Power Over Ethernet (PoE) delivers electrical power along with data over standard Ethernet cables using a centralized power sourcing equipment (PSE) and powered devices (PD) architecture, enabling up to 90W of power with IEEE 802.3at and 802.3bt standards. USB Power Delivery (USB-PD) employs a bidirectional, dynamic power negotiation protocol through USB-C cables, allowing power transfer up to 100W or more, adapting voltage and current in real-time between host and device. The PoE system integrates power with existing network infrastructure focusing on long-distance delivery and device compatibility, whereas USB-PD emphasizes versatile, high-speed charging across consumer electronics with flexible power profiles and plug-and-play convenience.
Power Transmission Capabilities and Limitations
Power Over Ethernet (PoE) delivers up to 90 watts of power over standard Ethernet cables, enabling simultaneous data and power transmission to network devices without additional power sources, making it ideal for IP cameras, VoIP phones, and wireless access points. USB Power Delivery (USB-PD) supports power delivery up to 100 watts through USB-C connectors, enabling fast charging and powering of a wide range of consumer electronics, including laptops and smartphones, but it is limited by cable length and compatibility. PoE excels in structured cabling environments requiring centralized power management, whereas USB-PD offers greater power flexibility but is constrained by device-specific protocols and shorter cable distances.
Data Transfer Rates and Communication Protocols
Power Over Ethernet (PoE) delivers power and data over a single Ethernet cable using standardized communication protocols such as IEEE 802.3af/at/bt, supporting data transfer speeds up to 10 Gbps with Ethernet standards like 10GBASE-T. USB Power Delivery (USB-PD) leverages the USB 2.0, 3.0, and 3.1 protocols, enabling power delivery along with high-speed data transfers up to 20 Gbps with USB 3.2 Gen 2x2. PoE provides robust network-level communication control and device management typically used in networking equipment, while USB-PD focuses on device-level negotiation and fast charging, optimized for consumer electronics and peripherals.
Device Compatibility and Ecosystem Support
Power Over Ethernet (PoE) is widely supported in enterprise networking equipment, offering seamless integration with IP cameras, VoIP phones, and wireless access points, making it ideal for large-scale deployments with standardized device compatibility. USB Power Delivery (USB-PD) excels in consumer electronics, providing versatile power negotiation across laptops, smartphones, and peripherals, supported by a broad and rapidly growing ecosystem driven by USB-C adoption. PoE's compatibility hinges on IEEE 802.3 standards ensuring interoperability across manufacturers, whereas USB-PD's ecosystem thrives on cross-industry collaboration and evolving protocol versions for dynamic power profiles.
Installation Flexibility and Infrastructure Requirements
Power Over Ethernet (PoE) enables data and power transmission through a single Ethernet cable, significantly reducing installation complexity and infrastructure costs by minimizing the need for additional power outlets. USB Power Delivery (USB-PD) relies on dedicated USB power adapters and cables, often requiring separate power infrastructure and limiting deployment flexibility compared to PoE's centralized power sourcing. PoE supports long cable runs up to 100 meters without degrading performance, enhancing installation versatility in enterprise environments, whereas USB-PD's power delivery is constrained by shorter cable lengths and specific USB standards.
Safety Standards and Regulatory Compliance
Power Over Ethernet (PoE) adheres to IEEE 802.3af, 802.3at, and 802.3bt standards, ensuring safe power transmission up to 90W with built-in overload and short-circuit protections, meeting UL, CE, and FCC regulatory requirements for networked devices. USB Power Delivery (USB-PD) follows USB-IF specifications, delivering up to 100W with dynamic voltage scaling and enhanced current management to prevent overheating and electrical faults, complying with UL, IEC, and regional safety certifications. Both technologies prioritize device safety and regulatory compliance through standardized protocols and rigorous testing to mitigate risks associated with power delivery over data lines.
Cost Implications and Scalability
Power Over Ethernet (PoE) offers cost-effective scalability by combining data and power transmission over a single cable, reducing infrastructure and installation expenses, especially in complex networked environments. USB Power Delivery (USB-PD) supports versatile device charging but often requires separate cabling and power adapters, leading to higher per-unit costs and less efficient scaling for large deployments. PoE's centralized power sourcing and simplified wiring infrastructure make it more advantageous for scalable hardware engineering projects with budget constraints.
Application Scenarios: PoE vs USB-PD Use Cases
Power Over Ethernet (PoE) is ideal for network devices such as IP cameras, VoIP phones, and wireless access points that require both power and data over a single cable, simplifying installation in commercial environments. USB Power Delivery (USB-PD) suits portable electronics like smartphones, tablets, and laptops, enabling fast charging and power negotiation via USB-C connectors in consumer and office settings. PoE excels in fixed infrastructure applications with centralized power management, while USB-PD supports versatile, high-wattage power delivery for mobile and personal devices.
Future Trends and Evolution in Power Delivery Technologies
Power Over Ethernet (PoE) is evolving with higher power capabilities, now supporting up to 90W through standards like IEEE 802.3bt, enabling more versatile applications in IoT and smart buildings. USB Power Delivery (USB-PD) continues to advance with faster negotiation protocols and increased power levels up to 240W, targeting laptops, displays, and high-performance peripherals. The future of power delivery technologies converges on seamless, efficient multi-protocol support, integrating adaptive power management and enhanced safety features to meet growing demands in connected devices and energy-efficient systems.

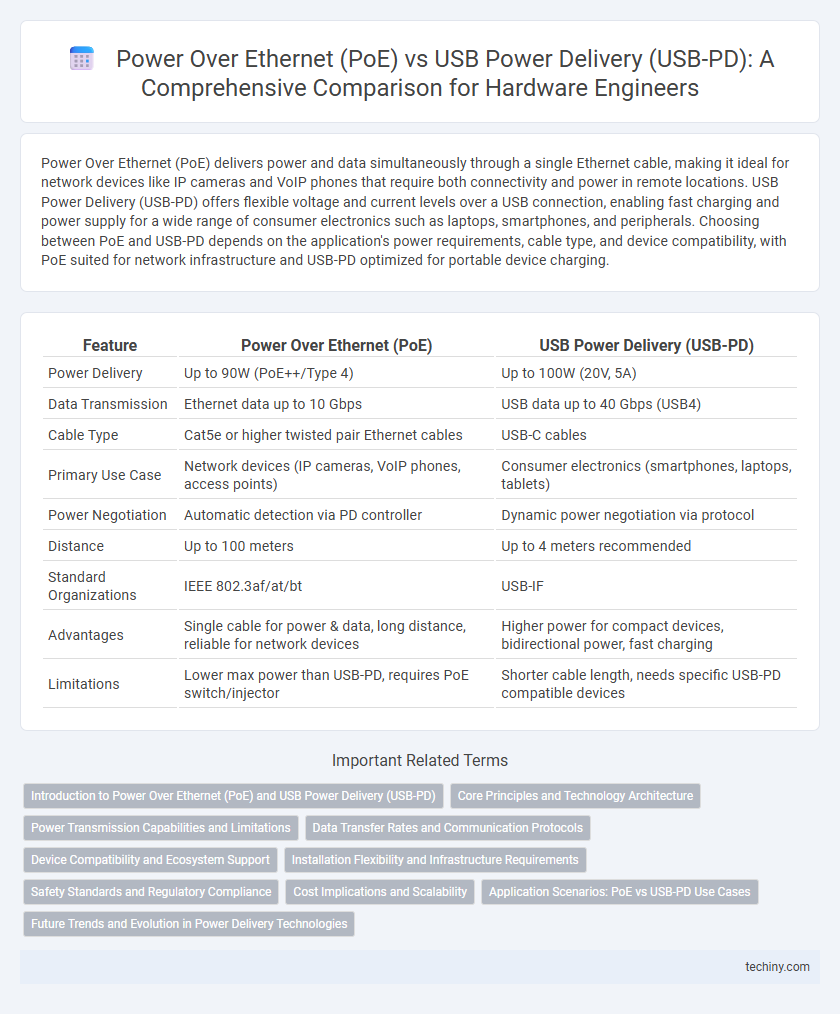

Power Over Ethernet (PoE) vs USB Power Delivery (USB-PD) Infographic
