techiny.com Fixed resistors provide a constant resistance value essential for stable circuit performance, while variable resistors allow for adjustable resistance to fine-tune electrical parameters. Fixed resistors are typically used in applications requiring precise resistance, such as voltage dividers and current limiters. Variable resistors, like potentiometers and rheostats, enable dynamic control of voltage or current, making them ideal for calibration and tuning in hardware design.
Table of Comparison
| Feature | Fixed Resistor | Variable Resistor |
|---|---|---|
| Definition | Resistor with a constant resistance value. | Resistor with adjustable resistance. |
| Resistance Range | Fixed, specific ohm value (e.g., 1kO). | Variable, usually via a knob or slider (e.g., 0-10kO). |
| Applications | Current limiting, voltage division, precise circuits. | Adjustable tuning, calibration, signal control. |
| Types | Ceramic, carbon film, metal film. | Potentiometer, rheostat, trimmer. |
| Accuracy | High due to fixed value. | Lower; varies with adjustment and wear. |
| Cost | Generally lower cost. | Higher cost due to mechanical parts. |
| Reliability | More reliable; no moving parts. | Less reliable; mechanical wear possible. |
Introduction to Fixed and Variable Resistors
Fixed resistors provide a constant resistance value essential for controlling current flow in electronic circuits, characterized by precise tolerances and power ratings. Variable resistors, such as potentiometers and rheostats, offer adjustable resistance to fine-tune circuit parameters dynamically for calibration and testing purposes. Both types play a crucial role in hardware engineering by enabling stability and flexibility in electronic circuit design and functionality.
Core Differences Between Fixed and Variable Resistors
Fixed resistors provide a constant resistance value predetermined during manufacturing, ensuring stable and predictable current flow in electronic circuits. Variable resistors, such as potentiometers and rheostats, allow adjustable resistance through mechanical means, enabling dynamic control over voltage and current. The core difference lies in their functionality: fixed resistors maintain a set resistance, whereas variable resistors offer tunable resistance for calibration and signal adjustment in hardware engineering applications.
Working Principles of Fixed Resistors
Fixed resistors operate by providing a constant resistance value determined by the resistive material and its geometric dimensions, ensuring stable current flow in electronic circuits. The resistive element, typically made from carbon film, metal film, or wire wound around an insulating core, restricts electron flow proportionally to Ohm's Law (V=IR). Their non-adjustable resistance makes them essential for precise voltage division, current limiting, and biasing applications in hardware engineering designs.
Operating Mechanism of Variable Resistors
Variable resistors operate by adjusting the resistance through the movement of a slider or wiper across a resistive element, changing the effective length of the resistance path. This mechanism alters the voltage drop or current flow in the circuit, enabling fine-tuning of electrical parameters. Unlike fixed resistors with constant resistance, variable resistors provide dynamic control essential for applications like volume adjustment and sensor calibration.
Common Applications of Fixed Resistors
Fixed resistors are widely used in hardware engineering for current limiting, voltage division, and biasing electronic components in circuits. They provide stable resistance values essential for precise circuit operation in applications such as power supplies, signal processing, and electronic amplifiers. Their reliability and predictability make them ideal for use in resistor networks, feedback loops, and timing circuits.
Typical Uses of Variable Resistors
Variable resistors are commonly used in applications requiring adjustable voltage or current control, such as volume knobs in audio equipment, tuning circuits in radios, and dimmers for lighting systems. Their ability to fine-tune resistance values makes them essential in calibrating sensors and controlling signal levels in analog circuits. Precision potentiometers and rheostats enable engineers to customize circuit behavior for optimal performance in various hardware designs.
Advantages and Disadvantages of Fixed Resistors
Fixed resistors offer reliable resistance values with high precision and stability, making them ideal for consistent performance in electronic circuits. Their simple design results in lower cost and enhanced durability compared to variable resistors, but they lack adjustability, limiting flexibility in tuning circuit parameters. Fixed resistors are preferred in applications requiring fixed resistance values without the need for frequent adjustments.
Pros and Cons of Variable Resistors
Variable resistors offer precise control over resistance values, making them ideal for tuning circuits and adjusting signal levels. Their adjustable nature allows for dynamic calibration in hardware engineering applications, enhancing flexibility during prototyping. However, variable resistors can introduce noise and have lower reliability compared to fixed resistors due to mechanical wear and potential contact issues.
Selection Criteria: When to Use Fixed vs Variable Resistors
Fixed resistors are ideal for applications requiring precise, stable resistance values and long-term reliability in circuits such as voltage dividers and current limiting. Variable resistors, including potentiometers and rheostats, are preferred when adjustable resistance is necessary for tuning, calibration, or user-controlled devices like volume controls and sensor adjustments. Selection depends on whether consistent resistance or flexibility in circuit parameters is the priority.
Future Trends in Resistor Technology
Future trends in resistor technology highlight advancements in materials such as graphene and metal oxides to enhance durability and reduce size in fixed resistors. Variable resistors are evolving with integrated digital control, enabling precise resistance adjustments in real-time for IoT and AI hardware applications. These innovations aim to improve energy efficiency and performance in next-generation electronic circuits.

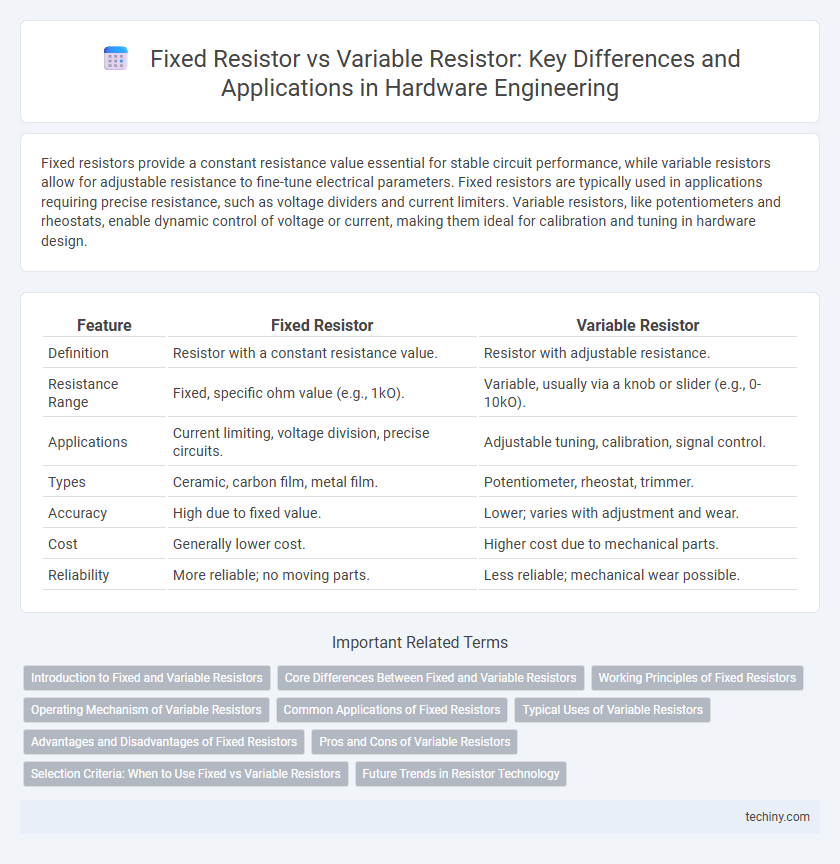

Fixed resistor vs Variable resistor Infographic
