techiny.com A full adder circuit adds three binary inputs, including a carry-in bit, producing a sum and a carry-out, enabling multi-bit binary addition. In contrast, a half adder only adds two binary inputs without a carry-in functionality, limiting its use to single-bit operations. Full adders are essential for constructing arithmetic logic units and complex digital circuits, while half adders are simpler building blocks used in basic addition tasks.
Table of Comparison
| Feature | Full Adder | Half Adder |
|---|---|---|
| Number of Inputs | 3 (A, B, Carry-in) | 2 (A, B) |
| Number of Outputs | 2 (Sum, Carry-out) | 2 (Sum, Carry) |
| Function | Adds three bits including carry-in | Adds two bits without carry-in |
| Carry Handling | Yes, propagates carry-out | No carry-in input, only generates carry |
| Complexity | Higher (more gates) | Lower (fewer gates) |
| Use Case | Multi-bit binary addition with carry propagation | Single bit addition without carry input |
Definition of Full Adder and Half Adder
A full adder is a digital circuit that adds three binary digits, including two significant bits and an input carry, producing a sum and a carry output. A half adder, in contrast, adds only two binary digits without accounting for any carry input, resulting in a sum and a carry output. Full adders are essential for arithmetic operations in multi-bit binary addition, while half adders serve simpler, two-bit addition tasks.
Basic Functionality: Full Adder vs Half Adder
A half adder performs the addition of two single-bit binary numbers, producing a sum and a carry output without accounting for any carry input. A full adder extends this functionality by adding three binary inputs--two significant bits and an incoming carry--yielding a sum and carry output, enabling multi-bit binary addition. Full adders are essential components in arithmetic logic units (ALUs) and cascading adders for complex binary computations.
Component Structure Comparison
A full adder consists of three inputs--two significant bits and a carry-in--and produces two outputs: a sum and a carry-out, whereas a half adder has only two inputs and yields a sum and a carry without a carry-in. The full adder incorporates two XOR gates, two AND gates, and one OR gate, making its component structure more complex compared to the half adder's single XOR and AND gate combination. This increased complexity allows the full adder to perform binary addition with carry-in functionality, essential for multi-bit arithmetic operations.
Input and Output Differences
A full adder has three inputs: two significant bits and a carry-in bit, while a half adder only has two inputs: two significant bits without a carry-in. The full adder produces two outputs, sum and carry-out, enabling multi-bit binary addition by handling carry propagation; the half adder generates a sum and a carry but is limited to single-bit addition without accounting for carry-in. This fundamental input and output difference dictates the use of full adders in cascaded multi-bit adder circuits and half adders in simpler single-bit addition tasks.
Logic Circuit Diagrams and Truth Tables
A full adder logic circuit diagram includes three inputs--two significant bits and a carry-in--and produces two outputs: sum and carry-out, while the half adder has only two inputs and outputs without carry-in consideration. The full adder truth table shows eight combinations, accommodating carry-in, compared to the half adder's four-input scenarios, reflecting its simpler design. This difference highlights the full adder's role in multi-bit binary addition across hardware engineering applications, where cascading half adders alone is insufficient.
Applications in Digital Systems
Full adders enable multi-bit binary addition essential for arithmetic logic units, supporting carry input for chaining in complex computations. Half adders are more suitable for simpler operations, handling single-bit addition without carry capability, often used in error detection circuits. Digital systems utilize full adders in processors and ALUs, while half adders serve in basic binary addition tasks and combinational logic designs.
Hardware Complexity and Gate Count
A full adder requires more hardware complexity than a half adder due to its ability to process three inputs: two significant bits and a carry-in, resulting in additional logic gates to generate sum and carry-out signals. Typically, a full adder comprises around 5 to 9 logic gates, including XOR, AND, and OR gates, whereas a half adder contains only 2 to 3 gates since it handles only two input bits without carry input. This increased gate count in full adders leads to greater silicon area and power consumption, impacting overall circuit design in hardware engineering.
Speed and Performance Analysis
Full adders outperform half adders in speed and performance due to their ability to handle carry inputs, enabling sequential bit addition in multi-bit binary operations. Half adders only process two single-bit inputs without carry input considerations, limiting their use to the least significant bit in arithmetic circuits. The propagation delay in full adders is higher per unit, but overall system speed increases when cascading full adders for complex computations.
Advantages and Limitations of Each
A full adder efficiently adds three binary inputs, including carry-in, enabling multi-bit binary addition essential for complex arithmetic circuits, but requires more gates and consumes more power compared to a half adder. A half adder is simpler, using fewer gates and lower power, ideal for adding two single-bit binary numbers without carry-in, yet it cannot handle carry input, limiting its use in cascaded addition. Choosing between them depends on circuit complexity and power constraints, with full adders preferred for multi-bit operations and half adders suitable for minimal, low-power designs.
Choosing Between Full Adder and Half Adder in Design
Choosing between a full adder and a half adder in hardware engineering depends on the complexity and requirements of the digital circuit. A half adder performs addition on two single-bit inputs without carry-in, suitable for simple arithmetic operations, while a full adder handles three inputs, including carry-in, making it essential for multi-bit binary addition and sequential logic design. Designers prioritize full adders for circuits requiring carry propagation and half adders for basic, low-complexity tasks to optimize area, power, and speed.

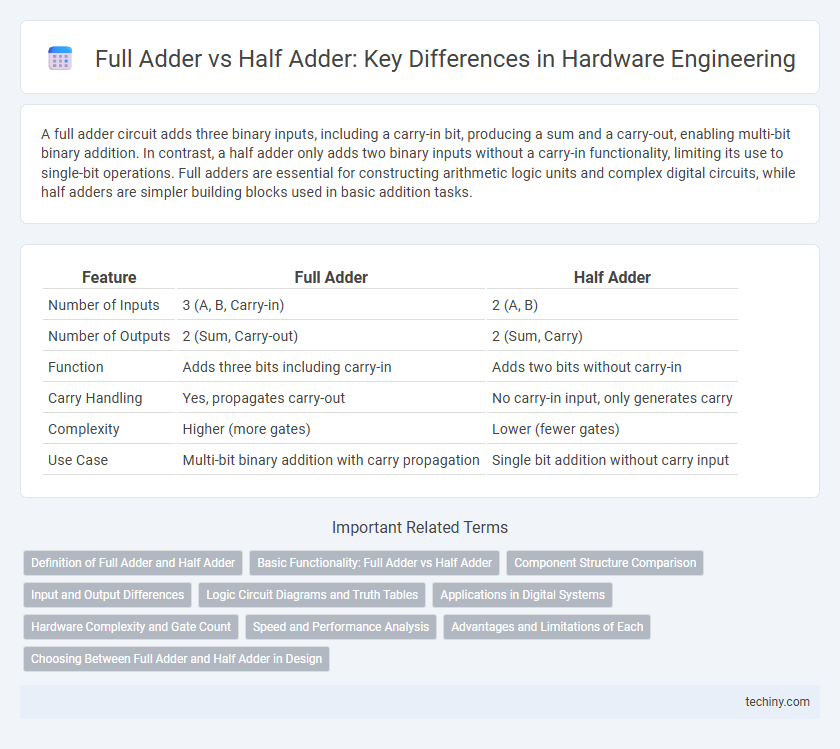

full adder vs half adder Infographic
