techiny.com NAND Flash offers higher storage density and faster write and erase speeds, making it ideal for mass storage applications such as SSDs and USB drives. NOR Flash provides faster random read access and greater reliability for executing code directly, commonly used in embedded systems and firmware storage. Understanding the trade-offs between NAND's cost-efficiency and NOR's performance is crucial for hardware engineers when selecting memory solutions for specific use cases.
Table of Comparison
| Feature | NAND Flash | NOR Flash |
|---|---|---|
| Architecture | Series-connected memory cells | Parallel-connected memory cells |
| Read Speed | Fast sequential read | Fast random read |
| Write/Erase Speed | Faster erase and write cycles | Slower erase and write cycles |
| Density | High density, cost-effective | Lower density, higher cost |
| Endurance | Lower endurance (10,000 - 100,000 cycles) | Higher endurance (100,000+ cycles) |
| Use Cases | Mass storage (e.g., SSDs, USB drives) | Code storage, execute-in-place (XIP) applications |
| Error Correction | ECC required | No ECC needed |
| Cost | Lower cost per bit | Higher cost per bit |
Introduction to NAND and NOR Flash Technologies
NAND Flash technology offers high-density storage with faster write and erase speeds, making it ideal for mass storage applications such as solid-state drives and memory cards. NOR Flash provides faster read speeds and random access capabilities, commonly used in embedded systems requiring execute-in-place (XIP) functionality. Both technologies utilize floating-gate transistors but differ in memory cell architecture, influencing their performance characteristics and typical use cases.
Fundamental Architecture Differences
NAND Flash utilizes a series of memory cells connected in a string, enabling higher density and faster write speeds with efficient use of silicon area compared to NOR Flash, which features each memory cell connected directly to the bit line. NOR Flash provides faster read speeds and random access capabilities, making it ideal for code execution in embedded systems. The fundamental architectural trade-off is NAND Flash's superior storage capacity and cost efficiency versus NOR Flash's advantage in low-latency, byte-addressable read operations.
Data Storage and Organization
NAND Flash excels in high-density data storage due to its page-oriented architecture, enabling faster write and erase cycles ideal for mass storage applications. NOR Flash offers byte-addressable storage with faster read speeds, making it suitable for code execution and random access in embedded systems. The contrasting organizational structures define NAND's block-based erase approach versus NOR's sector-level erase capability, impacting endurance and data management strategies.
Read and Write Speed Comparisons
NAND Flash memory offers significantly faster write speeds compared to NOR Flash, making it ideal for high-capacity data storage and frequent write operations. NOR Flash excels in read speed performance, providing rapid random access that benefits code execution in embedded systems. Optimal hardware engineering decisions depend on the application's need for either quick read access with NOR or efficient write/storage capabilities with NAND Flash.
Endurance and Reliability Factors
NAND Flash offers higher endurance with typically around 10,000 to 100,000 program/erase cycles, making it suitable for applications requiring frequent writes. NOR Flash provides superior reliability with faster read speeds and better data retention, supporting up to 1,000,000 read cycles and longer retention times. Endurance and reliability differences stem from their cell architecture, where NAND's dense design favors capacity and write endurance, while NOR's architecture enhances stability and read reliability.
Use Cases in Hardware Engineering
NAND Flash excels in high-density data storage applications such as solid-state drives (SSDs), USB drives, and memory cards due to its faster write and erase cycles and cost-effectiveness per bit. NOR Flash is preferred for embedded systems requiring reliable code execution and fast random access, including firmware storage in microcontrollers and automotive control units. Hardware engineers choose NAND Flash for bulk storage solutions and NOR Flash for executing code directly in place (XIP) to optimize system performance and reliability.
Cost Analysis and Market Trends
NAND Flash memory offers significantly lower cost per bit compared to NOR Flash due to its higher density and simpler cell architecture, making it the preferred choice for large storage applications. Market trends indicate increasing demand for NAND Flash in consumer electronics, driven by robust growth in SSDs and mobile devices, while NOR Flash maintains niche applications requiring fast read speeds and execute-in-place functionality. Cost analysis shows ongoing price reductions in NAND Flash enabled by advances in multi-level cell (MLC) and triple-level cell (TLC) technologies, impacting overall market dynamics.
Power Consumption and Efficiency
NAND Flash memory offers significantly lower power consumption compared to NOR Flash, making it ideal for battery-powered devices and high-density storage applications. NAND's architecture supports efficient write and erase cycles, reducing overall energy usage during intensive data operations. This power efficiency translates to longer battery life and improved system performance in portable electronics.
Scalability and Integration in Devices
NAND Flash exhibits superior scalability compared to NOR Flash due to its higher density and smaller cell size, enabling greater storage capacity within compact hardware designs. Integration of NAND Flash in devices is favored for applications requiring large data storage and fast write/erase cycles, such as smartphones and SSDs. In contrast, NOR Flash is advantageous for code storage and execute-in-place functionality, but its limited scalability restricts its use in high-capacity, integrated systems.
Future Developments in Flash Memory
Future developments in flash memory emphasize increased storage density, faster read/write speeds, and enhanced endurance for both NAND flash and NOR flash technologies. Emerging 3D NAND architectures enable stacking multiple cell layers, significantly boosting capacity while reducing costs, whereas advancements in NOR flash focus on improving random access speeds and reliability for embedded applications. Innovations in materials like charge-trap layers and the integration of silicon carbide substrates promise to extend lifespan and performance, positioning both flash types to meet evolving demands in consumer electronics and automotive systems.

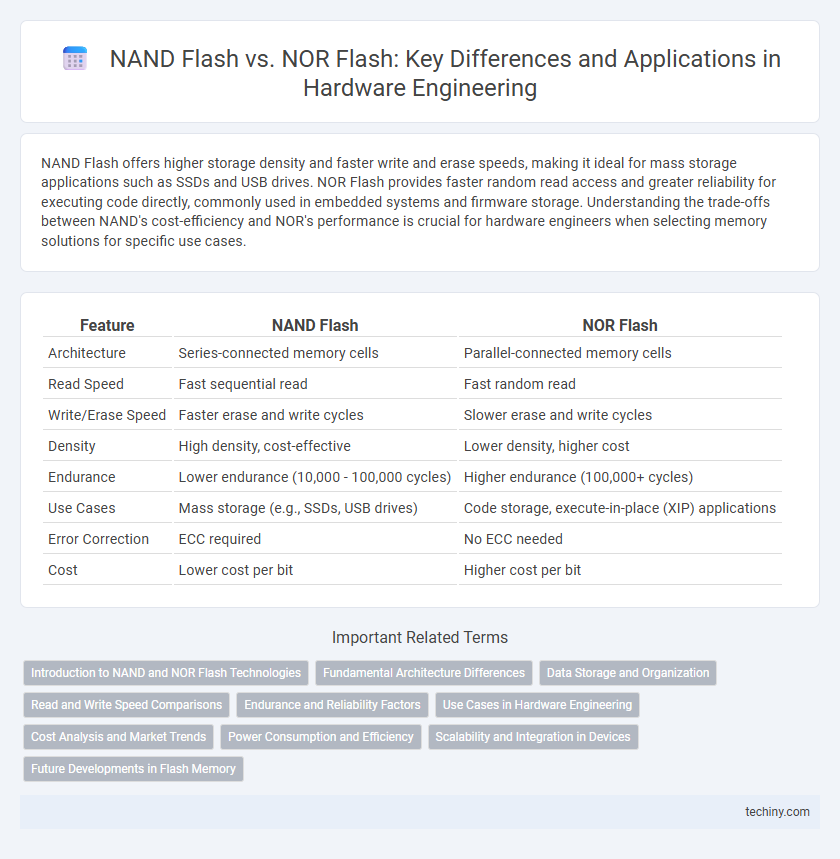

NAND Flash vs NOR Flash Infographic
