techiny.com Through-hole technology (THT) involves inserting component leads through drilled holes in the PCB, providing strong mechanical bonds ideal for heavy components and high-stress applications. Surface-mount technology (SMT) places components directly onto the PCB surface, enabling higher component density and faster automated assembly, which reduces manufacturing costs. Choosing between THT and SMT depends on factors such as component size, mechanical strength requirements, and production volume.
Table of Comparison
| Aspect | THT (Through-Hole Technology) | SMT (Surface-Mount Technology) |
|---|---|---|
| Mounting Method | Component leads inserted through drilled holes | Components placed directly on PCB surface |
| Component Size | Larger components | Smaller, compact components |
| Assembly Speed | Slower, manual or automated | Faster, highly automated |
| Mechanical Strength | Higher due to through-hole solder joints | Lower mechanical strength compared to THT |
| Cost | Higher manufacturing cost | Lower manufacturing cost |
| Repair & Rework | Easier to repair manually | More difficult, requires precision tools |
| PCB Design | Requires double-sided or multi-layer boards with drilled holes | Enables higher component density on PCBs |
| Applications | High-reliability, mechanical stress environments | High-volume consumer electronics |
Introduction to THT and SMT in Hardware Engineering
Through-Hole Technology (THT) involves mounting electronic components by inserting their leads into pre-drilled holes on a printed circuit board (PCB), ensuring strong mechanical bonds ideal for heavy components and high-reliability applications. Surface-Mount Technology (SMT) places components directly onto the PCB surface, allowing for smaller, lighter designs and higher component density, which is essential for modern compact and high-speed electronic devices. Both THT and SMT play critical roles in hardware engineering, with THT favored for durability and SMT prioritized for miniaturization and automated assembly.
Key Differences Between THT and SMT Technologies
Through-Hole Technology (THT) involves mounting electronic components by inserting leads into drilled holes on a printed circuit board (PCB), offering excellent mechanical strength and reliable connections for components subjected to mechanical stress. Surface-Mount Technology (SMT) places components directly onto the PCB surface, enabling higher component density, faster automated assembly, and suitability for high-frequency applications due to shorter lead lengths. Key differences include THT's compatibility with large, heavy components and simpler prototyping, contrasted with SMT's advantages in miniaturization, production speed, and cost efficiency in mass manufacturing.
Historical Evolution: THT to SMT Transition
Through the historical evolution of hardware engineering, Through-Hole Technology (THT) dominated early electronic assembly due to its robust mechanical bonds, facilitating reliable prototype and high-power device connections. The shift to Surface-Mount Technology (SMT) began in the late 20th century, driven by demand for miniaturization, higher component density, and automated production efficiency. SMT's ability to support smaller, lighter, and more complex circuit boards marked a paradigm shift from THT, enabling modern compact electronic devices and mass manufacturing scalability.
Components Used in THT and SMT Processes
Through-Hole Technology (THT) primarily uses components with leads designed to be inserted into drilled holes on a printed circuit board (PCB), such as resistors, capacitors, and large connectors, providing strong mechanical bonds ideal for high-stress applications. Surface-Mount Technology (SMT) employs tiny, leadless components like chip resistors, capacitors, and integrated circuits that are placed directly onto the PCB surface, allowing for higher component density and automated assembly. The choice between THT and SMT components significantly impacts manufacturing efficiency, circuit performance, and product miniaturization in hardware engineering.
Assembly Techniques: THT vs. SMT
Through-Hole Technology (THT) involves inserting component leads into pre-drilled holes on the PCB and soldering them on the opposite side, providing strong mechanical bonds ideal for heavy components and high-stress environments. Surface Mount Technology (SMT) attaches components directly onto the PCB surface, enabling higher component density, automated assembly, and improved electrical performance for compact devices. SMT assembly typically utilizes reflow soldering, while THT often requires wave soldering or manual soldering techniques.
Reliability and Performance Considerations
Through-Hole Technology (THT) provides stronger mechanical bonds due to component leads soldered through the PCB, enhancing durability in high-stress environments. Surface-Mount Technology (SMT) offers improved electrical performance with shorter signal paths and reduced parasitic inductance, benefiting high-frequency applications. Reliability in THT is favored for heavy components and connectors, while SMT excels in compact, high-density circuit designs requiring superior signal integrity.
Cost Implications of THT and SMT
Through-Hole Technology (THT) generally incurs higher manufacturing costs due to increased manual labor and longer assembly times compared to Surface-Mount Technology (SMT). SMT offers cost advantages by enabling automated, high-speed placement of smaller components, reducing material usage and minimizing production errors. Although initial setup for SMT may require higher capital investment in equipment, the overall cost per unit typically decreases with large-scale production.
Applications Best Suited for THT and SMT
Through-Hole Technology (THT) is best suited for applications requiring high mechanical strength and durability, such as automotive, aerospace, and industrial equipment, where components endure significant stress and vibration. Surface-Mount Technology (SMT) excels in high-density, compact electronic devices like smartphones, laptops, and consumer electronics due to its ability to support smaller, lighter components and automated assembly processes. THT is preferred for connectors, transformers, and components needing robust mounting, while SMT dominates in high-speed, high-frequency circuit designs requiring precise placement and miniaturization.
Challenges in THT and SMT Manufacturing
Through-Hole Technology (THT) manufacturing faces challenges such as increased board space requirements, longer assembly times, and difficulties in automating the insertion process, leading to higher production costs. Surface-Mount Technology (SMT) struggles with issues including component placement precision, solder joint reliability, and thermal management during reflow soldering. Both THT and SMT require specialized equipment and skilled labor to address defects and ensure consistent quality in complex hardware design environments.
Future Trends in PCB Assembly Technology
Future trends in PCB assembly technology emphasize the growing adoption of Surface Mount Technology (SMT) due to its higher component density, improved electrical performance, and compatibility with miniaturized devices. Through-Hole Technology (THT) remains relevant for mechanical strength and high-reliability applications but is gradually being supplemented by advanced hybrid assembly techniques integrating both THT and SMT. Innovations such as automated optical inspection, 3D printing for PCB prototypes, and lead-free soldering processes are accelerating the shift toward more efficient, sustainable, and precise assembly methods.

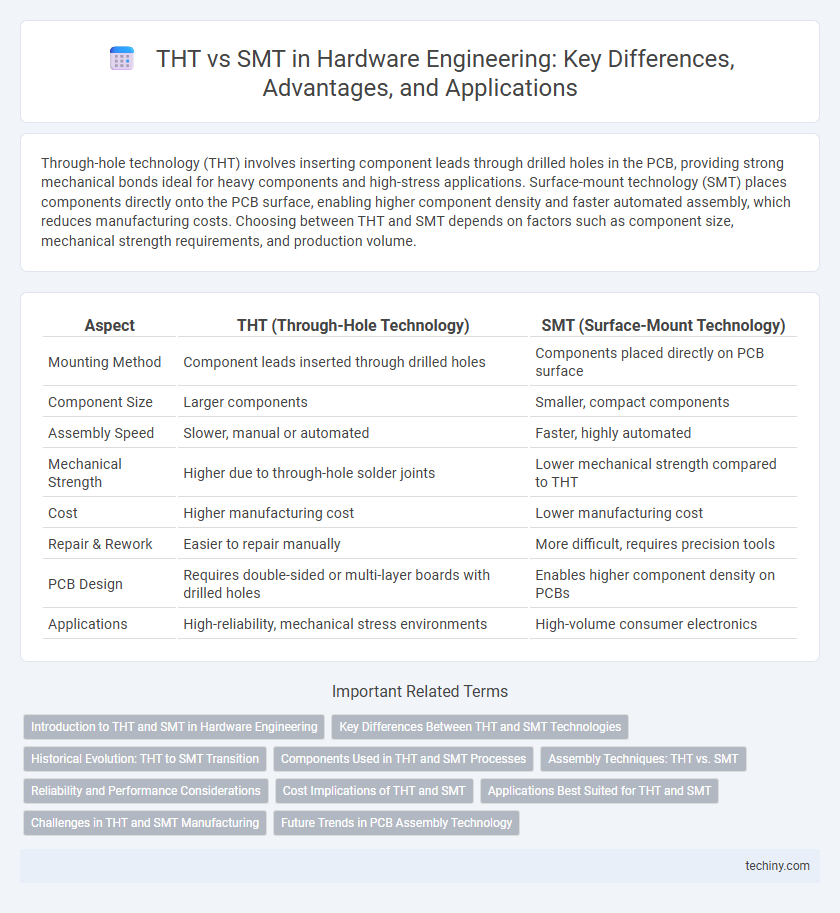

THT vs SMT Infographic
