techiny.com Ball Grid Array (BGA) offers superior electrical performance and thermal dissipation compared to the Quad Flat Package (QFP) due to its array of solder balls that enable lower inductance and resistance. BGA allows for higher pin density and smaller footprint, making it ideal for advanced hardware designs requiring compact and efficient layouts. In contrast, QFP packages provide easier visual inspection and rework but are limited by lead pitch and thermal conductivity constraints.
Table of Comparison
| Feature | Ball Grid Array (BGA) | Quad Flat Package (QFP) |
|---|---|---|
| Mounting Type | Surface Mount with solder balls | Surface Mount with gull-wing leads |
| Pin Density | High pin density, supports fine pitch | Moderate pin density, limited by lead spacing |
| Thermal Performance | Better heat dissipation due to direct contact | Less efficient heat dissipation |
| Size | Compact, smaller footprint | Larger footprint due to leads |
| Reliability | More robust solder joints, less prone to damage | Leads susceptible to bending and mechanical stress |
| Inspection and Repair | Inspection and rework require X-ray equipment | Easier visual inspection and manual rework |
| Cost | Higher manufacturing and assembly cost | Lower cost, simpler assembly process |
Overview of Ball Grid Array (BGA) and Quad Flat Package (QFP)
Ball Grid Array (BGA) is a surface-mount packaging technology where the integrated circuit is mounted on a substrate with solder balls arranged in a grid pattern on the underside, providing excellent thermal and electrical performance and higher pin density. Quad Flat Package (QFP) consists of a square or rectangular body with gull-wing leads extending from all four sides, offering ease of visual inspection and lower manufacturing cost but limited pin count and reduced thermal dissipation compared to BGA. BGA excels in advanced applications requiring compact size and high performance, while QFP remains popular for moderate pin counts and cost-sensitive projects.
Key Differences Between BGA and QFP
Ball Grid Array (BGA) packages feature an array of solder balls on the underside, providing superior electrical performance, lower inductance, and better thermal dissipation compared to Quad Flat Package (QFP) designs, which use flat leads extending from the package sides. BGAs offer higher pin density and more reliable solder joints due to the controlled collapse chip connection process, whereas QFPs are easier for visual inspection and manual rework but suffer from lead damage and signal integrity issues at high frequencies. The choice between BGA and QFP depends on application requirements such as space constraints, thermal management, assembly complexity, and electrical performance.
Electrical Performance Comparison
Ball Grid Array (BGA) packages offer superior electrical performance compared to Quad Flat Package (QFP) due to shorter interconnect paths and reduced parasitic inductance and capacitance. BGA's array of solder balls enables better signal integrity and higher frequency operation by minimizing signal loss and crosstalk. In contrast, QFP's longer lead lengths and exposed leads increase susceptibility to electromagnetic interference and degrade overall electrical performance in high-speed applications.
Thermal Management in BGA vs QFP
Ball Grid Array (BGA) packages offer superior thermal management compared to Quad Flat Package (QFP) designs due to their larger contact area and direct solder ball connections to the PCB, enabling efficient heat dissipation. In contrast, QFPs rely on leads that extend from the package, which limit thermal conduction paths and increase thermal resistance, potentially causing hotspots. Effective thermal management in BGA packages reduces junction temperature, enhances device reliability, and supports higher power densities in advanced hardware engineering applications.
Assembly and Soldering Techniques
Ball Grid Array (BGA) packages utilize an array of solder balls on the underside, facilitating automated assembly through precise reflow soldering and reducing lead inductance for improved electrical performance. Quad Flat Package (QFP) components feature gull-wing leads on all four sides, which require careful alignment and soldering with techniques such as wave soldering or selective soldering to avoid bridging or tombstoning. The BGA's hidden solder joints demand X-ray inspection post-assembly, while QFP solder joints are visually inspectable, impacting the quality control process in PCB manufacturing.
Reliability and Durability Factors
Ball Grid Array (BGA) packages offer superior reliability and durability compared to Quad Flat Package (QFP) due to their robust solder joint connections and better thermal dissipation capabilities. BGAs exhibit enhanced resistance to mechanical stress and thermal cycling, making them ideal for high-performance and high-reliability applications. QFPs are more susceptible to lead damage and solder joint fatigue under harsh environmental conditions, which can compromise long-term device stability.
Application Suitability: BGA vs QFP
Ball Grid Array (BGA) packages offer superior thermal performance and higher pin density, making them ideal for high-speed processors, memory modules, and compact mobile devices where space and heat dissipation are critical. Quad Flat Package (QFP) suits applications requiring easy visual inspection and repair, such as automotive electronics and industrial controllers, due to its exposed leads and simpler soldering process. BGA is preferred for advanced computing solutions demanding performance and miniaturization, while QFP remains effective for moderate complexity circuits with cost-sensitive assembly.
Inspection and Testing Challenges
Ball Grid Array (BGA) packages present unique inspection and testing challenges compared to Quad Flat Packages (QFP) due to their hidden solder joints beneath the component, making visual inspection difficult and often requiring X-ray tomography or automated optical inspection (AOI) systems for defect detection. QFPs have externally visible leads, facilitating easier manual and automated inspection, but their exposed pins are more susceptible to physical damage and misalignment during assembly. Electrical testing in BGAs also demands complex fixtures and sophisticated boundary-scan techniques to access hidden connections, whereas QFP testing can utilize conventional probe cards and simpler test setups.
Cost Implications for Manufacturing
Ball Grid Array (BGA) packages typically offer lower overall manufacturing costs compared to Quad Flat Packages (QFP) due to their smaller footprint and higher pin density, which enable more efficient PCB space utilization and reduced material usage. BGA assemblies require fewer solder joints and less expensive inspection processes, lowering labor and rework expenses in mass production. However, the initial investment in BGA-specific reflow and inspection equipment can be higher, influencing cost trade-offs based on production volume and complexity.
Future Trends in IC Packaging Technologies
Ball Grid Array (BGA) packages offer superior thermal performance and higher pin density compared to Quad Flat Packages (QFP), enabling advanced miniaturization in integrated circuit design. Emerging trends emphasize heterogeneous integration and 3D packaging, where BGA's robust solder ball matrix supports stacked dies and improved electrical interconnectivity. Innovations in materials and precision placement techniques further enhance BGA's suitability for next-generation high-performance and compact hardware engineering applications.

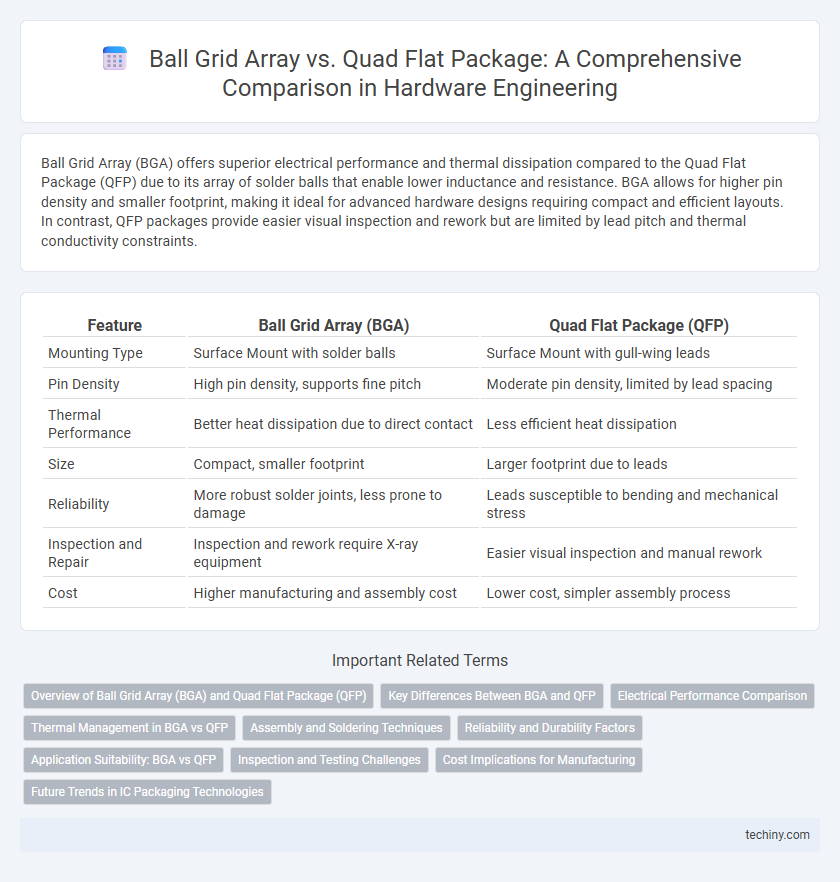

Ball Grid Array vs Quad Flat Package Infographic
