techiny.com Ball Grid Array (BGA) offers superior electrical performance and thermal dissipation compared to Quad Flat Package (QFP) due to its array of solder balls providing shorter signal paths and better heat conduction. BGA is preferred in high-density, high-frequency applications since it supports more input/output pins within a smaller footprint than QFP, which uses leads extending from the package edges. However, QFP simplifies visual inspection and rework processes, making it suitable for lower-density designs and applications with easier assembly requirements.
Table of Comparison
| Feature | Ball Grid Array (BGA) | Quad Flat Package (QFP) |
|---|---|---|
| Mounting Type | Surface-mount with solder balls on underside | Surface-mount with leads extending from all four sides |
| Pin Count | High density, supports >1000 pins | Moderate density, typically up to 304 pins |
| Thermal Performance | Superior heat dissipation via solder balls | Less effective thermal conduction through leads |
| Signal Integrity | Lower inductance, better for high-speed signals | Higher inductance, less ideal for high-frequency applications |
| Assembly Complexity | Requires precise reflow soldering and X-ray inspection | Easier visual inspection and rework |
| Package Size | Compact, smaller PCB footprint | Larger, more PCB area needed |
| Cost | Higher manufacturing cost due to complexity | Lower cost, simpler assembly process |
| Typical Use Cases | High-performance CPUs, GPUs, memory modules | Microcontrollers, low-to-mid pin count ICs |
Overview of Ball Grid Array (BGA) and Quad Flat Package (QFP)
Ball Grid Array (BGA) packages utilize an array of solder balls on the underside to provide heightened electrical performance and heat dissipation, enabling higher pin counts and enhanced reliability in compact designs. Quad Flat Package (QFP) features leads extending from all four sides of the package, facilitating easier hand soldering and inspection but limiting the achievable pin density compared to BGA. BGA's superior thermal management and electrical connectivity make it preferable for high-performance applications, whereas QFP suits cost-sensitive and prototyping scenarios due to its simpler assembly process.
Structural Differences Between BGA and QFP
Ball Grid Array (BGA) packages feature an array of solder balls on the underside for electrical connections, allowing for higher pin counts and improved heat dissipation compared to Quad Flat Packages (QFP), which have leads extending from all four sides. BGA's grid layout reduces lead inductance and enhances signal integrity, while QFP's flat leads increase the risk of mechanical stress and solder joint failure. The compact design of BGAs supports better electrical performance and reliability in densely packed hardware applications.
Assembly and Soldering Techniques
Ball Grid Array (BGA) assembly requires precise alignment and reflow soldering, utilizing solder balls on the package's underside to form reliable electrical connections with minimal lead inductance. Quad Flat Package (QFP) uses gull-wing leads soldered onto PCB pads through wave or reflow soldering, demanding careful thermal profiling to avoid lead damage or solder bridging. BGA offers superior thermal performance and reduced parasitic effects, but inspection and rework require X-ray imaging and specialized tools, unlike QFP's more accessible optical inspection and manual repair methods.
Electrical Performance and Signal Integrity
Ball Grid Array (BGA) packages offer superior electrical performance and signal integrity compared to Quad Flat Packages (QFP) due to their shorter interconnects and reduced parasitic inductance and capacitance. The grid of solder balls in BGAs enables lower resistance and inductance paths, minimizing signal distortion and crosstalk at high frequencies. In contrast, QFP leads have longer routing lengths and higher parasitic elements, which can degrade signal quality and limit maximum operating frequencies in high-performance hardware designs.
Thermal Management and Heat Dissipation
Ball Grid Array (BGA) packages offer superior thermal management compared to Quad Flat Package (QFP) due to their direct solder connections to the PCB, which enable efficient heat dissipation through the board. The larger thermal pad area and lower thermal resistance in BGA designs help reduce hotspot formation and enhance overall device reliability. In contrast, QFPs rely on leads for heat dissipation, limiting their ability to manage high power densities effectively.
Size, Density, and Pin Count Comparison
Ball Grid Array (BGA) packages offer higher pin density and smaller footprint compared to Quad Flat Package (QFP), making BGAs suitable for compact and high-performance applications. BGAs achieve enhanced thermal and electrical performance through solder balls arranged in a grid on the package bottom, while QFPs use leads extending from the package sides, limiting maximum pin count and increasing board space usage. The typical pin count for BGAs ranges from 100 to over 1000 pins, surpassing QFPs which generally max out around 304 pins, favoring BGAs for dense interconnect requirements in modern hardware engineering.
Reliability and Mechanical Strength
Ball Grid Array (BGA) packages offer superior mechanical strength and reliability compared to Quad Flat Packages (QFP) due to their evenly distributed solder balls, which reduce stress and improve thermal performance. BGAs exhibit better resistance to thermal cycling and mechanical shock, minimizing solder joint failures common in QFPs with exposed leads. The compact design of BGAs also contributes to enhanced electrical performance and fewer connection defects, making them preferable for high-reliability hardware applications.
Cost Considerations in Manufacturing
Ball Grid Array (BGA) packages typically incur higher manufacturing costs due to the complexity of their assembly process and the need for precise soldering equipment. Quad Flat Package (QFP) designs offer lower production expenses as their simpler leads and surface mount technology reduce handling time and material waste. Cost considerations favor QFP in low to medium volume production, while BGA is preferred for high-performance applications despite increased fabrication investment.
Application Suitability: When to Choose BGA or QFP
Ball Grid Array (BGA) packages excel in high-performance applications requiring superior thermal management and electrical performance, such as advanced microprocessors and high-speed communication devices. Quad Flat Package (QFP) is often preferred for applications demanding ease of inspection and rework, making it suitable for mid-range complexity circuits like consumer electronics and automotive control units. Selecting BGA or QFP depends on the specific needs for signal integrity, space constraints, and manufacturing capabilities.
Industry Trends and Future Outlook
Ball Grid Array (BGA) packages dominate high-performance hardware engineering due to superior thermal dissipation and electrical connectivity, enabling increased pin counts and miniaturization essential for modern electronics. Quad Flat Package (QFP) remains relevant in legacy systems and cost-sensitive applications, but its limitations in signal integrity and scalability render it less favorable as industry trends shift toward complex, densely packed circuit designs. Future outlook highlights BGA evolution with advancements in substrate materials and 3D packaging, supporting higher speed and multifunctional devices critical to AI, 5G, and IoT sectors.

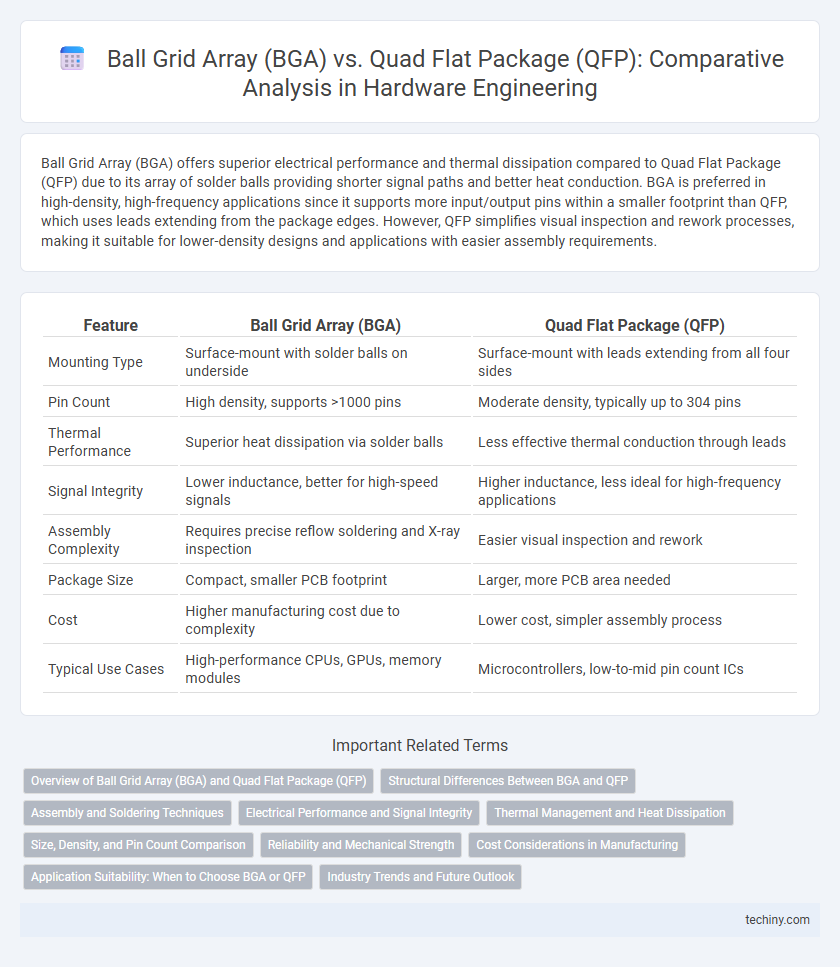

Ball Grid Array (BGA) vs Quad Flat Package (QFP) Infographic
