techiny.com JTAG interfaces provide a powerful method for testing and debugging complex hardware systems by enabling direct access to on-chip registers and memory, essential for boundary-scan testing and fault diagnosis. In-system programming (ISP) offers a streamlined approach to programming microcontrollers and other programmable devices after they are installed on a circuit board, simplifying firmware updates without removing the chip. JTAG is preferred for detailed hardware diagnostics and development environments, while ISP excels in field firmware upgrades and cost-effective production programming.
Table of Comparison
| Feature | JTAG (Joint Test Action Group) | ISP (In-System Programming) |
|---|---|---|
| Purpose | Boundary scan testing, debugging, programming | Programming microcontrollers or flash memory in-system |
| Interface | Standard 4-5 pin interface (TCK, TMS, TDI, TDO, optionally TRST) | Varies by device, often SPI, UART, or proprietary protocols |
| Application | Hardware testing, device programming, firmware debugging | Firmware uploading, field updates, device programming |
| Hardware Requirement | Dedicated JTAG port on PCB | No dedicated port required, uses existing MCU pins |
| Speed | Typically faster with direct access to device | Dependent on communication protocol and MCU capabilities |
| Complexity | Higher complexity, supports advanced debugging | Lower complexity, mainly programming-focused |
| Use Case | Testing boards during manufacturing, in-depth debugging | Firmware updating, bootloader programming |
Introduction to JTAG and ISP
JTAG (Joint Test Action Group) is a standardized interface used for testing, debugging, and programming microcontrollers and integrated circuits at the board level through a serial communication protocol. ISP (In-System Programming) enables programming of microcontrollers directly on the PCB without removing the chip, utilizing protocols such as SPI or UART for firmware updates. Both JTAG and ISP are essential for embedded hardware development, offering different capabilities for device access and control during manufacturing and debugging processes.
Key Differences Between JTAG and ISP
JTAG (Joint Test Action Group) is primarily used for boundary-scan testing and debugging of complex integrated circuits, providing direct access to internal registers via a standardized interface. In-System Programming (ISP) allows programming or reprogramming of microcontrollers and programmable devices directly in the system without removing the chip, typically using protocols like SPI or UART. The key difference lies in functionality: JTAG supports extensive debugging and testing capabilities, while ISP focuses on convenient on-board programming and firmware updates.
Use Cases for JTAG and ISP in Hardware Engineering
JTAG is widely used for boundary-scan testing, debugging, and programming complex integrated circuits during hardware development, enabling access to internal nodes without physical probes. ISP (In-System Programming) is primarily employed for programming microcontrollers and flash memories directly on the assembled PCB, facilitating firmware updates and configuration changes post-manufacturing. While JTAG supports detailed hardware diagnostics, ISP offers a streamlined approach for firmware deployment and maintenance in embedded systems.
Programming Speed and Efficiency Comparison
JTAG interfaces typically offer faster programming speeds due to their direct access to the device's debug port, enabling rapid data transfer and on-the-fly verification. ISP (In-System Programming) often involves slower data rates as it programs memory via serial protocols, which can introduce latency and reduce efficiency. For complex hardware with large memory footprints, JTAG provides higher efficiency by minimizing programming time and supporting advanced debugging features.
Hardware Requirements for JTAG vs ISP
JTAG interfaces require dedicated hardware pins such as TCK, TMS, TDI, and TDO, demanding more complex PCB design and additional connector support, whereas ISP typically utilizes fewer pins, often leveraging existing communication interfaces like UART or SPI. JTAG hardware must ensure proper signal integrity and isolation to support boundary-scan testing and device programming, while ISP hardware emphasizes minimal pin usage for in-system firmware updates. Both methods necessitate compatible debug or programming tools, but JTAG generally requires more elaborate hardware setup compared to the streamlined requirements of ISP.
Debugging Capabilities: JTAG vs ISP
JTAG offers comprehensive debugging capabilities including boundary scan testing, real-time processor control, and access to internal registers, making it ideal for in-depth hardware diagnostics. In-System Programming (ISP) provides limited debugging functions primarily focused on programming and simple verification within the system environment. JTAG's extensive support for step-by-step execution and breakpoints surpasses ISP's basic verification, enabling finer control over complex hardware debugging tasks.
Security Considerations in JTAG and ISP
JTAG interfaces expose critical debug and programming ports that can be exploited if not properly secured, making it essential to implement access controls and disable JTAG in production devices to mitigate unauthorized access risks. ISP (In-System Programming) often provides more restricted programming access but still requires authentication mechanisms to prevent firmware tampering and cloning. Both JTAG and ISP must incorporate hardware-based security features such as fuse blow and encryption to ensure the integrity and confidentiality of embedded systems.
Compatibility and Device Support
JTAG offers broad compatibility with a wide range of devices, including complex microcontrollers, FPGAs, and SoCs, supporting boundary-scan testing and in-system programming. ISP (In-System Programming) is commonly limited to specific microcontrollers and embedded devices, providing easier on-chip firmware updates without requiring additional test equipment. While JTAG suits development and debugging across multiple device architectures, ISP is optimized for firmware deployment within supported device families.
Industry Adoption and Standards
JTAG (Joint Test Action Group) is widely adopted in hardware engineering for boundary-scan testing and debugging, supported by the IEEE 1149.1 standard, which ensures interoperability across various devices and manufacturers. ISP (In-System Programming) enables firmware updates directly on embedded systems without removing chips, becoming a preferred method for production programming and field upgrades in industry sectors such as consumer electronics and automotive. While JTAG excels in structural testing and verification, ISP dominates firmware deployment, with industry standards evolving to integrate both methods for comprehensive device lifecycle management.
Choosing Between JTAG and ISP for Your Project
Choosing between JTAG and ISP for your hardware engineering project depends on the specific requirements of debugging, programming, and testing. JTAG offers advanced capabilities such as boundary-scan testing, real-time debugging, and access to multiple embedded devices, making it ideal for complex system validation and development. ISP provides a simpler and cost-effective method for in-circuit programming and firmware updates, best suited for production environments requiring quick and reliable device reprogramming.

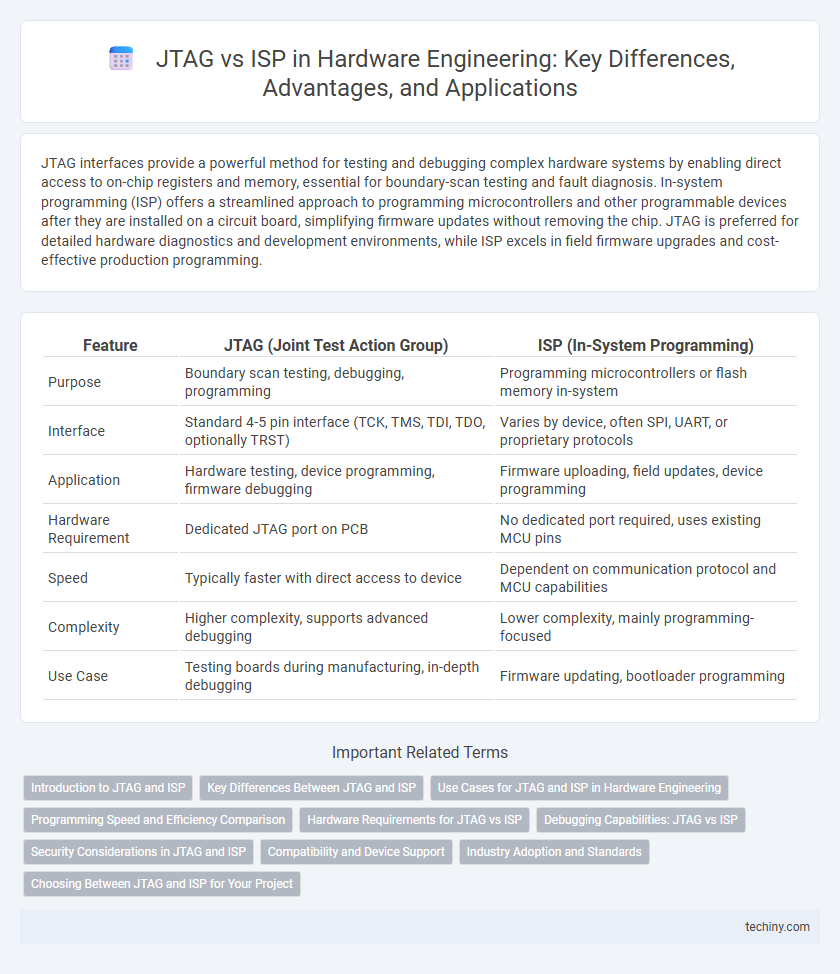

JTAG vs ISP Infographic
