techiny.com Open collector outputs provide flexible interfacing by allowing multiple devices to share a line without contention, relying on external pull-up resistors for proper signal levels. Totem pole outputs feature actively driven high and low states, enabling faster switching and stronger drive capability but require careful management to prevent bus contention. Selecting between open collector and totem pole configurations depends on the need for speed, current drive, and system wiring topology in hardware design.
Table of Comparison
| Feature | Open Collector | Totem Pole |
|---|---|---|
| Output Type | Active Low, Passive High (requires pull-up resistor) | Push-Pull (actively drives both High and Low) |
| Switching Speed | Slower due to external pull-up | Faster switching with direct drive |
| Power Consumption | Lower in idle state | Higher due to continuous drive |
| Wiring Complexity | Allows Wired-AND connections | No wired logic support |
| Signal Integrity | Potential for slow rise times and noise | Clean and sharp signal transitions |
| Typical Use Cases | Open-drain buses, multi-device lines (I2C, Interrupt lines) | Standard logic outputs, fast digital signals |
| Load Requirement | Requires external pull-up resistor | No external components needed |
Introduction to Output Configurations in Digital Circuits
Open collector output configurations allow multiple devices to share a single line by using a transistor to pull the line low, providing wired-AND logic and requiring an external pull-up resistor for high-level output. Totem pole outputs utilize a pair of complementary transistors to actively drive the line both high and low, enabling faster switching speeds and stronger signal drive capability. Choosing between open collector and totem pole depends on factors like load driving requirements, bus arbitration, and the need for wired logic functions in digital circuit designs.
Understanding Open Collector Outputs
Open collector outputs allow multiple devices to share a single communication line by sinking current rather than sourcing it, enabling wired-AND logic configurations. Unlike totem pole outputs that actively drive both high and low states, open collector devices rely on an external pull-up resistor to provide a defined high level. This configuration enhances flexibility in bus systems like I2C or interrupt signaling, reducing the risk of output contention and damage.
Exploring Totem Pole Outputs
Totem pole outputs provide faster switching times and stronger drive capabilities compared to open collector configurations, making them ideal for applications requiring rapid signal transitions. Unlike open collector outputs that rely on external pull-up resistors, totem pole outputs actively drive both high and low states, improving signal integrity and reducing power consumption. This design enables efficient interfacing with TTL and CMOS logic circuits, enhancing overall hardware performance.
Circuit Designs: Schematic Comparisons
Open collector circuits use a transistor with an exposed collector terminal, allowing multiple outputs to be wired together for wired-AND logic, simplifying bus communication designs. Totem pole configurations feature push-pull transistor pairs that actively drive the output high or low, enabling faster switching speeds and stronger signal drive in digital circuits. Schematic comparisons reveal open collector designs often require external pull-up resistors, whereas totem pole circuits integrate these components, impacting board space and power consumption considerations.
Electrical Characteristics: Open Collector vs Totem Pole
Open Collector outputs provide high voltage tolerance and allow multiple devices to share a common bus by sinking current without driving it high, making them ideal for wired-AND logic and level shifting. Totem Pole outputs actively drive the line both high and low, resulting in faster switching speeds and lower output impedance but require careful bus management to avoid contention. Electrical characteristics such as current sinking capacity, output voltage levels, and switching times distinguish Open Collector's high-impedance pull-up design from Totem Pole's push-pull configuration.
Application Scenarios and Use Cases
Open collector outputs are ideal for wired-AND logic implementations, level shifting, and interfacing with multiple devices on a single bus due to their ability to be wired together without conflict. Totem pole outputs provide faster switching speeds and stronger drive capabilities, making them suitable for high-speed digital logic circuits and pushing signals over short distances with low impedance loads. In applications where multiple devices must share a line or where higher voltage compatibility is needed, open collector configurations excel, whereas totem pole outputs are preferred in push-pull driving scenarios requiring rapid transitions.
Advantages and Disadvantages of Each Configuration
Open collector outputs offer the advantage of wired-AND capability and level shifting flexibility, making them ideal for interfacing with different voltage levels and bus structures; however, they require external pull-up resistors which can slow down signal transitions and increase power consumption. Totem pole configurations provide faster switching speeds and lower power dissipation due to their push-pull transistor arrangement, enabling direct drive of loads without additional components, but they lack the ability to safely share lines as multiple totem poles can cause contention and potential damage. Selection between open collector and totem pole depends on system requirements for speed, bus arbitration, and signal integrity.
Integration with Logic Families
Open collector outputs integrate seamlessly with wired-AND configurations in Transistor-Transistor Logic (TTL) and are compatible with various logic families due to their open-drain design, allowing multiple outputs to share a single line without conflict. Totem pole outputs, prevalent in TTL and CMOS, provide faster switching speeds and active drive for both high and low states but may require careful voltage level matching when interfacing between different logic families to prevent damage or improper logic levels. The choice depends on system requirements for speed, compatibility, and the need for wired logic functions within mixed-signal environments.
Best Practices for Hardware Design Selection
Open collector outputs excel in wired-AND configurations and allow multiple devices to share a line without damage, ideal for bus-oriented designs requiring simple fault detection. Totem pole outputs provide faster switching speeds and stronger drive capability, making them suitable for high-speed digital circuits where signal integrity is critical. Selecting between open collector and totem pole should consider load requirements, noise margins, circuit complexity, and whether bus sharing or speed is the priority in the hardware design.
Summary and Recommendations
Open collector outputs allow multiple devices to share a single line for wired-AND logic, providing flexibility in bus systems but require external pull-up resistors and have slower switching speeds. Totem pole outputs offer faster switching and stronger drive capability by actively driving both high and low states, making them ideal for high-speed logic circuits but limiting multi-device line sharing. For hardware engineering applications requiring bus arbitration or multi-device communication, open collector configurations are recommended, while totem pole outputs are preferred for performance-critical signal driving.

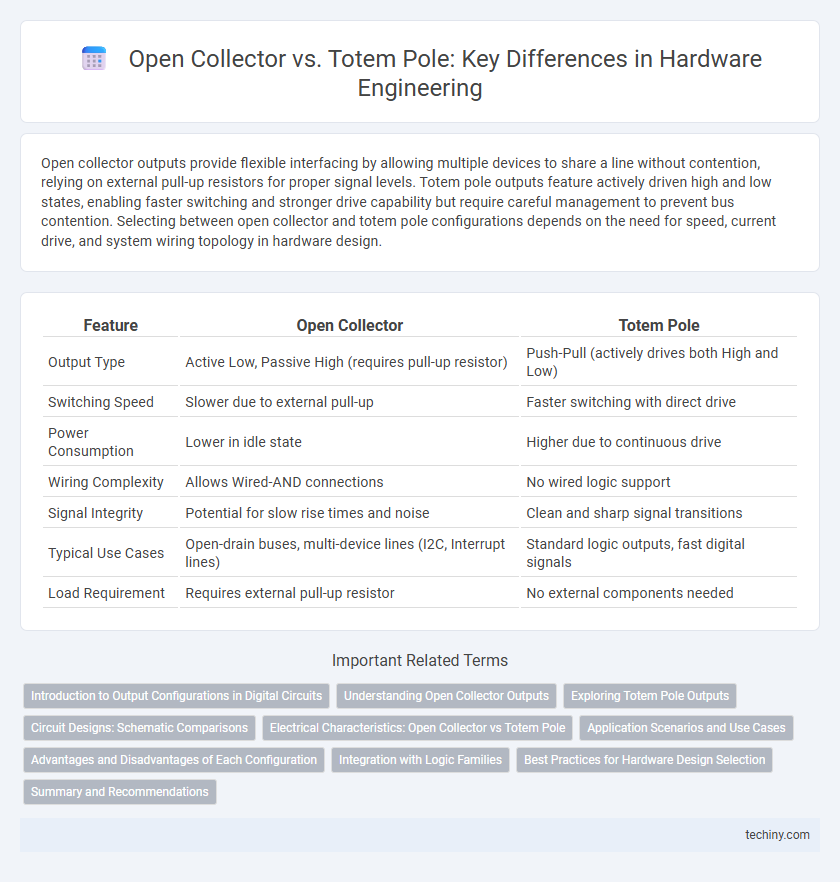

Open Collector vs Totem Pole Infographic
