techiny.com RS-232 and RS-485 are serial communication standards commonly used in hardware engineering for data transmission. RS-232 supports point-to-point connections with shorter cable lengths and lower noise immunity, while RS-485 enables multi-point communication over longer distances with higher noise resistance and differential signaling. Choosing between RS-232 and RS-485 depends on the application requirements for distance, network topology, and environmental conditions.
Table of Comparison
| Feature | RS-232 | RS-485 |
|---|---|---|
| Communication Type | Point-to-Point | Multi-Point |
| Maximum Nodes | 1 Transmitter, 1 Receiver | Up to 32 Transmitters/Receivers |
| Voltage Levels | +-3V to +-15V | Balanced Differential (typically +-1.5V) |
| Maximum Cable Length | 15 meters (50 feet) | 1200 meters (4000 feet) |
| Data Rate | Up to 20 kbps (typical) | Up to 10 Mbps (short distance) |
| Noise Immunity | Low | High (Differential Signaling) |
| Connection Type | Single-Ended | Differential |
| Use Cases | Short distance serial communication, PCs, Modems | Industrial networks, long-distance communications, multi-drop |
| Standard | EIA-232 | EIA-485 |
Introduction to RS-232 and RS-485
RS-232 is a standard for serial communication transmission of data using single-ended signaling, commonly used for short-distance, point-to-point connections with a maximum length of 15 meters and data rates up to 20 kbps. RS-485, in contrast, employs differential signaling for balanced transmission, supporting multi-point communication over longer distances up to 1,200 meters and higher data rates reaching 10 Mbps. This fundamental difference allows RS-485 to provide improved noise immunity and multi-device networking capabilities compared to the simpler, lower-speed RS-232 standard.
Historical Evolution of Serial Communication Standards
RS-232, developed in the 1960s, established the foundation for serial communication with its single-ended signaling and widespread use in early computer peripherals and telecommunications. RS-485, introduced in the late 1980s, evolved to overcome RS-232's distance and noise limitations by implementing differential signaling and supporting multi-point networks, making it suitable for industrial automation and long-distance communication. This historical progression reflects the shift from short-range, point-to-point connections toward robust, noise-resistant, and scalable serial communication protocols in hardware engineering.
Technical Specifications: RS-232 vs RS-485
RS-232 supports point-to-point communication with voltage levels ranging from -15V to +15V, typically operating over distances up to 15 meters at 20 kbps. RS-485 utilizes differential signaling with voltage levels between -7V and +12V, enabling multi-point communication across distances up to 1,200 meters at data rates of 10 Mbps. The higher noise immunity and longer cable length support of RS-485 make it suitable for industrial applications requiring robust, long-distance serial communication.
Communication Modes: Point-to-Point vs Multi-Drop
RS-232 supports point-to-point communication, ideal for direct device-to-device connections with limited distance and one transmitter and one receiver. RS-485 enables multi-drop communication, allowing multiple devices on the same bus, supporting up to 32 nodes or more with differential signaling for improved noise immunity. This multi-drop capability makes RS-485 suitable for industrial environments requiring reliable data exchange over longer distances and complex network topologies.
Electrical Characteristics and Signal Integrity
RS-485 offers differential signaling with balanced lines, reducing electromagnetic interference and improving signal integrity over long distances compared to the single-ended RS-232 standard. RS-232 operates at voltage levels of +-3 to +-15 volts, while RS-485 uses lower voltage levels typically around +-1.5 volts, allowing for higher noise immunity and better tolerance to voltage drops. The differential mode of RS-485 supports multi-drop configurations and ensures stable communication in electrically noisy environments, making it preferred for industrial hardware systems requiring reliable data transmission.
Data Transmission Speed and Range Comparison
RS-232 supports data transmission speeds up to 115.2 kbps over short distances typically less than 15 meters, making it suitable for low-speed, point-to-point communication. RS-485 enables much higher data rates, reaching 10 Mbps, and supports communication over distances up to 1200 meters by using differential signaling for noise immunity. The extended range and speed of RS-485 make it ideal for industrial environments requiring long-distance, multi-drop data transmission.
Noise Immunity and Error Handling
RS-485 offers superior noise immunity compared to RS-232 due to its differential signaling, which significantly reduces susceptibility to electromagnetic interference and signal degradation over long distances. RS-485 supports multi-point communication with robust error detection mechanisms like CRC (Cyclic Redundancy Check), enhancing reliable data transmission in industrial environments. In contrast, RS-232's single-ended signaling is more prone to noise, limiting its error handling capabilities and effective operational range.
Hardware Implementation Differences
RS-232 hardware implementation utilizes single-ended signaling with one transmitter and one receiver per channel, limiting communication distance to approximately 15 meters and speed to 20 kbps. In contrast, RS-485 employs differential signaling with multi-drop capabilities, enabling up to 32 devices on a single bus and communication distances up to 1,200 meters at speeds up to 10 Mbps. RS-232 requires individual dedicated serial ports while RS-485 leverages twisted-pair cabling and termination resistors for noise immunity and signal integrity in industrial environments.
Common Applications and Use Cases
RS-232 is commonly used for short-distance communication in point-to-point connections such as serial ports on computers, industrial equipment, and peripherals like modems and printers. RS-485 excels in multi-point systems and long-distance communication, often deployed in industrial automation, building management systems, and remote sensor networks due to its noise immunity and differential signaling. Both standards are critical for serial data transmission but are chosen based on distance, wiring complexity, and network topology requirements.
Choosing the Right Standard for Your Project
RS-232 offers straightforward point-to-point communication ideal for short-distance, low-speed serial data transmissions, while RS-485 supports multi-point systems with longer cable lengths and higher noise immunity. Selecting RS-485 is optimal for industrial environments requiring robust, long-distance networking with multiple devices, whereas RS-232 suffices for simpler, single-device setups. Evaluating factors such as data rate, distance, and network complexity ensures the correct serial communication standard supports project reliability and scalability.

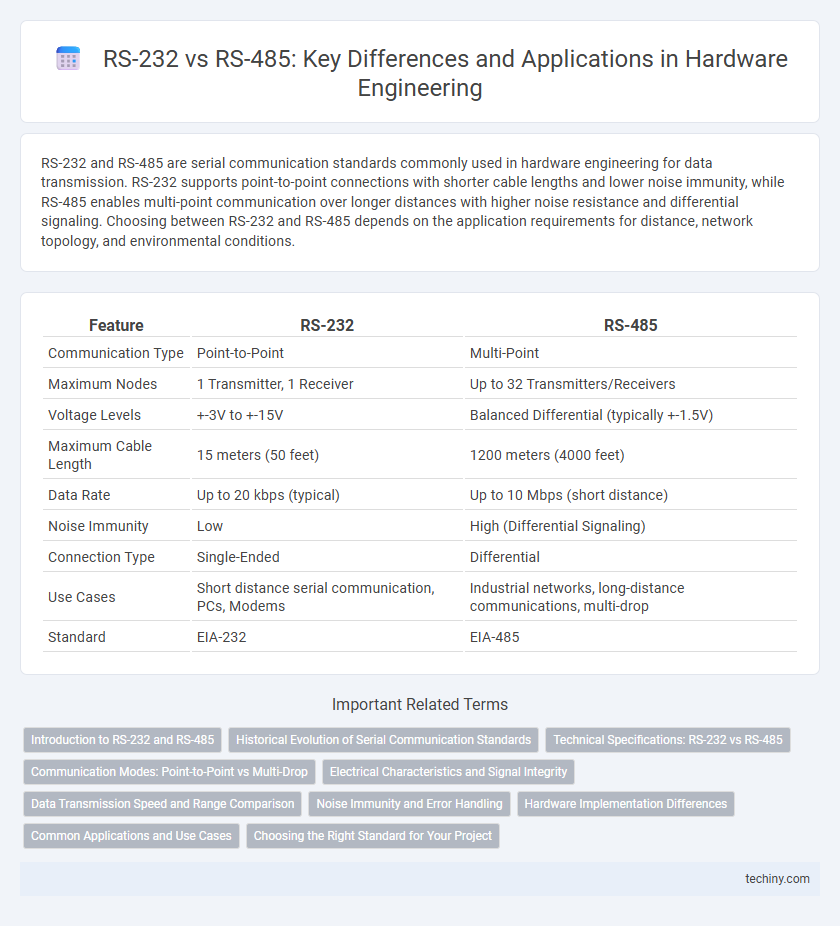

RS-232 vs RS-485 Infographic
