techiny.com Solder flux is a chemical agent used to remove oxides and impurities from metal surfaces, ensuring better solder joint quality and electrical conductivity. Solder paste combines solder powder with flux, enabling precise, efficient soldering in surface mount technology by holding components in place before reflow. Understanding the differences between solder flux and solder paste is essential for optimizing the soldering process and achieving reliable hardware assembly.
Table of Comparison
| Feature | Solder Flux | Solder Paste |
|---|---|---|
| Definition | Chemical agent that cleans and prevents oxidation during soldering | Mixture of solder powder and flux used for surface mount soldering |
| Primary Use | Improves solder joint quality by cleaning metal surfaces | Provides solder and flux simultaneously for PCB assembly |
| Form | Liquid, gel, or paste | Thick paste containing fine solder particles |
| Application Method | Brushed, sprayed, or dabbed on surfaces | Stencil printed or dispensed onto pads |
| Typical Components | Electronic leads, wires, and connectors | Surface mount devices (SMDs) on PCBs |
| Activation | Activated by heat during soldering | Activated during reflow soldering process |
| Residue | May leave residue; flux type determines cleaning needs | Usually requires cleaning unless no-clean flux is used |
| Advantages | Enhances solder flow and bond strength | Combines solder and flux, streamlining assembly |
| Limitations | Separate solder required; handling can be messy | Limited shelf life and storage sensitivity |
Introduction to Solder Flux and Solder Paste
Solder flux is a chemical agent used to remove oxidation and improve the wetting of solder on metal surfaces during the soldering process, enhancing electrical connectivity and mechanical strength. Solder paste consists of a mixture of solder powder and flux, designed for surface-mount technology (SMT) to facilitate precise solder deposition and component attachment on printed circuit boards (PCBs). Both materials are essential in hardware engineering, optimizing solder joint quality and reliability in electronic assembly.
Composition and Properties of Solder Flux
Solder flux primarily consists of rosin or synthetic resin combined with activators and solvents, designed to remove oxides and improve metal wetting during soldering. Its properties include high thermal stability, low residue formation, and the ability to facilitate better joint reliability by preventing oxidation. Unlike solder paste, which contains solder powder suspended in flux, solder flux remains primarily a chemical agent essential for cleaning and surface preparation in hardware engineering.
Composition and Properties of Solder Paste
Solder paste consists of a mixture of finely ground solder alloy particles suspended in a flux medium, typically containing rosin, activators, and solvents that enhance solderability and metal wetting during reflow. Its composition enables precise application for surface-mount technology (SMT) by maintaining tackiness and promoting strong mechanical and electrical connections. The flux within solder paste removes oxides and prevents oxidation, ensuring consistent solder joints with high reliability in electronic assemblies.
Key Functions in the Soldering Process
Solder flux removes oxides and impurities from metal surfaces, ensuring better wetting and strong metallurgical bonds during soldering. Solder paste combines powdered solder and flux, providing both the adhesive medium and necessary flux for automated surface mount assembly. The key function of flux is to chemically clean and prepare surfaces, while solder paste delivers soldering material and flux in a precise, easy-to-apply form for reliable joint formation.
Types of Solder Flux: Uses and Applications
Types of solder flux include rosin-based, water-soluble, and no-clean fluxes, each tailored for specific applications in hardware engineering. Rosin-based flux is ideal for traditional electronics assembly due to its effective oxidation removal and dielectric properties. Water-soluble flux offers superior cleaning but requires thorough rinsing, making it suitable for high-reliability circuits, while no-clean flux minimizes residue, preferred in automated PCB soldering processes.
Types of Solder Paste: Selection Criteria
Solder paste types include no-clean, rosin-based, and water-soluble, each selected based on flux activity, residue cleanup requirements, and compatibility with PCB components. High-activity flux paste suits oxidized surfaces, while low-activity is preferred for sensitive electronics to minimize corrosion. Selection criteria prioritize reflow temperature profiles, residue type, and the specific solder alloy to ensure optimal joint reliability and solderability.
Advantages and Limitations of Solder Flux
Solder flux offers superior cleaning and oxidation removal properties, which improve solder joint reliability by ensuring better wetting and adhesion on metal surfaces. Its liquid form allows easy penetration into tight spaces, making it ideal for precision soldering and rework applications. However, solder flux can be messier and may require thorough post-solder cleaning to prevent corrosion or electrical shorts, unlike solder paste, which combines flux and solder particles for streamlined surface-mount device assembly.
Advantages and Limitations of Solder Paste
Solder paste offers precise component placement and excellent solder joint reliability due to its pre-mixed alloy and flux composition, making it ideal for surface-mount technology (SMT) assembly. Its high viscosity ensures stable deposition on pads, reducing the risk of solder bridges during reflow soldering, but it requires careful storage and has a limited shelf life, often needing refrigeration to maintain its properties. Limitations include sensitivity to oxidation and potential clogging of stencil apertures, which can impact print quality and overall manufacturing yield.
Comparative Analysis: Solder Flux vs Solder Paste
Solder flux and solder paste serve distinct but complementary roles in hardware engineering, with flux primarily acting as a chemical agent to remove oxides and improve metal wettability, while solder paste combines flux with powdered solder for precise component placement and solder joint formation. Solder flux is essential for preparing surfaces and ensuring a strong bond, whereas solder paste facilitates automated assembly processes by providing both the solder and flux in a single application. Selecting between solder flux and solder paste depends on the manufacturing process, with flux suited for manual soldering and repair tasks, and paste optimized for high-volume, surface-mount technology (SMT) assembly lines.
Best Practices for Choosing and Using Soldering Materials
Solder flux enhances the wetting process by removing oxidation and contaminants on metal surfaces, ensuring strong solder joints, while solder paste combines flux with solder powder for surface mount technology (SMT) applications. Selecting the appropriate solder flux type--rosin-based, water-soluble, or no-clean--depends on the cleaning process and electrical requirements of the hardware design. Best practices include applying solder flux sparingly to avoid residue and choosing solder paste with suitable metal powder particle size and flux composition to optimize reflow soldering quality and reliability.

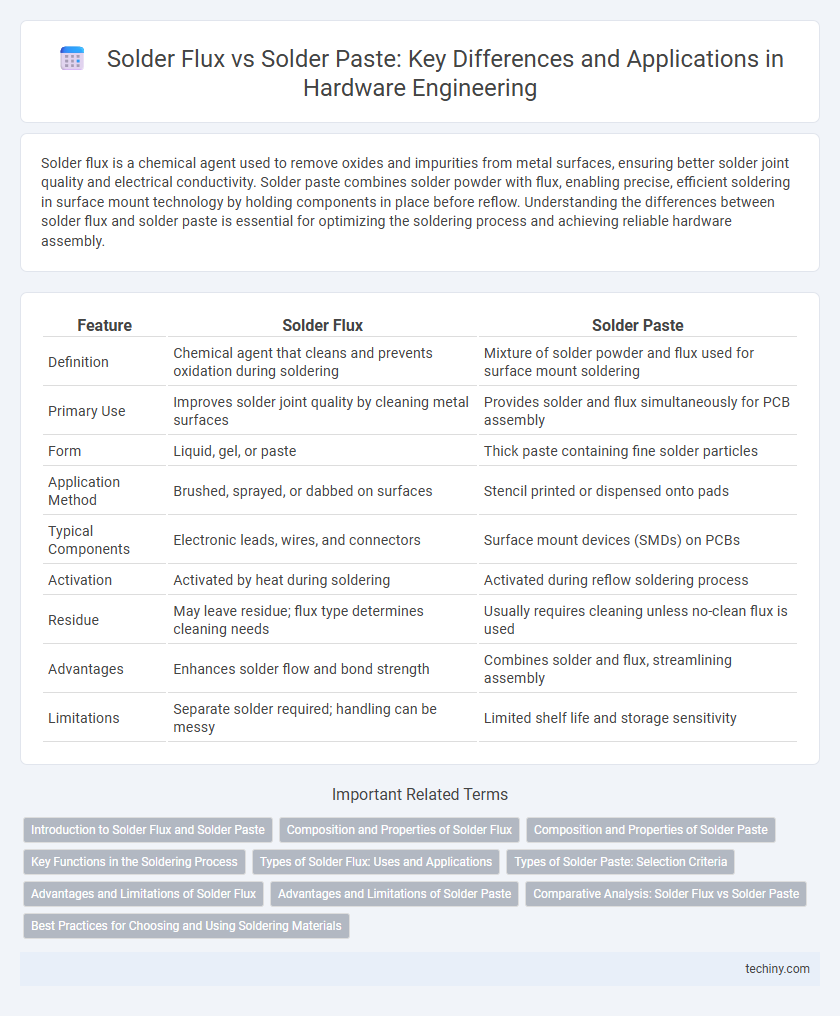

Solder flux vs Solder paste Infographic
