techiny.com UART is a hardware communication protocol used for asynchronous serial communication between devices, transmitting data bit by bit without a defined voltage standard. RS-232 is a physical interface standard that defines the voltage levels, signal timing, and connector types for serial communication, often using UART as its underlying data transfer method. Understanding the distinction between UART's protocol layer and RS-232's electrical specifications is essential for designing robust embedded systems and hardware interfaces.
Table of Comparison
| Feature | UART | RS-232 |
|---|---|---|
| Definition | Universal Asynchronous Receiver/Transmitter; a serial communication protocol | RS-232; a standard for serial communication using voltage levels |
| Signal Type | TTL voltage levels (0 to 5V or 3.3V) | +-3 to +-15 volts (inverted logic) |
| Communication | Point-to-point, full duplex | Point-to-point, full duplex |
| Max Distance | Up to 15 meters (typically shorter) | Up to 15 meters (recommended), can reach 50 feet or more |
| Data Rate | Up to 1 Mbps (typical range 115 kbps) | Typically up to 20 kbps, can vary |
| Hardware | Integrated in microcontrollers, minimal external components | Requires line drivers and receivers for voltage level translation |
| Application | Microcontroller communication, embedded systems | PC serial ports, industrial devices |
| Connector | No standard; often direct PCB connection | DB9 or DB25 serial connectors |
Introduction to UART and RS-232
UART (Universal Asynchronous Receiver/Transmitter) is a hardware communication protocol that enables serial data transmission between devices by converting parallel data into serial form and vice versa. RS-232 is a standardized serial communication interface that defines electrical signal levels and timing for data exchange, commonly used for connecting computers and peripheral devices. While UART defines the data format and protocol, RS-232 specifies voltage levels and connector types, making them complementary components in serial communication systems.
Historical Background and Evolution
UART technology originated in the early 1960s as a method for serial communication between computers and peripheral devices, providing a simple asynchronous data transfer protocol. RS-232, developed in 1962 by the Electronic Industries Association (EIA), standardized the electrical characteristics and signal voltages for serial communication, enabling interoperability across diverse hardware systems. Over time, UART evolved into an integrated circuit interface, while RS-232 remained a widely adopted standard for serial ports despite the emergence of newer communication protocols.
Fundamental Principles of UART and RS-232
UART (Universal Asynchronous Receiver/Transmitter) operates by converting parallel data from a microcontroller into serial form for communication, employing start bits, stop bits, and parity bits to maintain data integrity without requiring a clock signal. RS-232 is a physical layer standard defining voltage levels and signal timing for serial communication, specifying voltage ranges between +-3 to +-15 volts for logical high and low states, thereby enabling reliable data transmission over longer distances. UART focuses on data framing and asynchronous serial communication protocols, whereas RS-232 standardizes electrical signaling and connector interfaces for serial ports.
Signal Standards and Voltage Levels
UART (Universal Asynchronous Receiver/Transmitter) is a communication protocol that defines the method for asynchronous serial communication but does not specify voltage levels or physical signaling standards. RS-232 is a hardware standard for serial communication that specifies voltage levels ranging from +3V to +15V for logical '0' and -3V to -15V for logical '1', ensuring signal integrity over longer distances. Unlike UART's TTL logic levels (0V and 5V or 3.3V), RS-232 uses higher voltages and inverted logic levels, requiring level shifting when interfaced directly with UART-based microcontrollers.
Data Transmission Methods and Protocols
UART (Universal Asynchronous Receiver/Transmitter) transmits data asynchronously using start and stop bits to frame each byte, enabling simple serial communication without a shared clock signal. RS-232 is a physical layer standard that defines voltage levels, signal timing, and connector types, often utilizing UART protocols for data framing but with specific electrical characteristics for long-distance and noise-resilient transmission. While UART handles the data encoding and decoding process, RS-232 ensures robust signal integrity and interoperability between devices by enforcing strict voltage level thresholds and pin configurations.
Hardware Implementation and Compatibility
UART (Universal Asynchronous Receiver/Transmitter) is a hardware communication protocol used for serial data transmission, implemented directly within microcontrollers or as standalone ICs, providing asynchronous, full-duplex communication with simple wiring requirements. RS-232, a standard for serial communication, defines electrical characteristics and signal levels typically requiring voltage level translators like MAX232 for compatibility with UART logic levels, limiting its direct integration with modern low-voltage digital circuits. Hardware implementation of UART is highly compatible with microcontroller systems for embedded applications, while RS-232 remains relevant for legacy systems and external serial devices, necessitating appropriate level shifting and connectors to ensure proper hardware interfacing.
Typical Applications and Use Cases
UART interfaces are widely used in embedded systems for microcontroller communication, allowing simple serial data transmission between devices such as sensors and GPS modules. RS-232, featuring defined voltage levels and standardized connectors, is prevalent in industrial automation, legacy computer peripherals, and point-of-sale terminals for reliable long-distance serial communication. While UART suits short-distance, low-speed data exchange within compact electronics, RS-232 excels in robust, noise-resistant applications requiring standardized serial data links.
Advantages and Limitations
UART provides a simple, low-cost method for serial communication with direct microcontroller interfacing and supports full-duplex data transfer, making it ideal for embedded systems. RS-232 offers standardized voltage levels and longer communication distances up to 15 meters, enhancing compatibility with older and industrial devices but requires additional level shifting circuitry. Limitations of UART include restricted cable length and susceptibility to noise, while RS-232 faces challenges such as larger connector size, slower data rates compared to modern standards, and power inefficiency due to higher voltage swings.
Troubleshooting and Common Issues
UART communication often faces troubleshooting challenges such as incorrect baud rate settings, mismatched voltage levels, and loose connections leading to data loss or corruption. RS-232 issues typically involve signal level incompatibilities, cable length limitations, and improper grounding, which cause noise and unreliable data transmission. Diagnosing these problems requires verifying hardware configurations, ensuring proper voltage standards (TTL for UART, +-12V for RS-232), and using suitable diagnostic tools like oscilloscopes or protocol analyzers.
Future Trends in Serial Communication
Future trends in serial communication focus on enhancing UART and RS-232 interfaces through higher data rates and improved integration with modern digital systems. Innovations include adoption of low-power UART modules with built-in error correction and the evolution of RS-232 standards toward more robust, noise-resistant signaling for industrial automation. Emerging technologies aim to blend traditional serial protocols with wireless and IoT frameworks, ensuring legacy compatibility while optimizing for speed and reliability in embedded hardware design.

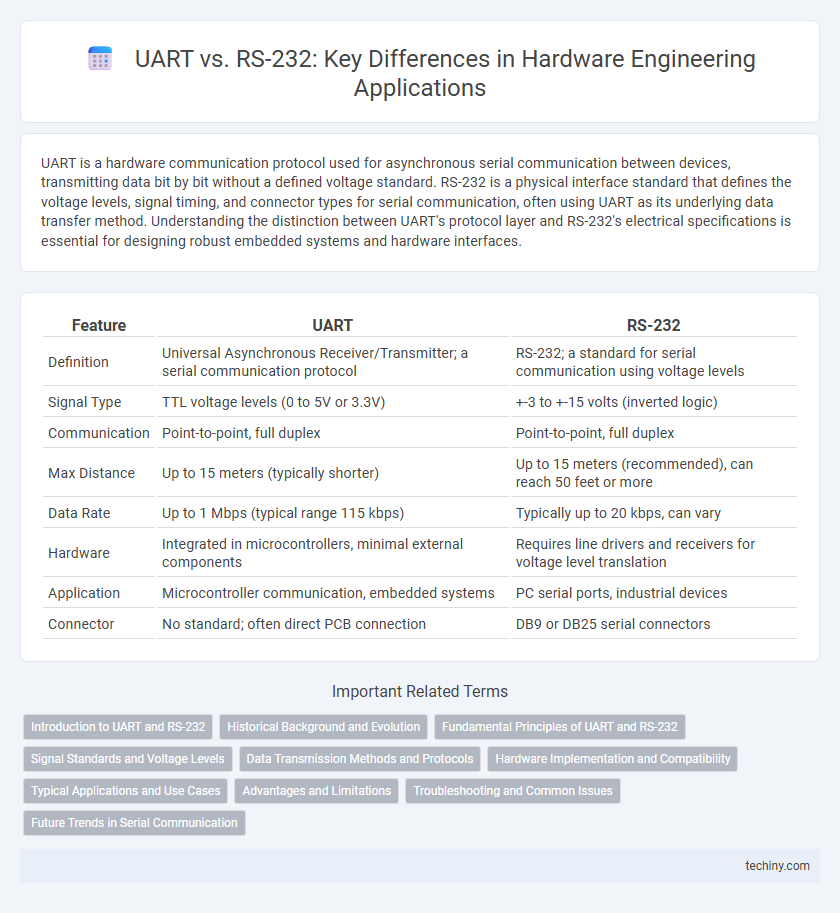

UART vs RS-232 Infographic
