techiny.com High-side switches control the load connection to the positive voltage supply, providing better protection against short circuits and easier integration with microcontroller inputs. Low-side switches connect the load to ground, often offering simpler implementation but less protection and potential ground noise issues. Choosing between high-side and low-side switches depends on the specific application requirements, including load type, voltage levels, and safety considerations.
Table of Comparison
| Feature | High-Side Switch | Low-Side Switch |
|---|---|---|
| Switching Position | Between power supply and load | Between load and ground |
| Load Reference Voltage | Load connected to ground (stable reference) | Load connected to power supply (floating reference) |
| Safety | Higher safety; prevents load energizing if switch fails | Lower safety; load can remain energized if switch fails |
| Control Complexity | More complex driver circuitry required | Simple driver; easier control |
| Common Applications | LED arrays, automotive circuits, high-side load control | Relays, low-current switching, ground switching |
| Typical Components | P-Channel MOSFET, PNP transistor, specialized ICs | N-Channel MOSFET, NPN transistor, low-side switches |
| Switching Losses | Higher losses due to P-channel devices or complex design | Lower losses with N-channel devices |
| Load Voltage Stability | Stable; load voltage referenced to ground | Less stable; load voltage swings with switch operation |
Introduction to High-side and Low-side Switching
High-side and low-side switching are fundamental techniques in hardware engineering used to control power delivery to a load by placing the switch either between the power supply and the load (high-side) or between the load and ground (low-side). High-side switches connect the load to the positive supply voltage, allowing control while maintaining a common ground reference, which is essential for sensors and logic circuits operating at ground potential. Low-side switches connect the load to ground, simplifying control circuitry but can introduce challenges in sensing and safety due to the switching of the return path.
Basic Principles of Switching in Hardware Engineering
High-side switches connect the load to the positive supply voltage, enabling current flow when the switch is on, which is crucial for controlling power to devices while maintaining a common ground reference. Low-side switches connect the load to ground, allowing control by switching the return path, often simplifying control circuitry but risking ground reference variations. Understanding these basic principles of switching informs effective design choices in hardware engineering for power management and circuit protection.
High-side Switch: Definition and Operation
A high-side switch is a switching device placed between the power supply and the load, controlling the connection to the positive voltage rail. It operates by switching the load's supply line to the voltage source, ensuring the load is connected to the positive voltage when the switch is closed. This type of switch offers better protection against ground faults and is commonly used in automotive and industrial applications for safely managing power delivery.
Low-side Switch: Definition and Operation
A low-side switch is a semiconductor device or component connected between the load and ground, controlling current flow by switching the ground path. It operates by turning on or off the connection to the negative side of the power supply, allowing or interrupting current through the load. Common low-side switching devices include NPN transistors and N-channel MOSFETs, valued for their simplicity and ease of drive.
Key Differences Between High-side and Low-side Switches
High-side switches control the power supply line by connecting the load to the positive voltage rail, while low-side switches operate by grounding the load, completing the circuit at the negative terminal. High-side switching is typically used for safety reasons and to ensure the load is disconnected from the power source when off, whereas low-side switching is simpler and more cost-effective but can leave the load connected to the voltage rail. The choice between high-side and low-side switches depends on application requirements such as load type, voltage levels, and control logic integration.
Circuit Design Considerations for High-side Switching
High-side switching requires careful consideration of load voltage levels and the need for a voltage source higher than the load to properly drive the switch, often using P-channel MOSFETs or high-side drivers. Thermal management is critical since the high-side switch is closer to the supply voltage and may dissipate more power under load conditions. Proper gate drive circuitry ensures fast switching speeds and minimizes losses in high-side configurations, improving overall circuit efficiency and reliability.
Circuit Design Considerations for Low-side Switching
Low-side switching places the switch between the load and ground, allowing simpler driver circuitry and easier fault detection due to referencing common ground. This design impacts circuit layout by requiring careful management of ground potential shifts, which can introduce noise and affect signal integrity. Ensuring proper heat dissipation and selecting components with adequate current ratings are critical for reliable operation in low-side switching configurations.
Applications of High-side and Low-side Switches
High-side switches are commonly used in automotive and industrial applications where controlling the positive voltage supply to a load is essential, ensuring safety and reducing the risk of short circuits. Low-side switches are preferred in applications such as LED lighting and motor control, where switching the ground path simplifies wiring and component design. Both types of switches optimize power management and load protection based on the circuit topology and operational requirements.
Advantages and Disadvantages of Each Switching Method
High-side switches connect the load to the positive supply, enabling safer control of devices by preventing ground interruptions and allowing easier integration with high voltage circuits, but they require more complex driver circuits and higher voltage transistor ratings. Low-side switches connect the load to ground, offering simpler, cost-effective designs and easier transistor control but can cause grounding issues and potential interference in sensitive circuits. Choosing between high-side and low-side switching depends on factors such as circuit complexity, voltage levels, load safety requirements, and electromagnetic compatibility.
Choosing the Right Switch for Your Hardware Design
High-side switches connect the load to the positive supply voltage, providing better protection against short circuits and ensuring safer operation in automotive and industrial applications. Low-side switches connect the load to ground, offering simpler control and easier implementation but may introduce a higher risk of ground faults. Selecting the right switch depends on the application's safety requirements, load type, and control complexity within the hardware design framework.

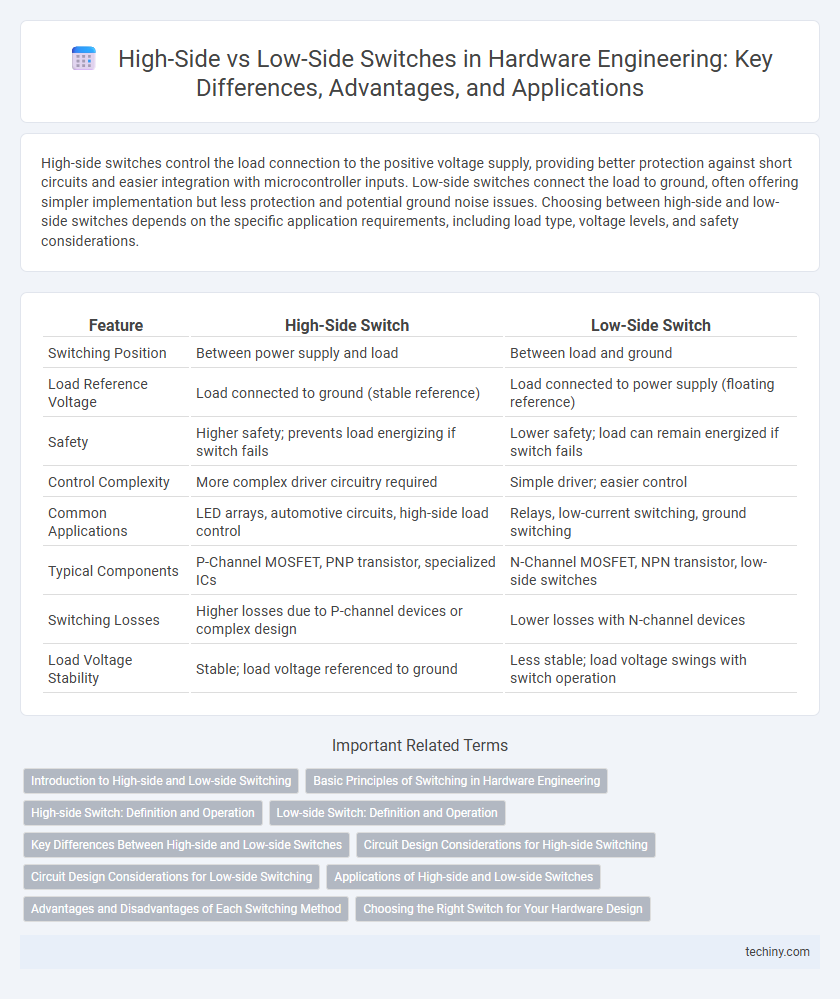

High-side switch vs Low-side switch Infographic
