techiny.com Galvanic isolation provides electrical separation by physically isolating circuits to prevent current flow, enhancing safety and reducing noise interference in sensitive hardware systems. Optical isolation uses light signals within optocouplers to transmit data between circuits without direct electrical connection, ensuring high-frequency signal integrity and immunity to electromagnetic interference. Both methods are crucial in hardware engineering for protecting components and maintaining system reliability in different operational scenarios.
Table of Comparison
| Feature | Galvanic Isolation | Optical Isolation |
|---|---|---|
| Principle | Electrical separation by transformer, capacitor, or barrier | Signal transfer using light via optocouplers |
| Isolation Voltage | Typically up to 5 kV or higher | Usually up to 3.75 kV |
| Signal Type | Analog and digital signals | Mostly digital signals |
| Speed | High-speed capable depending on technology | Limited by LED-photodetector response time |
| Size & Integration | Larger components, complex integration | Compact, easy integration in ICs |
| Power Consumption | Can be higher due to transformer or capacitive elements | Low power LED operation |
| Applications | Industrial equipment, medical devices, power supplies | Microcontrollers, communication interfaces, digital isolators |
| Advantages | High voltage tolerance, supports wide signal types | Compact, low noise, low power |
| Disadvantages | Bulkier, complex, higher cost | Lower voltage rating, slower speed |
Introduction to Isolation Techniques in Hardware Engineering
Galvanic isolation and optical isolation are essential techniques in hardware engineering to prevent direct electrical connection between circuits, ensuring signal integrity and safety. Galvanic isolation employs transformers, capacitors, or optocouplers to block DC current while allowing signal transfer, effectively reducing noise and ground loop issues. Optical isolation uses LEDs and photodetectors to transmit signals via light, providing high-voltage isolation and immunity to electromagnetic interference in sensitive electronic systems.
Fundamentals of Galvanic Isolation
Galvanic isolation fundamentally prevents direct electrical conduction between circuits by using components such as transformers, capacitors, or optocouplers to block DC current while allowing signal or power transfer. This isolation technique is critical for protecting sensitive electronics from high voltages and noise, enhancing safety and signal integrity in hardware systems. Unlike optical isolation, which relies specifically on light to transmit signals across an isolation barrier, galvanic isolation can utilize various physical phenomena to achieve electrical separation.
Principles of Optical Isolation
Optical isolation operates on the principle of using light to transmit electrical signals between two isolated circuits, ensuring no direct electrical connection and preventing ground loops. It employs components such as LEDs and photodetectors to convert electrical signals into light and back, providing high common-mode voltage rejection and noise immunity. This method is crucial in protecting sensitive components in power supplies, signal processing, and communication interfaces within hardware engineering.
Signal Integrity in Galvanic vs Optical Isolation
Galvanic isolation enhances signal integrity by eliminating direct electrical connections, thereby reducing noise, ground loops, and common-mode interference in hardware engineering applications. Optical isolation achieves signal transfer through light, offering high immunity to electromagnetic interference but may introduce signal delay and limited bandwidth compared to galvanic methods. Selecting between galvanic and optical isolation depends on balancing isolation voltage requirements, signal fidelity, and response time critical to maintaining optimal signal integrity in complex electronic systems.
Common Applications of Galvanic Isolation
Galvanic isolation is commonly used in medical devices to protect patients and equipment by preventing electrical shock and interference between circuits. It is critical in industrial automation for isolating control systems from high-voltage machinery, ensuring signal integrity and operator safety. Power supplies, data acquisition systems, and communication interfaces also frequently employ galvanic isolation to eliminate ground loops and reduce noise in sensitive measurements.
Typical Uses for Optical Isolation in Hardware
Optical isolation is commonly used in hardware systems to provide electrical isolation between high-voltage circuits and sensitive low-voltage components, ensuring signal integrity and protecting against voltage spikes. Typical applications include microcontroller interfaces, industrial automation systems, and communication devices where noise immunity and safety are critical. Optical isolators enable reliable data transfer in environments with high electromagnetic interference by converting electrical signals into light and back, maintaining system performance and longevity.
Comparative Analysis: Performance and Reliability
Galvanic isolation provides superior noise immunity and higher voltage isolation levels essential for high-power hardware systems, while optical isolation excels in fast signal transmission and compact design suitable for digital circuits. Reliability in galvanic isolation relies on robust insulation materials and physical separation, making it advantageous in harsh industrial environments, whereas optical isolation's reliability depends on LED and photodetector lifespan, with susceptibility to aging and temperature variations. Performance trade-offs involve galvanic isolation's slower response time compared to the high-speed capability of optical isolators, influencing the choice based on application-specific requirements such as frequency response and environmental conditions.
Safety Standards and Regulatory Compliance
Galvanic isolation provides safety compliance by physically separating electrical circuits to prevent direct current flow, meeting stringent standards like IEC 61010 for electrical safety. Optical isolation uses light signals to transfer data without conductive paths, ensuring compliance with regulatory frameworks such as UL 1577 and IEC 60747-5-2 for insulation and safety in electronic devices. Both methods enhance user protection and system integrity, aligning with EMC and high-voltage safety requirements in hardware engineering.
Key Considerations for Selecting an Isolation Method
Galvanic isolation provides electrical separation using transformers or capacitors, ensuring minimal signal interference and high voltage tolerance, ideal for power electronics and industrial applications. Optical isolation employs LEDs and photodetectors for signal transfer, offering excellent noise immunity and high-speed data transmission in communication systems. Key considerations include voltage levels, signal bandwidth, noise susceptibility, and physical size constraints to determine the most suitable isolation method.
Future Trends in Isolation Technologies
Future trends in hardware engineering reveal advancements in galvanic isolation through the integration of wide-bandgap semiconductors like SiC and GaN, enabling higher voltage handling and improved efficiency. Optical isolation is evolving with the adoption of high-speed optocouplers and integrated photonic components that offer enhanced signal integrity and faster data transfer rates. Emerging isolation technologies focus on miniaturization, increased reliability, and compatibility with IoT and electric vehicle systems, driving innovation in both galvanic and optical isolation methods.

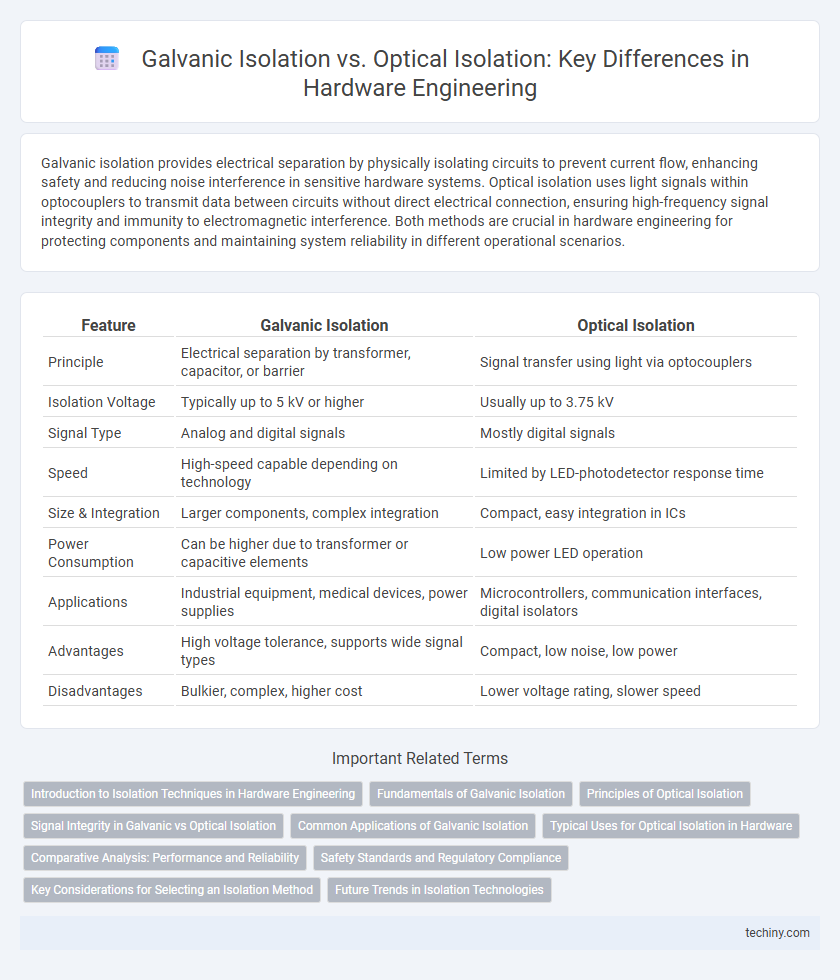

Galvanic isolation vs Optical isolation Infographic
