DDR4 vs DDR5: Key Differences and Performance Impact in Hardware Engineering

DDR5 memory offers significant improvements over DDR4, including higher bandwidth and increased density, enabling enhanced performance and efficiency for demanding hardware engineering applications. DDR5 modules operate at lower voltages, reducing power consumption and heat generation, which is critical for advanced computing systems. Compatibility and cost considerations remain important factors when deciding between DDR4 and DDR5 for specific engineering projects.

Table of Comparison

Introduction to DDR4 and DDR5 Technologies

DDR4 technology offers data transfer rates ranging from 1600 MT/s to 3200 MT/s with a voltage of 1.2V, enhancing power efficiency compared to DDR3. DDR5 introduces significant improvements including speeds starting at 4800 MT/s, increased bandwidth, and on-die ECC (Error Correction Code) for improved reliability, while operating at a lower voltage of 1.1V. Both DDR4 and DDR5 utilize different architecture advancements, such as doubled bank groups and improved channel structures in DDR5, enabling higher performance in modern computing systems.

Key Architectural Differences Between DDR4 and DDR5

DDR5 memory architecture introduces doubled bank groups compared to DDR4, increasing parallelism and improving data efficiency. DDR5 features on-die ECC (Error Correction Code) for enhanced reliability, a new command bus to separate address and control signals, and higher burst lengths from 8 to 16, boosting bandwidth. Voltage regulation shifts from the motherboard to the DIMM itself in DDR5, optimizing power delivery and reducing noise for better overall performance.

Memory Speed and Bandwidth Comparison

DDR5 memory offers significantly higher speeds than DDR4, with base frequencies starting at 4800 MHz compared to DDR4's maximum of around 3200 MHz. The increased data rate in DDR5 translates to greater bandwidth, reaching up to 51.2 GB/s for DDR5-6400, whereas DDR4 peaks at 25.6 GB/s at DDR4-3200. This improvement in memory speed and bandwidth enhances overall system performance, especially in data-intensive applications like gaming, video editing, and professional computing.

Power Efficiency: DDR4 vs DDR5

DDR5 memory modules offer significant power efficiency improvements over DDR4 by operating at a lower voltage of 1.1V compared to DDR4's 1.2V, reducing overall energy consumption. Enhanced power management features in DDR5, such as on-die ECC and power management integrated circuits (PMIC), enable more precise voltage regulation and lower heat generation. These advancements make DDR5 ideal for high-performance computing environments where energy efficiency and thermal management are critical.

Latency and Performance Metrics

DDR5 memory offers higher bandwidth and improved power efficiency compared to DDR4, but it typically exhibits increased latency due to its more complex signaling and higher clock speeds. DDR4 provides lower latency timings, making it advantageous for applications where responsiveness is critical, while DDR5's greater throughput benefits data-intensive tasks such as gaming and content creation. Performance metrics reveal DDR5 can deliver up to 50% higher data rates, though real-world gains depend on system architecture and workload optimization.

Capacity and Scalability Enhancements

DDR5 memory modules offer significant capacity improvements over DDR4, supporting up to 128GB per DIMM compared to DDR4's 64GB maximum. The increased bank groups and improved channel architecture in DDR5 contribute to enhanced scalability, enabling higher data throughput and better performance in multi-core processors. These enhancements make DDR5 ideal for data-intensive applications and future-proof hardware designs requiring greater memory capacity and bandwidth.

Compatibility with Existing Hardware

DDR4 RAM is widely compatible with most current motherboards due to its established presence and mature integration standards, making it a reliable choice for upgrading existing systems. DDR5, however, requires new motherboard architectures with specific DIMM slots and updated memory controllers, limiting backward compatibility with DDR4 hardware. Users aiming for DDR5 performance must consider full platform upgrades, including CPU support, to ensure seamless operation and optimal hardware synergy.

Impact on System Performance and Applications

DDR5 memory delivers significantly higher data transfer rates and increased bandwidth compared to DDR4, enhancing system performance in data-intensive applications such as gaming, video editing, and AI workloads. DDR5's improved power efficiency and larger module capacities enable better multitasking and faster data processing, which is critical for server environments and high-performance computing. While DDR4 remains cost-effective and sufficient for general-purpose tasks, DDR5 unlocks superior performance and future-proofs systems demanding advanced memory throughput and responsiveness.

Cost Considerations and Market Availability

DDR5 memory modules typically command higher prices than DDR4 due to advanced technology and limited market supply, impacting initial investment costs for system builders. DDR4 remains more cost-effective and widely available, benefiting from established production channels and extensive compatibility with existing hardware. Market availability of DDR5 is gradually improving as manufacturers scale up production, but DDR4 continues to dominate budget-sensitive and mass-market segments.

Future Trends in Memory Technologies

DDR5 memory technology is rapidly advancing with higher bandwidths up to 8400 MT/s and improved power efficiency thanks to a lower 1.1V operating voltage compared to DDR4's 1.2V. Future trends in memory technologies emphasize increased capacity, enhanced speed, and integrated error correction, driven by demands from AI, big data, and cloud computing applications. DDR5's on-die ECC and doubled-bank groups enable more reliable and scalable memory architectures essential for next-generation hardware engineering.

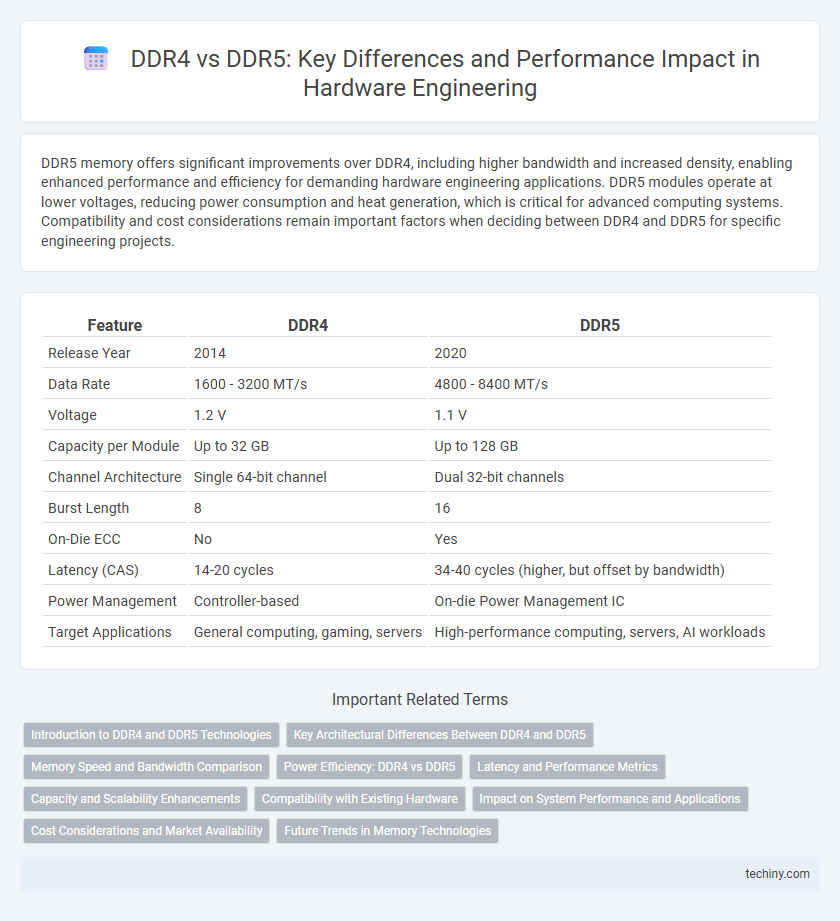

DDR4 vs DDR5 Infographic
