techiny.com Hobbs switches use a pressure-sensitive mechanism to detect hydraulic or pneumatic pressure changes, making them ideal for monitoring fluid systems in aircraft and industrial applications. Reed switches operate through magnetic field activation, providing reliable, contactless switching well-suited for position sensing and safety interlocks. Each switch type offers distinct advantages depending on the required sensitivity, environmental conditions, and application specifics within hardware engineering.
Table of Comparison
| Feature | Hobbs Switch | Reed Switch |
|---|---|---|
| Operating Principle | Electromechanical contact activated by magnetism | Magnetic reed contacts sealed in glass |
| Contact Type | Mechanical snap-action contacts | Sealed, flexible reed contacts |
| Durability | High, suitable for harsh environments | Moderate, sensitive to shock and vibration |
| Response Time | Typically slower (milliseconds) | Faster (microseconds to milliseconds) |
| Switching Current | High current capacity (up to several amps) | Low to moderate current (mA to 1-2 amps) |
| Typical Applications | Industrial machinery, limit switches | Security sensors, consumer electronics |
| Size | Larger, robust construction | Compact and lightweight |
| Cost | Higher due to mechanical complexity | Lower cost, simpler design |
Introduction to Hobbs Switch and Reed Switch
Hobbs switches are pressure-sensitive electromechanical devices typically used in aircraft systems to detect actuator position or pressure changes, offering reliable operation under varying environmental conditions. Reed switches consist of two ferromagnetic blades enclosed in a glass capsule that close or open an electrical circuit in response to a magnetic field, commonly employed in security systems and proximity sensing. Both switches serve crucial roles in hardware engineering for sensing and control applications, but differ in operating principles, durability, and specific use cases.
Key Differences Between Hobbs and Reed Switches
Hobbs switches utilize a mercury-wetted or magnetic sensing element that provides high reliability and durability in harsh environments, while reed switches operate through magnetic field activation of ferromagnetic reeds enclosed in a glass capsule. Hobbs switches offer superior contact stability and resistance to vibration, making them ideal for aerospace and industrial applications, whereas reed switches excel in low-power, low-current sensing with faster response times. The key difference lies in the sensing mechanism and environmental robustness, influencing their respective use cases based on precision, durability, and application demands.
How Hobbs Switches Work in Hardware Engineering
Hobbs switches operate as pressure-sensitive electrical switches, using a diaphragm or bellows mechanism to detect fluid or air pressure changes, thereby controlling circuit activation. These switches create a reliable, normally-open contact that closes under predetermined pressure, making them ideal for monitoring hydraulic, pneumatic, or lubrication systems in hardware engineering. Their robust design ensures durability in harsh environments, offering precise control and safety in machinery and equipment applications.
Principles of Reed Switch Operation
The reed switch operates on the principle of magnetic field activation, where two ferrous metal reeds sealed within a glass envelope move to complete an electrical circuit when exposed to a magnetic field. Unlike the Hobbs switch, which relies on mechanical pressure or position change, the reed switch provides a contact closure sensitive to magnetic flux density and polarity. This magnetic operation principle ensures high reliability, fast response time, and isolation from environmental contaminants, making reed switches ideal for precise hardware engineering applications.
Applications of Hobbs Switches in Technology
Hobbs switches, widely used in aviation and industrial equipment, serve as reliable indicators of engine oil pressure and system status by activating under specific pressure thresholds. Their robust design allows them to function effectively in harsh environments, making them ideal for safety-critical applications in aerospace and heavy machinery. These switches provide precise control in hydraulic systems and help monitor and protect engines by signaling abnormal conditions promptly.
Typical Uses for Reed Switches in Hardware
Reed switches are commonly used in hardware applications for sensing and control purposes due to their reliability and low power consumption. Typical uses include proximity sensing, position detection in security systems, and fluid level monitoring in industrial equipment. Their sealed design makes them ideal for harsh environments, offering durable performance in switches, relays, and electronic locking mechanisms.
Performance and Reliability Comparison
Hobbs switches offer precise mechanical actuation with high durability, typically rated for millions of cycles, making them reliable in harsh environments requiring physical contact detection. Reed switches provide contactless operation by using magnetic fields, resulting in minimal wear and longer lifespan but may be susceptible to magnetic interference affecting performance stability. Performance-wise, Hobbs switches excel in environments where tactile feedback and ruggedness are necessary, whereas Reed switches outperform in low-power and sealed applications demanding maintenance-free reliability.
Installation and Maintenance Considerations
Hobbs switches require precise mechanical mounting aligned with engine oil pressure or vacuum sources, ensuring accurate activation timing, which can complicate installation in tight engine bays. Reed switches offer simpler wiring and can be sealed within robust enclosures, reducing exposure to contaminants and decreasing long-term maintenance needs. Maintenance for Hobbs switches often involves periodic calibration and inspection for mechanical wear, whereas reed switches typically demand less frequent servicing due to their sealed reed contacts and non-contact operation.
Cost Implications: Hobbs vs Reed Switches
Hobbs switches generally incur higher upfront costs due to their more complex mechanical design and enhanced durability for harsh environments, making them suitable for heavy-duty applications despite the premium price. Reed switches offer a cost-effective alternative with simpler construction and lower manufacturing expenses, favoring their use in less demanding or consumer-level hardware engineering projects. Choosing between Hobbs and Reed switches depends on budget constraints weighed against expected operating conditions and maintenance costs over the product lifecycle.
Future Trends in Switching Technologies
Emerging trends in switching technologies emphasize the integration of advanced Hobbs switches with smart microelectromechanical systems (MEMS) for enhanced durability and precision in harsh environments. Reed switches are evolving through the adoption of flexible, semiconductor-based designs to achieve lower power consumption and miniaturization essential for IoT devices. Future developments focus on combining the high sensitivity of Reed switches with the robust mechanical characteristics of Hobbs switches to enable hybrid solutions in aerospace and industrial automation.

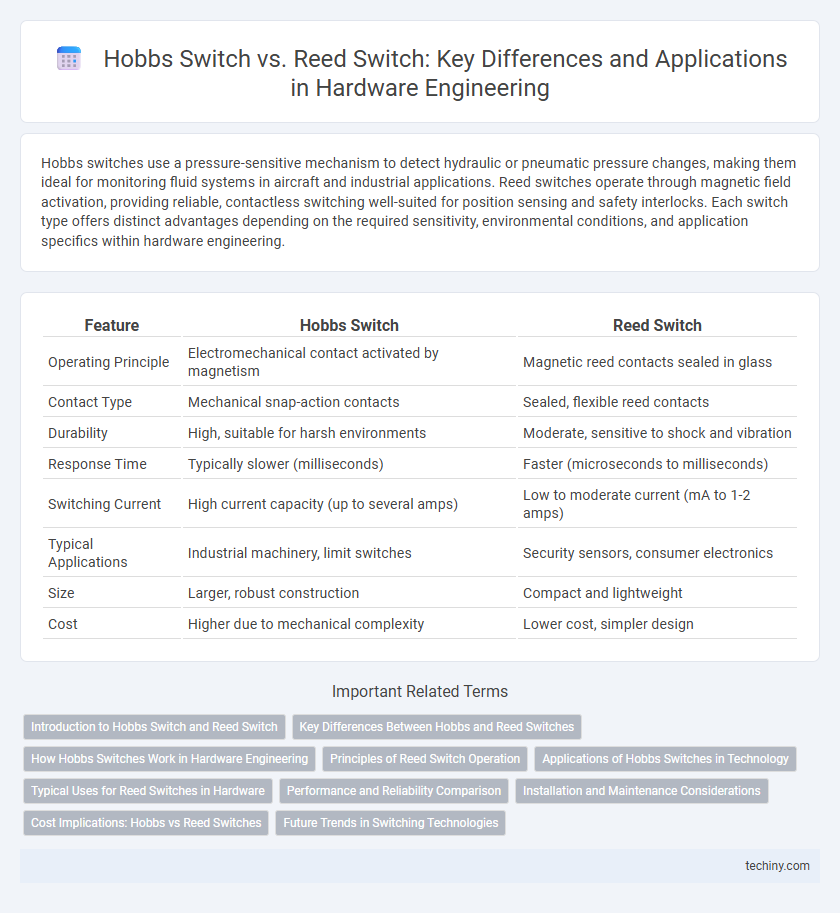

Hobbs switch vs Reed switch Infographic
