techiny.com Isolation transformers provide galvanic isolation between input and output, enhancing safety by preventing direct electrical connection and reducing noise interference in sensitive hardware engineering applications. Auto transformers, while more compact and efficient due to a shared winding, lack isolation, which can pose risks in circuits requiring protection from electrical faults or ground loops. Selecting the appropriate transformer type depends on the need for electrical isolation versus size and cost constraints in hardware design.
Table of Comparison
| Feature | Isolation Transformer | Auto Transformer |
|---|---|---|
| Function | Provides galvanic isolation between input and output | Shares winding between input and output, no galvanic isolation |
| Construction | Separate primary and secondary windings | Single winding with taps |
| Voltage Regulation | Good voltage regulation, reduces noise and spikes | Less effective voltage regulation |
| Safety | Enhanced safety due to isolation | Lower safety, risk of ground loops |
| Efficiency | Lower efficiency due to double winding losses | Higher efficiency, minimal copper losses |
| Size & Weight | Larger and heavier due to separate windings | Smaller and lighter |
| Cost | Higher cost | Lower cost |
| Use Cases | Medical equipment, sensitive electronics, noise isolation | Voltage step-up/down in power distribution, autotransformer starters |
Introduction to Isolation Transformers and Auto Transformers
Isolation transformers provide galvanic isolation between input and output, enhancing safety by blocking direct electrical connection and reducing noise transmission in sensitive electronics. Auto transformers share a common winding for both input and output, offering voltage transformation with higher efficiency and reduced size but lack isolation capabilities. Selection between the two depends on application requirements for safety, noise reduction, and cost-efficiency in hardware engineering designs.
Core Principles: Isolation vs. Autotransformer Design
Isolation transformers use separate primary and secondary windings to provide galvanic isolation, preventing direct electrical connection and enhancing safety by blocking noise and interference. Autotransformers feature a single winding acting as both primary and secondary, sharing a common winding section, which results in a lighter, more efficient design but without electrical isolation. This difference in core design influences their applications, with isolation transformers preferred for safety-critical systems and autotransformers suited for voltage regulation where isolation is not required.
Safety Features: Comparing Electrical Isolation
Isolation transformers provide complete electrical isolation between input and output windings, effectively preventing direct electrical connection and significantly enhancing safety by reducing the risk of electric shock and noise interference. Auto transformers share a common winding for input and output, lacking galvanic isolation, which can lead to potential safety hazards due to ground faults or short circuits. Therefore, isolation transformers are preferred in hardware engineering applications requiring stringent electrical safety and noise immunity.
Voltage Regulation and Control Capabilities
Isolation transformers provide superior voltage regulation by maintaining electrical isolation between primary and secondary windings, minimizing voltage fluctuations and noise interference. Auto transformers offer less precise voltage control due to their shared winding design, resulting in limited isolation and increased susceptibility to voltage spikes. For critical hardware applications requiring stable and clean power, isolation transformers are preferred, while auto transformers are suitable for simpler voltage adjustment tasks with moderate regulation needs.
Efficiency Analysis: Energy Loss and Performance
Isolation transformers typically exhibit lower energy loss due to their separate primary and secondary windings, which minimize leakage currents and improve electrical isolation. Auto transformers, while more compact and cost-effective, often experience higher eddy current and hysteresis losses because of their shared winding design, reducing overall efficiency in certain applications. Efficiency analysis reveals that isolation transformers provide better performance in sensitive equipment by maintaining voltage stability and minimizing energy dissipation, whereas auto transformers excel in scenarios prioritizing size and cost over absolute energy efficiency.
Use Cases in Power Distribution Systems
Isolation transformers are primarily used in power distribution systems to provide galvanic isolation, enhancing safety by preventing direct electrical connection and reducing noise in sensitive equipment. Auto transformers are favored for voltage regulation and stepping up or down voltages efficiently in applications where isolation is not required, offering a compact design with lower cost and higher efficiency. In power distribution, isolation transformers are ideal for isolating circuits to eliminate ground loops, while auto transformers are suited for voltage adjustment in substations and motor starting circuits.
Physical Size, Weight, and Installation Considerations
Isolation transformers are typically larger and heavier than autotransformers due to their separate primary and secondary windings, which require more copper and iron core material. Autotransformers offer a more compact physical size and lighter weight since they share common windings for input and output, making them easier to install in constrained spaces. Installation of isolation transformers usually demands more space and robust mounting support, whereas autotransformers can simplify integration in systems with limited room and weight restrictions.
Cost Comparison: Initial Investment and Maintenance
Isolation transformers generally require a higher initial investment due to their complex construction with separate primary and secondary windings, which enhances safety and noise reduction. Auto transformers, featuring a single winding with taps, tend to be less expensive upfront but may incur higher maintenance costs over time due to reduced electrical isolation and potential wear from voltage fluctuations. Evaluating total cost of ownership involves balancing the upfront savings of auto transformers against the durability and reliability benefits, which often lower long-term maintenance expenses for isolation transformers.
Common Applications in Hardware Engineering
Isolation transformers are widely used in hardware engineering for safety-critical applications such as medical equipment and sensitive instrumentation, providing galvanic isolation to prevent electric shock and reduce noise interference. Auto transformers find common use in voltage regulation and testing environments where size, cost efficiency, and voltage conversion with a shared winding are prioritized. Both transformers play essential roles in hardware design, with isolation transformers enhancing safety and signal integrity, while auto transformers offer compact solutions for voltage adjustment tasks.
Selection Guidelines: Choosing the Right Transformer
Selection guidelines for choosing between isolation transformers and auto transformers depend on the required voltage regulation, safety isolation, and cost constraints. Isolation transformers provide galvanic isolation critical for protecting sensitive equipment and personnel, making them ideal for medical and industrial applications, whereas auto transformers offer efficient voltage conversion with reduced size and cost but lack isolation. When selecting, prioritize isolation needs, load size, application environment, and budget to ensure optimal performance and safety compliance.

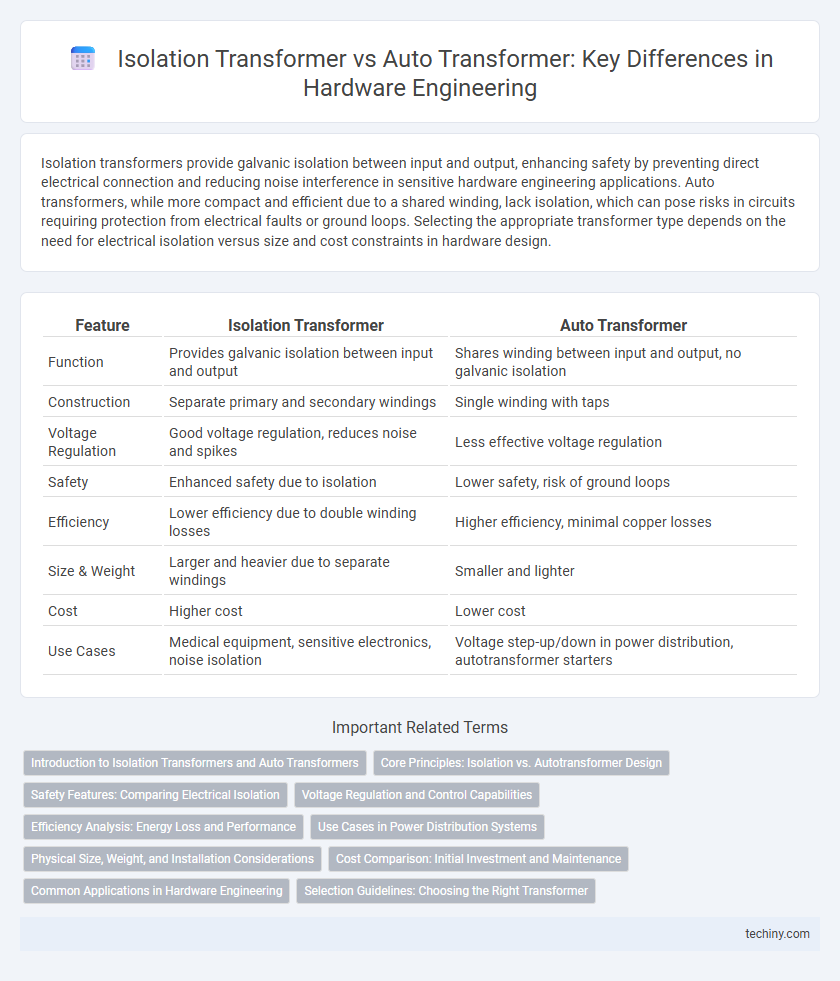

isolation transformer vs auto transformer Infographic
