techiny.com Optical encoders offer higher resolution and better accuracy due to their use of light-based sensing, making them ideal for precision applications. Magnetic encoders provide greater durability and resistance to dust, moisture, and vibrations, suitable for harsh environments. Both types serve crucial roles in hardware engineering, with the choice depending on specific application requirements such as environmental conditions and desired precision.
Table of Comparison
| Feature | Optical Encoder | Magnetic Encoder |
|---|---|---|
| Working Principle | Light beam interruption and photodetector sensing | Magnetic field sensing via Hall effect or magnetoresistive sensors |
| Accuracy | High precision, up to sub-arcsecond resolution | Moderate precision, typically around arcminute resolution |
| Durability | Sensitive to dust, dirt, and vibration | Robust against dust, dirt, moisture, and vibration |
| Environmental Tolerance | Limited, requires clean conditions | Wide range, suitable for harsh environments |
| Size and Installation | Typically larger, requires precise alignment | Compact design, easier installation |
| Cost | Generally higher due to optical components | Lower cost with simpler components |
| Applications | High-precision robotics, CNC machines, instrumentation | Industrial automation, automotive, harsh environment sensing |
Introduction to Optical and Magnetic Encoders
Optical encoders use light and photodetectors to convert mechanical motion into electrical signals, providing high resolution and accuracy ideal for precise position sensing. Magnetic encoders rely on magnetic fields generated by magnets and sensors such as Hall effect or magnetoresistive devices, offering robustness and reliability in harsh environments with dust, dirt, or moisture. Both encoder types are essential in hardware engineering for motion control, with optical encoders favored for clean, high-precision applications and magnetic encoders chosen for durability in industrial settings.
Working Principle: Optical vs Magnetic Encoders
Optical encoders operate by using a light source and a photodetector to read patterns on a rotating disk, translating light interruptions into digital signals for precise position feedback. Magnetic encoders utilize a magnet and magnetic field sensors, such as Hall effect sensors or magnetoresistive elements, to detect changes in the magnetic field generated by a rotating magnet. The working principle of optical encoders ensures higher resolution and accuracy, while magnetic encoders offer robustness against dust, dirt, and mechanical wear in harsh environments.
Key Components and Design Differences
Optical encoders utilize a light source, typically an LED, alongside a photodetector array and a patterned disk to detect position through interruption or reflection of light, enabling high-resolution and precise angular measurement. Magnetic encoders incorporate a rotating magnet attached to the shaft, Hall-effect sensors, or magnetoresistive elements to sense magnetic field changes, providing robustness against dust, vibration, and moisture. The primary design difference lies in the sensing mechanism--optical encoders rely on light transmission and detection requiring clean environments, while magnetic encoders focus on magnetic field detection, favoring harsh industrial conditions with lower resolution tolerance.
Accuracy and Resolution Comparison
Optical encoders typically offer higher accuracy and resolution compared to magnetic encoders due to their use of finely patterned photodiodes and light-based sensing, enabling precise position feedback with resolutions up to several thousand pulses per revolution. Magnetic encoders rely on magnetic field detection, which generally results in lower resolution and can be more susceptible to external magnetic interference, limiting their accuracy especially in high-precision applications. The choice between optical and magnetic encoders depends on application requirements, with optical encoders preferred for tasks demanding superior accuracy and finer resolution.
Environmental Tolerance and Durability
Optical encoders offer high resolution and accuracy but are more sensitive to dust, dirt, and moisture, which can degrade performance in harsh environments. Magnetic encoders provide superior environmental tolerance, resisting contamination from dirt, oil, and water, making them ideal for industrial applications with challenging conditions. The durability of magnetic encoders is enhanced by their solid-state construction, leading to longer lifespan and reduced maintenance compared to optical encoders.
Installation and Maintenance Considerations
Optical encoders require precise alignment during installation to ensure accurate signal output, and their sensitivity to dust and contaminants necessitates regular cleaning and careful environmental control. Magnetic encoders offer easier installation with less stringent alignment requirements and typically demand less maintenance due to their robust, sealed design that resists dirt, moisture, and vibration. Selecting between the two depends on the application environment and maintenance capabilities, with magnetic encoders favoring harsher conditions and optical encoders suited for clean, controlled settings.
Cost Analysis: Optical vs Magnetic Solutions
Optical encoders generally incur higher initial costs due to complex manufacturing processes and precision components, while magnetic encoders offer cost-effective alternatives with simpler designs and durable materials. Maintenance expenses for optical encoders can increase over time because of sensitivity to dust and debris, whereas magnetic encoders reduce long-term costs through robust performance in harsh environments. Evaluating total cost of ownership highlights magnetic encoders as economically advantageous for applications requiring reliability and minimal upkeep.
Typical Applications in Industry
Optical encoders are widely used in precision motion control applications such as CNC machines, robotics, and semiconductor manufacturing due to their high resolution and accuracy. Magnetic encoders are preferred in harsh industrial environments like automotive manufacturing, packaging machinery, and heavy equipment where durability and resistance to dust, dirt, and vibration are critical. Both encoder types play essential roles in position sensing and feedback systems, enhancing operational efficiency in diverse industrial automation processes.
Future Trends in Encoder Technology
Advancements in encoder technology are leaning towards higher resolution and miniaturization, with optical encoders benefiting from improved LED and photodetector innovations for enhanced precision. Magnetic encoders are evolving through robust, contactless sensing mechanisms that better withstand harsh environments and electromagnetic interference. Emerging trends focus on integrating smart features like real-time diagnostics and wireless connectivity to optimize performance in automation and robotics.
Choosing the Right Encoder for Your Project
Optical encoders provide high-resolution feedback and superior accuracy, making them ideal for precision applications such as robotics and CNC machinery. Magnetic encoders offer robust performance in harsh environments, featuring resistance to dust, moisture, and vibration, which suits industrial automation and automotive uses. Selecting the right encoder depends on project requirements like environmental conditions, resolution needs, and budget constraints to ensure optimal performance and durability.

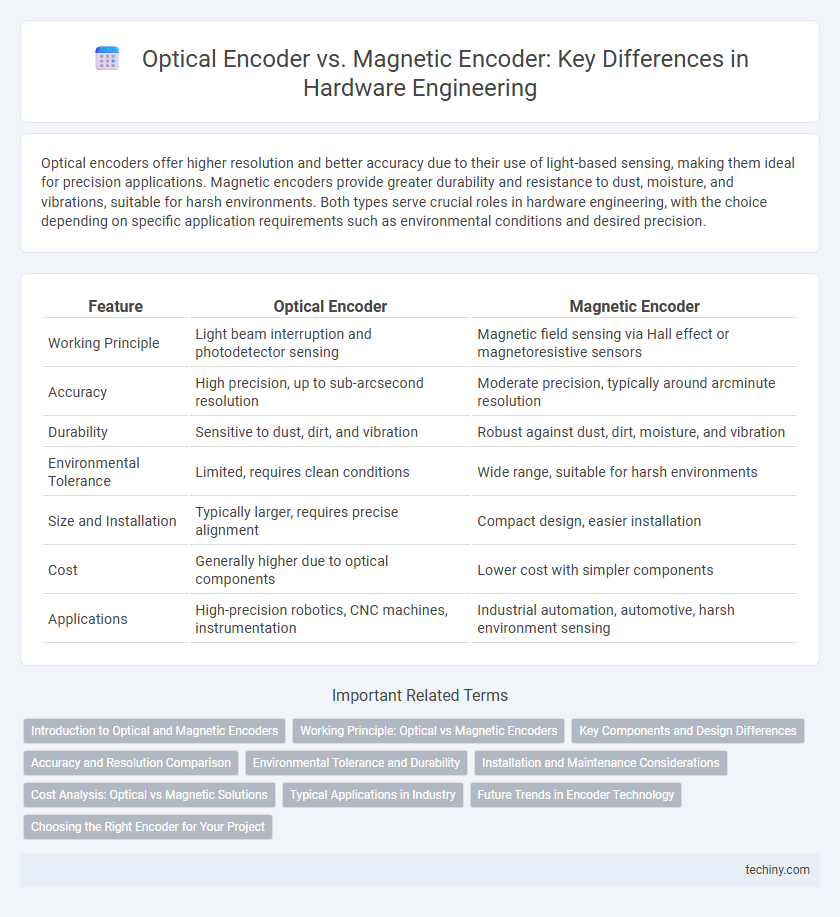

Optical encoder vs Magnetic encoder Infographic
