techiny.com I2C and SMBus are both communication protocols used in hardware engineering for interfacing integrated circuits. I2C offers flexible clock speeds and supports multiple devices with clock stretching, while SMBus is a subset of I2C designed for system management with stricter timing and error handling requirements. SMBus enforces standardized commands and timeouts, making it more reliable for power management and battery monitoring applications.
Table of Comparison
| Feature | I2C | SMBus |
|---|---|---|
| Definition | Inter-Integrated Circuit, two-wire serial bus for communication | System Management Bus, a derivative of I2C with stricter protocols |
| Bus Speed | Standard: 100 kbps, Fast: 400 kbps, Fast+: 1 Mbps, High-Speed: up to 3.4 Mbps | Standard: 10 kbps to 100 kbps |
| Voltage Levels | Typically 1.8V to 5V dependent on device | Standardized 3.3V or 5V levels |
| Protocol Strictness | Flexible with start/stop condition timing | Stricter timing and message protocols, including timeouts |
| Packet Error Checking | No native CRC or checksum | Includes Packet Error Code (PEC) for data integrity |
| Device Addressing | 7-bit or 10-bit addressing modes | Typically 7-bit addressing with reserved addresses |
| Use Case | General purpose embedded device communication | System management, battery monitoring, and control |
| Compatibility | Widely compatible with many ICs and microcontrollers | Compatible with I2C hardware but requires SMBus protocol support |
Introduction to I2C and SMBus
I2C (Inter-Integrated Circuit) is a widely used, multi-master, multi-slave synchronous communication protocol designed for short-distance, intra-board communication between microcontrollers and peripheral devices. SMBus (System Management Bus) is a derivative of I2C, standardized by Intel for reliable communication in PC power and system management, featuring stricter timing and voltage specifications. Both protocols share similar physical layers but differ in protocol strictness, error handling, and application focus, making SMBus suited for robust system monitoring and control functions.
Historical Overview of I2C and SMBus
I2C, developed by Philips Semiconductor in the early 1980s, established a versatile, two-wire communication protocol widely adopted for short-range intra-board communication. SMBus, introduced by Intel in 1995, evolved as a derivative of I2C with stricter electrical and timing specifications aimed at system management and battery monitoring in PCs. The historical divergence highlights I2C's general-purpose flexibility versus SMBus's focus on robustness and interoperability in power-sensitive applications.
Protocol Architecture: I2C vs. SMBus
I2C and SMBus share a similar two-wire serial communication protocol, but SMBus enforces stricter specifications for timing, voltage levels, and signal integrity to ensure interoperability in system management applications. SMBus protocol architecture includes standardized packet error checking (PEC) for enhanced data reliability, whereas I2C does not natively support PEC. The architectural differences in bus speed, addressing schemes, and timeout mechanisms reflect SMBus's focus on robust, low-frequency communication in power and battery management contexts.
Electrical Characteristics and Signaling
I2C and SMBus both use open-drain/open-collector signaling with pull-up resistors on the data (SDA) and clock (SCL) lines, but SMBus enforces stricter electrical characteristics including tighter timing requirements and defined voltage thresholds to improve device interoperability. SMBus typically operates at 3.3V logic levels, whereas I2C supports a wider voltage range from 1.8V up to 5V, allowing more flexibility in hardware design. The defined timeout and bus reset protocols in SMBus enhance signaling reliability under extended communication delays compared to I2C's more lenient electrical specifications.
Communication Speed and Timing Differences
I2C typically supports communication speeds up to 3.4 Mbps in High-Speed mode, whereas SMBus operates at a maximum of 100 kbps or 400 kbps in its enhanced versions. Timing differences are evident as SMBus enforces stricter bus timing requirements, including minimum clock low and high times along with mandatory timeout periods. These constraints ensure improved compatibility and error detection in SMBus, contrasting with the more flexible timing parameters found in standard I2C implementations.
Addressing Modes and Device Compatibility
I2C supports 7-bit and 10-bit addressing modes, enabling compatibility with a wide range of devices, while SMBus primarily uses 7-bit addressing with stricter protocol requirements to ensure interoperability among system management components. The 7-bit addressing mode in SMBus allows simpler device addressing but limits the address space compared to I2C's extended 10-bit addressing capability. Device compatibility between I2C and SMBus often depends on voltage levels and timing specifications, with SMBus enforcing standardized electrical characteristics to enhance reliability in system management applications.
Error Detection and Reliability Features
I2C and SMBus protocols differ significantly in error detection and reliability features, with SMBus offering enhanced mechanisms such as Packet Error Checking (PEC) to ensure data integrity during communication. SMBus's fixed timing and voltage specifications contribute to more predictable performance, reducing timing-related errors compared to the more flexible I2C standard. These improvements make SMBus particularly suitable for applications requiring robust error handling and increased reliability in hardware interfacing.
Protocol Extensions and Advanced Features
SMBus extends the I2C protocol by adding stricter timing requirements, packet error checking (PEC), and defined protocols for device addressing and power management. Advanced features in SMBus include alert response addressing and host notify protocols, enabling better system-level communication and device status monitoring. These extensions enhance interoperability and reliability in complex embedded systems compared to the more flexible but less standardized I2C.
Common Application Scenarios
I2C is widely used in applications requiring simple two-wire communication for sensor interfacing, EEPROM access, and low-speed peripheral control in embedded systems. SMBus is favored in battery management, system monitoring, and power management scenarios due to its standardized protocols and timeout features for robust error handling. Both protocols support device addressing and multi-master configurations, but SMBus's stricter timing and voltage requirements make it ideal for system-level communication in laptops and servers.
Choosing the Right Bus for Your Project
When choosing between I2C and SMBus for hardware engineering projects, consider that I2C offers flexible communication with multiple data rates up to 3.4 Mbps, making it suitable for general-purpose sensor interfacing. SMBus provides stricter protocol definitions and built-in error checking, ideal for battery management and system monitoring where reliability is critical. Evaluating device compatibility, bus speed requirements, and error-handling capabilities ensures the optimal selection for your specific application.

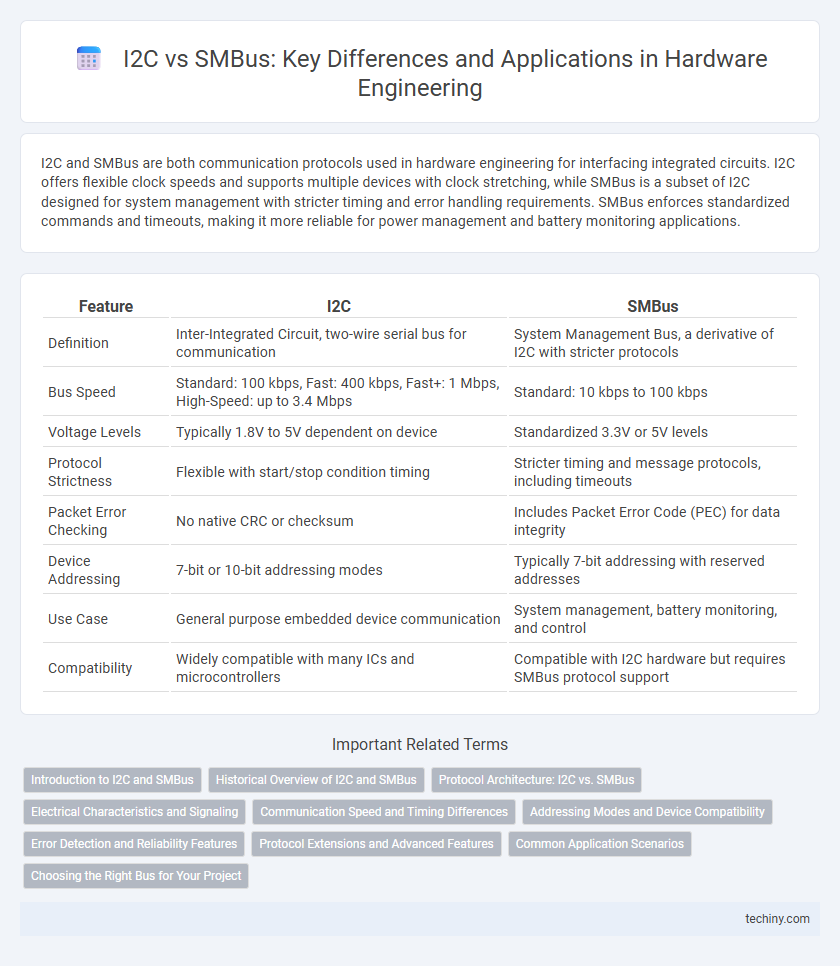

I2C vs SMBus Infographic
