techiny.com Jumbo frames improve network efficiency by allowing larger packets, up to 9000 bytes, compared to standard frames limited to 1500 bytes, reducing overhead and enhancing data throughput. They are ideal for high-performance networks or storage systems where large data transfers are common, minimizing CPU load and latency. However, compatibility with all devices and switches must be ensured to avoid fragmentation or dropped packets in mixed environments.
Table of Comparison
| Feature | Jumbo Frame | Standard Frame |
|---|---|---|
| Maximum Payload Size | 9000 bytes (typical) | 1500 bytes (Ethernet MTU) |
| Use Case | High-performance networks, data centers, storage networks | General purpose, typical LAN and internet traffic |
| Network Overhead | Reduced overhead due to fewer frames | Higher overhead with more frames |
| Compatibility | Requires switch and device support | Universally supported |
| Latency | Lower latency in bulk transfers | Standard latency |
| Error Rate | Potentially higher error impact due to larger frame size | Lower error impact per frame |
| Configuration | Must be manually enabled on devices and switches | Enabled by default |
Introduction to Ethernet Frame Sizes
Standard Ethernet frames typically range from 64 to 1518 bytes, accommodating most network communications efficiently, whereas jumbo frames extend the maximum payload size up to 9000 bytes or more, enabling reduced overhead and increased throughput for large data transfers. The larger size of jumbo frames minimizes the number of frames needed to transmit large payloads, which decreases CPU processing and improves network performance in environments supporting high-bandwidth applications. Compatibility issues may arise when mixing devices that handle only standard frames with those supporting jumbo frames, requiring careful network configuration and testing.
What Are Standard Frames?
Standard frames in networking refer to Ethernet frames with a maximum payload size of 1500 bytes, which is the default Maximum Transmission Unit (MTU) for most networks. These frames include header information such as the source and destination MAC addresses, EtherType, and a Frame Check Sequence (FCS) for error detection. Standard frames ensure compatibility and efficient handling across diverse networking equipment, making them the baseline for typical data transmission in Ethernet environments.
Defining Jumbo Frames
Jumbo frames are Ethernet frames with payloads larger than the standard 1500 bytes, typically up to 9000 bytes, designed to improve network efficiency by reducing CPU overhead and increasing throughput. Standard frames, limited to 1500 bytes, require more packets for the same data transfer, causing higher processing loads and increased latency. Using jumbo frames effectively enhances performance in high-bandwidth environments such as data centers and storage networks by minimizing packet processing tasks and improving network utilization.
Technical Differences: Jumbo vs Standard Frames
Jumbo frames support Ethernet packets up to 9,000 bytes, compared to the 1,518-byte maximum of standard frames, reducing CPU utilization and increasing data throughput in high-performance networks. Standard frames include a 14-byte header and 4-byte CRC, while jumbo frames maintain the same header size but carry larger payloads, which minimizes overhead per packet during transmission. Networks must have end-to-end jumbo frame support, including switches and network interface cards, to prevent fragmentation and maximize efficiency when using jumbo frames.
Performance Benefits of Jumbo Frames
Jumbo frames, with sizes up to 9000 bytes, significantly reduce CPU utilization and improve throughput by allowing larger payloads per packet compared to the standard Ethernet frame size of 1500 bytes. This reduction in packet processing overhead enhances data transfer efficiency in high-performance networks, particularly in data centers and storage area networks (SANs). Implementing jumbo frames can lead to lower latency and increased network scalability by minimizing the number of packets required for large data transfers.
Network Compatibility and Hardware Requirements
Jumbo frames, typically sized at 9000 bytes compared to the standard Ethernet frame size of 1500 bytes, improve network efficiency but require all network devices--including switches, routers, and NICs--to support the larger frame size to maintain compatibility. Incompatible hardware can lead to packet loss and transmission errors, emphasizing the importance of verifying end-to-end jumbo frame support across the network infrastructure. Standard frames ensure broad compatibility across diverse devices and networks without necessitating hardware upgrades or configuration changes.
Potential Drawbacks and Limitations
Jumbo frames increase MTU size beyond the standard 1500 bytes, but compatibility issues arise with older or mixed network equipment, causing packet loss or fragmentation. Larger frames can lead to increased latency and buffer requirements, negatively impacting real-time applications like VoIP or gaming. Network troubleshooting and monitoring become more complex due to varied frame sizes and inconsistent support across devices.
Use Cases for Jumbo Frames
Jumbo frames, typically supporting MTU sizes of 9000 bytes or more, improve network efficiency by reducing CPU overhead and increasing throughput in high-performance environments such as data centers, storage area networks (SANs), and virtualization platforms. Standard Ethernet frames, limited to 1500 bytes MTU, are common in general enterprise networks where compatibility and simplicity are prioritized over large data transfers. High-bandwidth applications, including video streaming, large file transfers, and backup operations, benefit significantly from jumbo frames by minimizing packet fragmentation and improving overall network performance.
Configuration Best Practices
Configuring jumbo frames requires matching MTU settings across all devices in the network path to avoid fragmentation and packet loss, with a common MTU size of 9000 bytes compared to the standard 1500 bytes for typical Ethernet frames. Network administrators should verify switch, router, and server compatibility before enabling jumbo frames to ensure optimal performance and reduce latency in high-throughput environments. Monitoring tools and regular testing help maintain stability and confirm that jumbo frame deployment results in improved network efficiency without introducing errors.
Selecting the Right Frame Size for Your Network
Choosing the right frame size for your network depends on balancing throughput and compatibility. Jumbo Frames, typically 9000 bytes, improve efficiency by reducing CPU overhead and enhancing large data transfer speeds, ideal for high-performance LANs and storage networks. Standard Frames, limited to 1500 bytes, ensure broad compatibility across diverse devices and are preferred in networks where latency and interoperability are critical.

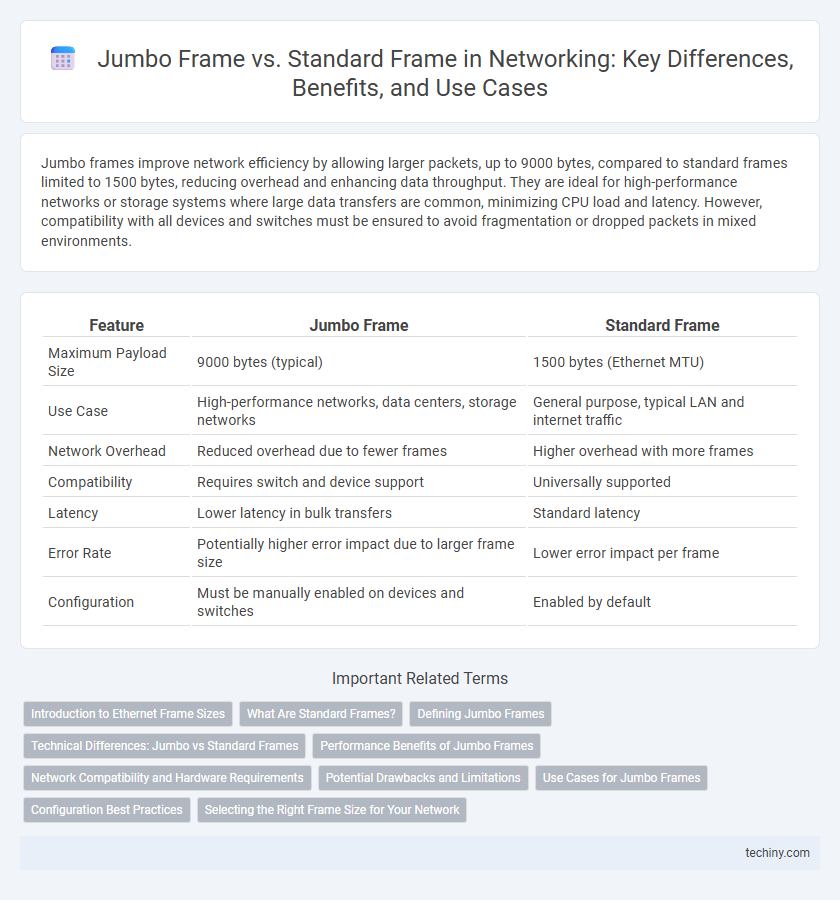

Jumbo Frame vs Standard Frame Infographic
