techiny.com Spanning Tree Protocol (STP) prevents network loops by creating a spanning tree that selectively blocks redundant paths, ensuring a loop-free Layer 2 topology. Rapid Spanning Tree Protocol (RSTP) enhances STP by significantly reducing convergence time, allowing faster recovery from topology changes and minimizing network downtime. Both protocols improve network reliability, but RSTP is preferred in modern networks due to its superior performance and faster failover capabilities.
Table of Comparison
| Feature | Spanning Tree Protocol (STP) | Rapid Spanning Tree Protocol (RSTP) |
|---|---|---|
| Standard | IEEE 802.1D (1990) | IEEE 802.1w (2001) |
| Convergence Time | 30-50 seconds | Typically less than 6 seconds |
| Port Roles | Root, Designated, Blocking | Root, Designated, Alternate, Backup |
| Port States | Blocking, Listening, Learning, Forwarding, Disabled | Discarding, Learning, Forwarding |
| Protocol Type | Legacy STP | Enhanced STP with rapid convergence |
| BPDU Handling | Every 2 seconds, slower processing | Faster BPDU exchange and immediate reaction |
| Backward Compatibility | Original protocol, widely supported | Backward compatible with STP |
| Use Case | Small or simple networks | Large, complex, or critical networks requiring fast recovery |
Introduction to Spanning Tree Protocol (STP)
Spanning Tree Protocol (STP) is a Layer 2 network protocol designed to prevent loops in Ethernet networks by creating a loop-free logical topology. STP elects a root bridge and blocks redundant paths, ensuring a stable network by dynamically disabling links that could cause broadcast storms. It operates using bridge protocol data units (BPDUs) to maintain the spanning tree structure and converge in 30 to 50 seconds during topology changes.
Overview of Rapid Spanning Tree Protocol (RSTP)
Rapid Spanning Tree Protocol (RSTP) enhances network convergence by significantly reducing the time taken to restore network topology after a failure, often within a few seconds compared to the 30-50 seconds typical of Spanning Tree Protocol (STP). RSTP, defined in IEEE 802.1w, introduces new port roles and states, such as the alternate and backup port roles and the discarding state, to quickly respond to changes without relying on timers. This protocol maintains loop-free Layer 2 network topologies while enabling faster adaptation to link failures and topology changes, improving overall network stability and performance.
Key Differences Between STP and RSTP
Spanning Tree Protocol (STP) uses a slower convergence time of 30 to 50 seconds to prevent network loops by blocking redundant paths, while Rapid Spanning Tree Protocol (RSTP) drastically reduces this to a few seconds through faster handshakes and port role changes. STP defines port states such as Blocking, Listening, Learning, and Forwarding, whereas RSTP simplifies states to Discarding, Learning, and Forwarding for streamlined operation. RSTP introduces new port roles like Alternate and Backup ports for enhanced redundancy and accelerated topology changes compared to the traditional STP design.
Core Functions and Operation Mechanisms
Spanning Tree Protocol (STP) prevents network loops by creating a loop-free logical topology using a root bridge and blocking redundant paths, with convergence times typically up to 50 seconds. Rapid Spanning Tree Protocol (RSTP) enhances STP by introducing faster convergence through immediate transition of ports to forwarding state and using proposal-agreement handshakes, reducing convergence time to a few milliseconds. Both protocols maintain a loop-free environment, but RSTP improves network stability and recovery speed during topology changes.
Convergence Times: STP vs RSTP
Spanning Tree Protocol (STP) typically has convergence times ranging from 30 to 50 seconds, which can cause network downtime during topology changes. Rapid Spanning Tree Protocol (RSTP) significantly improves convergence times, achieving network recovery in 1 to 10 seconds by actively monitoring and exchanging handshake messages between switches. This faster convergence in RSTP enhances network stability and reduces the risk of broadcast storms and data loss.
Network Topology Changes and Recovery
Spanning Tree Protocol (STP) detects network topology changes by sending Bridge Protocol Data Units (BPDUs) every 2 seconds, with convergence times ranging from 30 to 50 seconds during recovery. Rapid Spanning Tree Protocol (RSTP) accelerates topology change detection using handshake mechanisms and proposal/agreement exchanges between switches, reducing convergence to under 10 seconds. RSTP improves recovery speed by faster transition of ports to forwarding state, minimizing network downtime and improving resilience in dynamic Layer 2 environments.
Compatibility and Interoperability
Spanning Tree Protocol (STP) is widely supported across legacy network devices, ensuring broad compatibility but with slower convergence times. Rapid Spanning Tree Protocol (RSTP) offers enhanced performance with faster convergence while maintaining backward compatibility with STP, allowing seamless interoperability in mixed network environments. Network administrators can deploy RSTP without replacing existing STP hardware, facilitating a gradual upgrade path for improved network resilience and stability.
Pros and Cons of STP and RSTP
Spanning Tree Protocol (STP) provides reliable loop prevention in Ethernet networks but suffers from slower convergence times, typically 30 to 50 seconds, which can cause temporary network outages. Rapid Spanning Tree Protocol (RSTP) significantly improves network recovery speeds with convergence times often under a few seconds, enhancing overall network performance and minimizing downtime. While RSTP requires compatible hardware and upgrades, STP remains widely supported in legacy systems, making it suitable for environments with older network devices.
Best Use Cases for Each Protocol
Spanning Tree Protocol (STP) is best suited for legacy networks with slower hardware where network stability and compatibility are prioritized over rapid convergence times. Rapid Spanning Tree Protocol (RSTP) excels in modern enterprise environments requiring fast network recovery and minimal downtime, supporting faster convergence up to 30 times quicker than STP. Networks with high availability demands and complex topologies benefit most from implementing RSTP due to its efficient handling of topology changes and improved performance.
Future Trends in Network Loop Prevention
Future trends in network loop prevention will heavily favor Rapid Spanning Tree Protocol (RSTP) due to its significantly faster convergence times compared to traditional Spanning Tree Protocol (STP). Emerging network demands for higher bandwidth and lower latency drive the adoption of RSTP and its enhancements in modern enterprise and data center environments. Integration with Software-Defined Networking (SDN) and Artificial Intelligence (AI)-based network automation tools is expected to further optimize loop prevention mechanisms beyond legacy protocols.

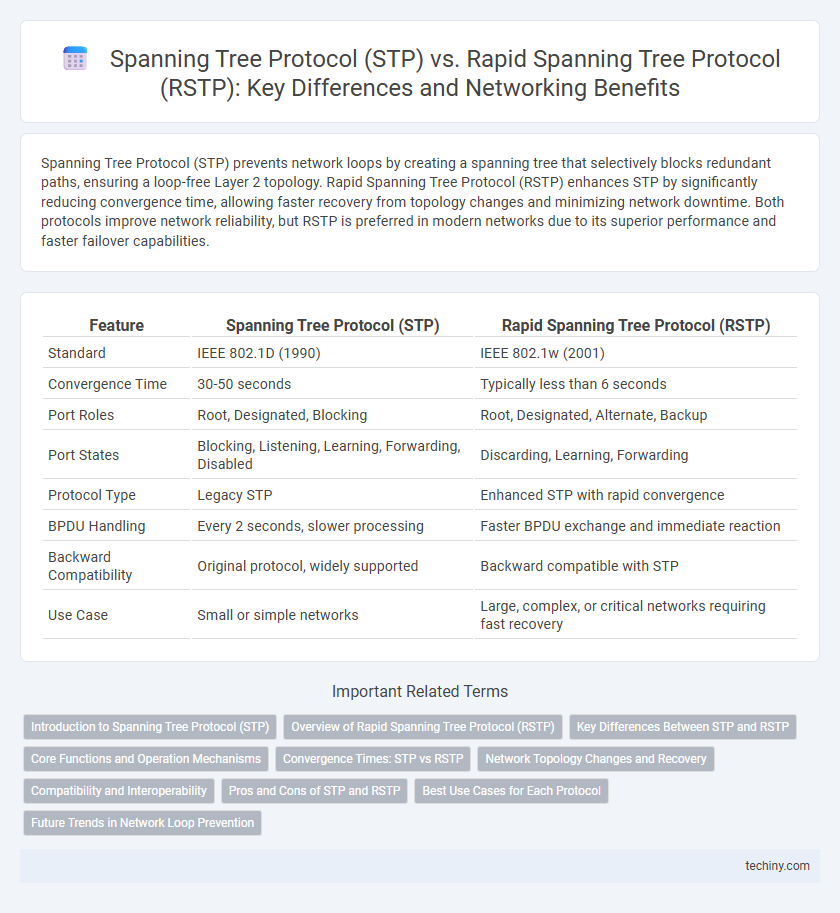

Spanning Tree Protocol (STP) vs Rapid Spanning Tree Protocol (RSTP) Infographic
