techiny.com Breakaway support is ideal for quick removal and works well with simple geometries, offering ease of use without requiring any additional post-processing chemicals. Soluble support dissolves in water or specific solvents, allowing for intricate, detailed prints with minimal surface damage and superior finish quality. Choosing between breakaway and soluble support depends on the complexity of the 3D pet model and the desired finish, balancing convenience and precision.
Table of Comparison
| Feature | Breakaway Support | Soluble Support |
|---|---|---|
| Material Type | Same or compatible with model material | Special water-soluble filament (e.g., PVA, HIPS) |
| Removal Method | Manually snapped or broken off | Dissolved in water or solvent bath |
| Surface Finish | May leave marks, requires post-processing | Smoother finish, minimal cleanup needed |
| Print Complexity | Best for simple supports, limited overhangs | Handles complex geometries and intricate supports |
| Print Time Impact | Moderate increase due to support printing | Higher due to dual extrusion and material changeover |
| Cost | Lower filament cost, no extra solvent needed | Higher material and solvent costs |
| Printer Requirements | Single extruder compatible | Dual extrusion or soluble support capable printer needed |
| Environmental Impact | Less chemical waste | Requires solvent disposal, higher environmental consideration |
Introduction to 3D Printing Supports
Breakaway support and soluble support are two primary types of 3D printing supports used to stabilize complex geometries during the printing process. Breakaway supports, made from the same material as the main print, are manually removed after printing, offering a cost-effective but labor-intensive solution. Soluble supports, typically composed of water-soluble or chemically dissolvable materials like PVA or HIPS, provide easier removal and cleaner surface finishes, enhancing print quality for intricate designs.
What Are Breakaway Supports?
Breakaway supports in 3D printing are temporary structures made from the same or a compatible material as the main print, designed to be manually removed after printing without dissolving. These supports provide stability for overhangs and complex geometries, allowing the main model to maintain accuracy and surface quality during the build process. Their ease of removal makes them ideal for prints where post-processing time must be minimized, though they may leave minor surface marks where contact occurs.
What Are Soluble Supports?
Soluble supports are specialized materials used in 3D printing that dissolve completely in a specific solvent, allowing for the creation of complex geometries without manual removal. Common soluble support materials include PVA (polyvinyl alcohol) and HIPS (high-impact polystyrene), which dissolve in water and limonene respectively. These supports enhance print quality by enabling intricate designs while minimizing surface damage and post-processing effort.
Material Compatibility and Printer Requirements
Breakaway support materials are compatible with a wide range of standard filaments such as PLA, ABS, and PETG, requiring no additional printer modifications beyond dual extrusion capability. Soluble supports, often made from materials like PVA or HIPS, demand a dual-extruder setup and specific environmental controls like moisture-proof storage due to their hygroscopic nature. Material compatibility heavily influences the choice between breakaway and soluble supports, as soluble supports enable cleaner finishes on complex geometries but necessitate printers that can handle specialized filament requirements and drying processes.
Ease of Post-Processing: Breakaway vs Soluble
Breakaway supports offer quick and straightforward post-processing by manually snapping off the support material, minimizing cleanup time but sometimes leaving surface blemishes. Soluble supports dissolve completely in water or chemical baths, ensuring smooth surface finishes and delicate detail preservation without mechanical removal effort. The choice between breakaway and soluble supports balances ease of cleanup versus surface quality and printer maintenance considerations.
Surface Finish Quality Comparison
Breakaway support structures offer a straightforward removal process but often leave behind rough surfaces and visible scarring, negatively impacting the surface finish quality of complex 3D prints. Soluble support materials, such as PVA or HIPS, dissolve completely in water or limonene, enabling smoother, cleaner surfaces with minimal post-processing on intricate geometries. Advanced printers using soluble supports achieve superior surface finish quality in overhangs and internal cavities compared to breakaway supports, making them ideal for detailed prototypes and functional parts.
Cost and Resource Considerations
Breakaway support materials typically offer lower upfront costs and require minimal post-processing, reducing labor and time expenses, making them cost-effective for simple or low-volume 3D prints. Soluble supports, while generally more expensive due to specialized materials like PVA or HIPS and the need for dedicated dissolving equipment, save resources by minimizing surface damage and improving finish quality, which can reduce waste and rework. Selecting between breakaway and soluble supports depends on balancing material costs, post-processing resources, and desired print quality for specific project requirements.
Application Suitability for Each Support Type
Breakaway supports are ideal for simpler geometries and models where manual removal is feasible without damaging the print, often used in sturdy materials like PLA or ABS. Soluble supports excel in intricate designs with complex overhangs or internal cavities, providing clean removal by dissolving in water or chemical solutions, suitable for materials like PVA or HIPS. Choosing support type depends on part complexity, material compatibility, and post-processing capabilities, ensuring optimal surface finish and structural integrity.
Environmental Impact and Waste Management
Breakaway support materials in 3D printing generate solid waste that requires manual removal and often ends up in landfills, contributing to environmental pollution. Soluble supports dissolve in water or specific solvents, reducing physical waste but potentially introducing chemical contaminants into wastewater that necessitate proper treatment. Selecting eco-friendly, biodegradable soluble supports can minimize environmental impact and improve waste management compared to traditional breakaway materials.
Tips for Choosing the Right Support System
Selecting the ideal support system for 3D printing hinges on factors such as material compatibility, ease of post-processing, and part complexity. Breakaway supports offer straightforward removal and cost efficiency for simple geometries, while soluble supports excel in producing detailed parts with intricate overhangs by dissolving away cleanly. Evaluating print orientation, surface finish requirements, and printer capabilities ensures the right balance between structural integrity and ease of cleanup in selecting either breakaway or soluble supports.

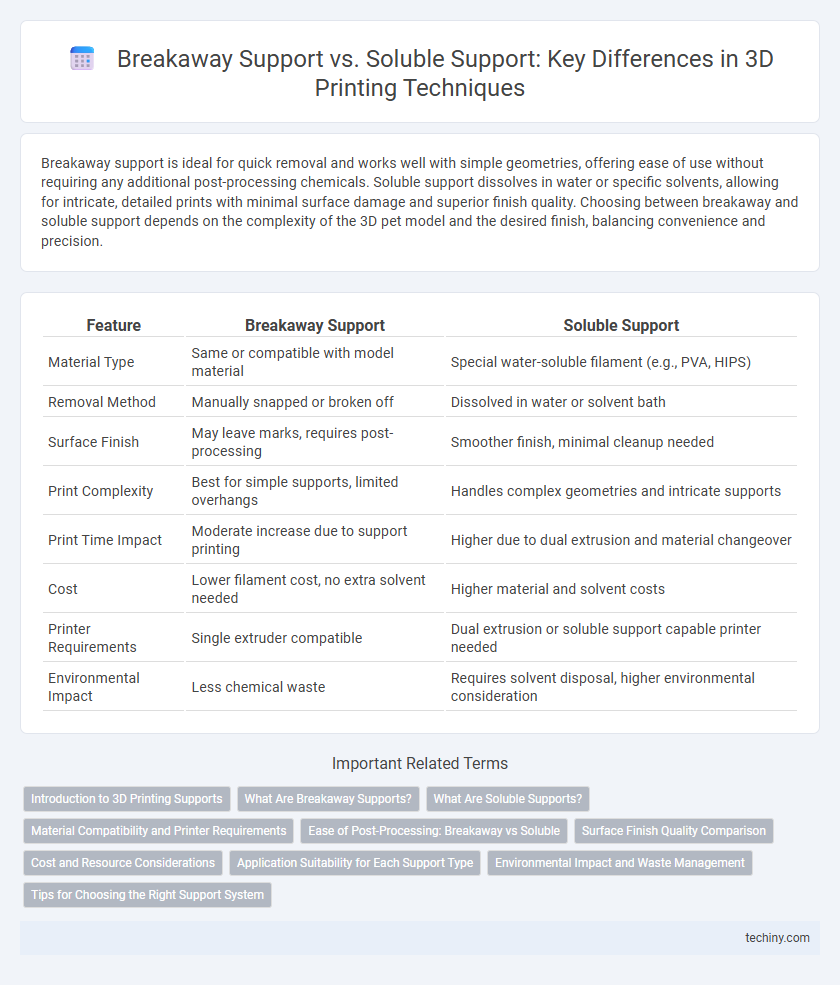

Breakaway Support vs Soluble Support Infographic
