techiny.com G-code and M-code are essential programming languages in 3D printing, with G-code controlling the movement and operation of the printer, including positioning and extrusion. M-code manages machine-specific functions like temperature settings, fan control, and other printer states critical for successful pet projects. Understanding the distinct roles of G-code and M-code enhances precision and efficiency when producing customized 3D printed pet accessories.
Table of Comparison
| Aspect | G-code | M-code |
|---|---|---|
| Function | Controls movement and positioning of the 3D printer's components | Manages machine-specific actions like turning on/off heaters and fans |
| Command Type | Motion commands (e.g., G1 - linear move) | Machine control commands (e.g., M104 - set extruder temperature) |
| Usage | Defines toolpath and print movements | Controls auxiliary functions vital to print quality |
| Examples | G0, G1, G28 (home axes), G92 (set position) | M106 (fan on), M107 (fan off), M109 (wait for temperature) |
| Optimization Focus | Precision in motion control and coordinates | Efficient management of printer hardware components |
Understanding G-code and M-code in 3D Printing
G-code in 3D printing is the primary language that controls the printer's movements, specifying coordinates, speed, and extrusion to shape the object layer by layer. M-code commands manage machine-specific functions such as temperature settings, fan control, and tool changes, ensuring optimal printing conditions. Understanding the distinction and proper use of G-code and M-code enables precise control and customization of 3D print jobs for improved quality and efficiency.
Key Differences Between G-code and M-code
G-code primarily controls the movement and positioning of the 3D printer's axes to define the print path, while M-code manages machine-specific functions such as temperature control, fan speed, and starting or stopping actions. G-code commands direct the extrusion and travel paths layer by layer, ensuring precise geometry, whereas M-code handles operational settings essential for successful printing processes. Understanding the distinction between G-code's focus on toolpath execution and M-code's system control commands is crucial for optimizing 3D printer performance.
The Role of G-code in 3D Printer Operations
G-code serves as the fundamental language for 3D printer operations, directing precise movements of the print head, extruder temperature, and layer-by-layer material deposition to construct objects. It encodes essential instructions such as coordinates, speeds, and extruder controls, enabling accurate and repeatable printing processes. Unlike M-code, which handles machine-specific commands like fan control or firmware settings, G-code ensures the core fabrication path and geometry are accurately executed during additive manufacturing.
How M-code Enhances Additive Manufacturing
M-code enhances additive manufacturing by providing precise control over machine functions such as tool changes, cooling fans, and spindle speeds, which are essential for optimized 3D printing processes. Unlike G-code, which primarily directs movements and coordinates, M-code manages the printer's auxiliary operations to ensure accuracy and improve print quality. This integration of M-code commands enables more efficient and reliable layer deposition, contributing to higher fidelity in complex 3D printed parts.
Syntax and Structure: G-code vs M-code
G-code commands primarily control the motion and positioning of the 3D printer's axes, with a syntax structure that includes a letter followed by numerical values, such as G1 X10 Y20 Z0.3. M-code commands manage machine functions like temperature, fan speed, and other hardware settings, using a similar letter-number format but typically focusing on non-movement instructions, such as M104 S200 for setting nozzle temperature. Both codes follow a command-letter plus parameters structure, but G-codes emphasize geometric control while M-codes handle machine-specific operations.
Common G-code Commands Used in 3D Printing
Common G-code commands used in 3D printing include G1 for controlled linear movement, G28 to home all axes, and G92 to set the current position of the print head. These commands direct the printer's motors and control extrusion, essential for precise layer deposition and accurate prints. Mastery of G-code commands enhances the ability to troubleshoot print quality and customize printing processes effectively.
Essential M-code Commands for 3D Printers
Essential M-code commands for 3D printers include M104 for setting the extruder temperature, M106 to control the cooling fan speed, and M140 for adjusting the bed temperature. M106 allows precise management of cooling fans, which improves print quality by controlling material solidification. M_code commands directly control hardware functions, making them crucial for optimizing printer performance and ensuring successful 3D prints.
Translating CAD Designs to G-code and M-code
Translating CAD designs into G-code involves converting 3D models into precise instructions that govern the movement of the 3D printer's axes, extrusion rates, and tool paths for accurate fabrication. M-code complements this process by managing machine-specific commands such as temperature control, fan speed, and other hardware functions essential for optimizing print quality and reliability. Together, G-code and M-code enable seamless communication between digital CAD files and physical 3D printing hardware for exact replication of designs.
Troubleshooting Errors: G-code vs M-code Issues
G-code errors in 3D printing commonly involve syntax mistakes such as incorrect coordinates or unsupported commands, which cause the printer to stop or behave unpredictably. M-code issues often relate to machine control functions like temperature settings or motor control, leading to hardware malfunctions or safety triggers if not properly addressed. Troubleshooting requires verifying command compatibility with the printer firmware and ensuring precise calibration to prevent print failures and maintain optimal operation.
Future Developments in G-code and M-code Standards
Future developments in G-code and M-code standards aim to enhance precision and expand machine compatibility for 3D printing applications. Integration of real-time sensor feedback and adaptive printing parameters will allow for smarter, more efficient printing processes. Standardization efforts are focused on improving interoperability across diverse hardware, promoting broader adoption of advanced manufacturing techniques.

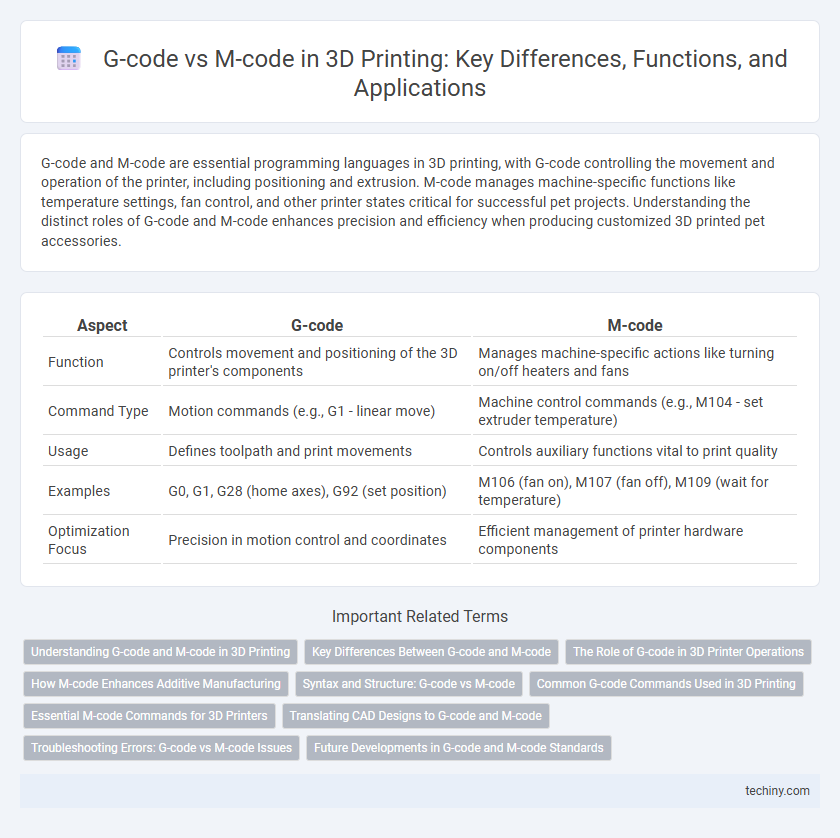

G-code vs M-code Infographic
