techiny.com Thermal pads provide a reliable interface for heat dissipation between electronic components and heat sinks, ensuring efficient thermal management on PCB surfaces. Thermal vias enhance heat transfer by creating vertical pathways that conduct heat from the component side to the PCB's inner or opposite layer, improving overall thermal performance. Combining both methods optimizes heat dissipation, crucial for maintaining device reliability and preventing thermal failure in hardware engineering.
Table of Comparison
| Feature | Thermal Pad | Thermal Via |
|---|---|---|
| Function | Transfers heat between surfaces, e.g., IC and heat sink | Transfers heat through PCB layers |
| Material | Thermally conductive silicone or rubber | Copper-plated holes filled or unfilled |
| Thermal Conductivity | Typically 1-6 W/m*K | Thermal conductivity depends on via size and plating thickness; can exceed 50 W/m*K in optimized designs |
| Application | Surface mounting to improve heat dissipation between components and heat sinks | Used in PCBs to conduct heat from component pads to internal or bottom copper layers |
| Installation | Placed manually or automated between device and heat sink | Integrated during PCB fabrication process |
| Cost Impact | Low to moderate per unit | Increases PCB manufacturing cost based on via count and complexity |
| Thermal Resistance | Moderate; depends on pad thickness and contact quality | Low if via array is dense and properly designed |
| Mechanical Role | Provides cushioning and gap filling | No mechanical cushioning; purely thermal transfer |
Introduction to Thermal Management in Hardware Engineering
Thermal management in hardware engineering is critical for maintaining optimal device performance and longevity by efficiently dissipating heat generated by electronic components. Thermal pads provide a flexible interface for heat transfer between heat sources and heat sinks, while thermal vias offer a conductive path through PCB layers to enhance thermal conductivity and spread heat away from hotspots. Selecting the appropriate thermal solution depends on factors such as thermal conductivity, mechanical stress tolerance, and design constraints to ensure efficient heat dissipation and system reliability.
Understanding Thermal Pads: Composition and Function
Thermal pads consist of silicone or fiberglass substrates infused with thermally conductive materials like ceramic or graphite to facilitate efficient heat transfer between electronic components and heat sinks. Their primary function is to fill microscopic air gaps and irregularities on surfaces, enhancing thermal conductivity and preventing overheating in circuit boards. Unlike thermal vias that conduct heat vertically through PCB layers, thermal pads provide a flexible, conformable interface for surface-mounted components.
Exploring Thermal Vias: Design and Implementation
Thermal vias play a crucial role in hardware engineering by enhancing heat dissipation through printed circuit boards (PCBs), effectively reducing hotspot temperatures. Their design involves precise placement and optimal via diameter, typically ranging from 0.3 to 0.5 mm, to maximize thermal conductivity between layers. Implementing thermal vias requires careful consideration of via fill materials and pad sizes to ensure mechanical reliability and efficient heat transfer in high-power electronic devices.
Key Differences Between Thermal Pads and Thermal Vias
Thermal pads provide a physical interface between heat-generating components and heat sinks, enhancing heat dissipation through direct contact with high thermal conductivity materials. Thermal vias, embedded within the PCB, facilitate vertical heat transfer by connecting the surface layers to internal copper planes, effectively spreading heat away from critical components. Unlike thermal pads that primarily aid surface heat transfer, thermal vias improve buried thermal management by enabling efficient conduction through multilayer circuit boards.
Thermal Conductivity: Comparing Performance
Thermal pads typically feature thermal conductivity values ranging from 1 to 6 W/mK, facilitating effective heat transfer between components and heat sinks through direct surface contact. Thermal vias, composed of copper-filled holes within PCB layers, exhibit significantly higher thermal conductivity, often exceeding 200 W/mK, enabling efficient vertical heat dissipation through the board. Due to their superior conductivity and direct heat pathway, thermal vias outperform thermal pads in managing high-power density applications requiring rapid heat spreading and minimal thermal resistance.
Application Scenarios: When to Use Thermal Pads vs. Thermal Vias
Thermal pads are ideal for applications requiring direct and efficient heat transfer between components and heat sinks, commonly used in power electronics and LED assemblies for effective surface-to-surface conduction. Thermal vias are preferred in multilayer printed circuit boards (PCBs) where heat dissipation through internal layers is crucial, often applied in high-density designs such as CPUs and RF modules to channel heat away from hotspots vertically. Selecting thermal pads or vias depends on factors like component layout, thermal resistance requirements, and the need for electrical isolation versus vertical heat conduction.
Design Considerations and Limitations
Thermal pads provide direct interface for heat dissipation between components and heat sinks, offering limited thickness control and potential mechanical stress issues in compact hardware designs. Thermal vias enable efficient vertical heat transfer through PCB layers but require careful placement to avoid signal integrity problems and manufacturing complexity. Design considerations must balance thermal conductivity, mechanical reliability, and PCB layout constraints to optimize heat management in hardware engineering.
Cost Analysis: Budget Implications for Each Solution
Thermal pads typically offer a lower upfront cost due to simpler materials and installation processes, making them budget-friendly for small-scale or prototype projects. Thermal vias, while initially more expensive because of complex PCB fabrication and additional labor, provide superior heat dissipation, potentially reducing long-term cooling system expenses. Evaluating total cost of ownership reveals thermal vias may deliver better value in high-performance applications despite higher initial investment.
Reliability and Lifespan in Electronic Assemblies
Thermal pads provide consistent heat dissipation through direct contact with heat sources, enhancing component reliability by reducing thermal stress and extending lifespan in electronic assemblies. Thermal vias offer efficient vertical heat conduction within multilayer PCBs, improving thermal management and preventing hotspots that can degrade solder joints and components over time. Selecting the appropriate thermal solution depends on assembly design, but combining pads and vias often achieves optimal reliability and prolonged operational life.
Future Trends in Thermal Interface Technologies
Future trends in thermal interface technologies emphasize enhanced heat dissipation through advanced materials like graphene-infused thermal pads and high-density thermal vias with optimized plating thickness. Integration of flexible, conformal thermal pads with smart sensors enables real-time temperature monitoring and adaptive thermal management in compact electronics. Emerging 3D thermal vias equipped with microchannel cooling systems offer significant improvements in thermal conductivity, supporting the miniaturization and increased power density of next-generation hardware platforms.

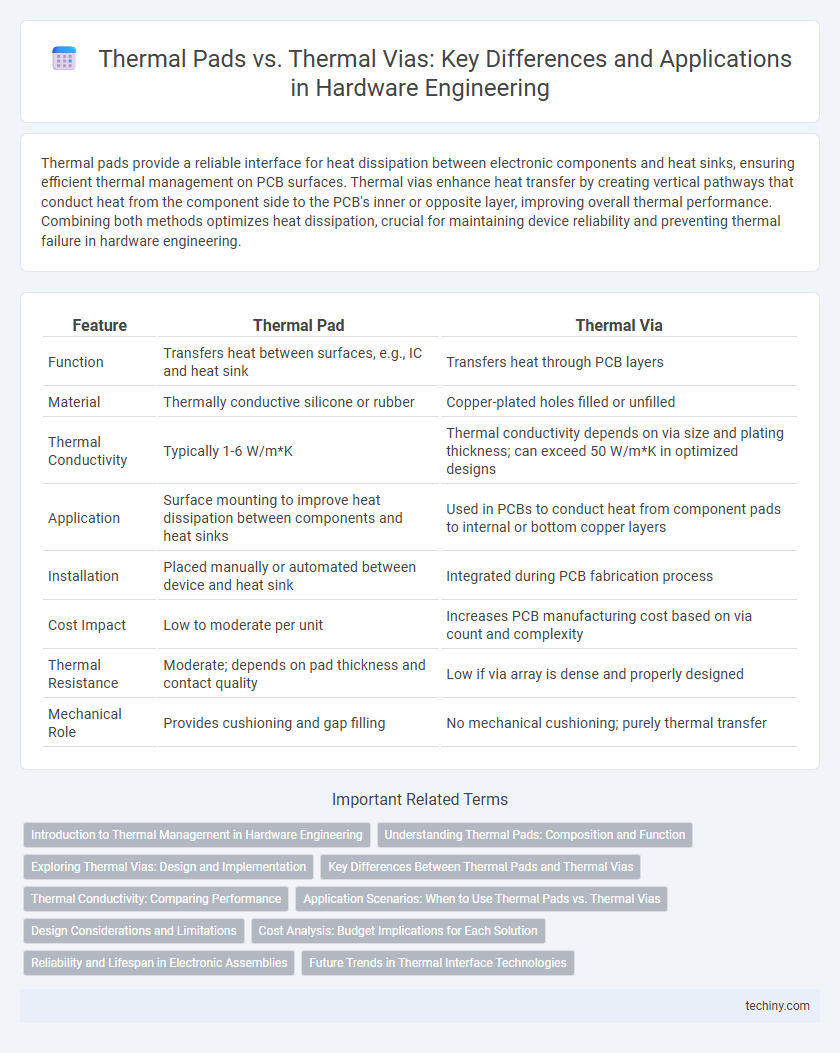

Thermal Pad vs Thermal Via Infographic
