techiny.com IGMP (Internet Group Management Protocol) and MLD (Multicast Listener Discovery) are protocols used to manage multicast group memberships in IP networks, with IGMP designed specifically for IPv4 and MLD serving IPv6 networks. Both protocols enable efficient delivery of multicast traffic by allowing routers to track hosts interested in receiving specific multicast streams, minimizing unnecessary data transmission. Understanding the differences and proper application of IGMP and MLD is essential for optimizing multicast networking performance across diverse IP environments.
Table of Comparison
| Feature | IGMP (Internet Group Management Protocol) | MLD (Multicast Listener Discovery) |
|---|---|---|
| Protocol Version | IGMPv1, IGMPv2, IGMPv3 | MLDv1, MLDv2 (IPv6 equivalent of IGMPv2/3) |
| Network Layer | IPv4 Multicast | IPv6 Multicast |
| Function | Manages host membership in IPv4 multicast groups | Manages host membership in IPv6 multicast groups |
| Message Types | Membership Query, Membership Report, Leave Group | Listener Query, Listener Report, Listener Done |
| Compatibility | IPv4-only | IPv6-only |
| Role in Multicast | Enables routers to learn which multicast groups have active listeners | Enables routers to discover IPv6 multicast listeners on a link |
| Multicast Addressing | Uses IPv4 multicast addresses (224.0.0.0 to 239.255.255.255) | Uses IPv6 multicast addresses (FF00::/8) |
Introduction to IGMP and MLD Protocols
Internet Group Management Protocol (IGMP) manages IPv4 multicast group memberships, enabling efficient communication between hosts and multicast routers within a local network segment. Multicast Listener Discovery (MLD) serves a similar function for IPv6 networks, allowing routers to discover multicast listeners and manage group memberships effectively. Both protocols operate at the network layer and optimize multicast traffic by regulating group membership information exchange.
Core Functions of IGMP in IPv4 Networks
IGMP (Internet Group Management Protocol) manages multicast group memberships in IPv4 networks by enabling hosts to inform routers about their desire to receive specific multicast traffic. It facilitates efficient delivery of multicast streams, reducing unnecessary network load and optimizing bandwidth usage. Core functions include membership reporting, group querying, and managing timers to maintain up-to-date multicast group information within local IPv4 subnets.
Key Roles of MLD in IPv6 Multicasting
MLD (Multicast Listener Discovery) plays a crucial role in IPv6 multicasting by managing group memberships and enabling efficient data delivery to multiple receivers. Unlike IGMP, which operates in IPv4 environments, MLD supports IPv6 protocol extensions and facilitates multicast traffic control in IPv6 networks. MLD optimizes bandwidth usage and enhances network scalability by allowing routers to query and maintain multicast listener information dynamically.
Packet Structure Comparison: IGMP vs MLD
IGMP (Internet Group Management Protocol) packets feature a simpler fixed header with fields for type, maximum response time, checksum, and group address, facilitating IPv4 multicast group management. MLD (Multicast Listener Discovery) packets, designed for IPv6, incorporate additional complexity with ICMPv6 headers including type, code, checksum, maximum response delay, reserved bits, and multicast address, allowing for enhanced control and security. The structural differences in IGMP and MLD packet formats reflect their adaptation to IPv4 and IPv6 environments, impacting multicast group communication efficiency.
Operational Differences Between IGMP and MLD
IGMP (Internet Group Management Protocol) operates exclusively on IPv4 networks to manage multicast group memberships, while MLD (Multicast Listener Discovery) functions within IPv6 environments for similar purposes. IGMP uses three versions with varying message types like Membership Queries and Reports, whereas MLD leverages ICMPv6 messages such as Listener Query and Listener Report. IGMP primarily manages multicast group subscriptions at the IPv4 host-router level, whereas MLD integrates more tightly with IPv6's addressing and neighbor discovery mechanisms to optimize multicast listener management.
Use Cases: When to Use IGMP or MLD
IGMP (Internet Group Management Protocol) is used primarily for managing multicast group memberships on IPv4 networks, ideal for applications like IPTV and streaming media within IPv4 environments. MLD (Multicast Listener Discovery) serves the same purpose for IPv6 networks, enabling efficient multicast group management in IPv6 scenarios such as next-generation video conferencing and IoT multicast traffic. Use IGMP when operating on IPv4 infrastructure and MLD for IPv6 networks to optimize multicast traffic and ensure compatibility with the respective IP version.
Security Considerations in IGMP and MLD
IGMP (Internet Group Management Protocol) and MLD (Multicast Listener Discovery) both manage multicast group memberships but differ in security mechanisms due to their use in IPv4 and IPv6 environments respectively. IGMP lacks built-in authentication features, making it vulnerable to spoofing and denial-of-service attacks, whereas MLD benefits from IPv6's inherent security features like IPsec that enhance authentication and integrity protection. Network administrators should deploy access control lists, implement multicast filtering, and use network monitoring tools to mitigate threats in IGMP, while leveraging IPv6 security enhancements to secure MLD traffic effectively.
Performance Impacts in Modern Networks
IGMP (Internet Group Management Protocol) and MLD (Multicast Listener Discovery) differ fundamentally in handling IPv4 and IPv6 multicast traffic, directly impacting network performance. IGMP manages multicast group memberships in IPv4 environments, offering lower latency due to simpler state maintenance, while MLD is designed for IPv6, supporting a broader address space and enhanced listener discovery mechanisms, which can increase processing overhead. Modern networks leveraging IPv6 must optimize MLD implementations to mitigate increased CPU and memory usage, ensuring efficient multicast distribution without degrading overall network throughput.
Troubleshooting IGMP and MLD Issues
Troubleshooting IGMP and MLD issues involves verifying multicast group membership and ensuring proper communication between routers and hosts. Key steps include checking IGMPv2 or IGMPv3 protocol versions for IGMP, and MLDv1 or MLDv2 for IPv6, reviewing router configurations for IGMP snooping and querier status, and analyzing multicast traffic flow with packet capture tools like Wireshark to detect dropped or malformed messages. Monitoring interface and group statistics on network devices helps identify membership report loss, query timeouts, or filtering inconsistencies causing multicast group join failures.
Future Evolution of Multicast Group Management
IGMP (Internet Group Management Protocol) and MLD (Multicast Listener Discovery) will evolve to support IPv6 network scalability and enhanced multicast efficiency, adapting to future demands for real-time data distribution. Advanced multicast group management will incorporate AI-driven traffic optimization and dynamic membership control to reduce latency and improve bandwidth usage. Emerging standards aim to integrate seamless interoperability between IGMP and MLD, enabling unified protocols across mixed IPv4/IPv6 environments.

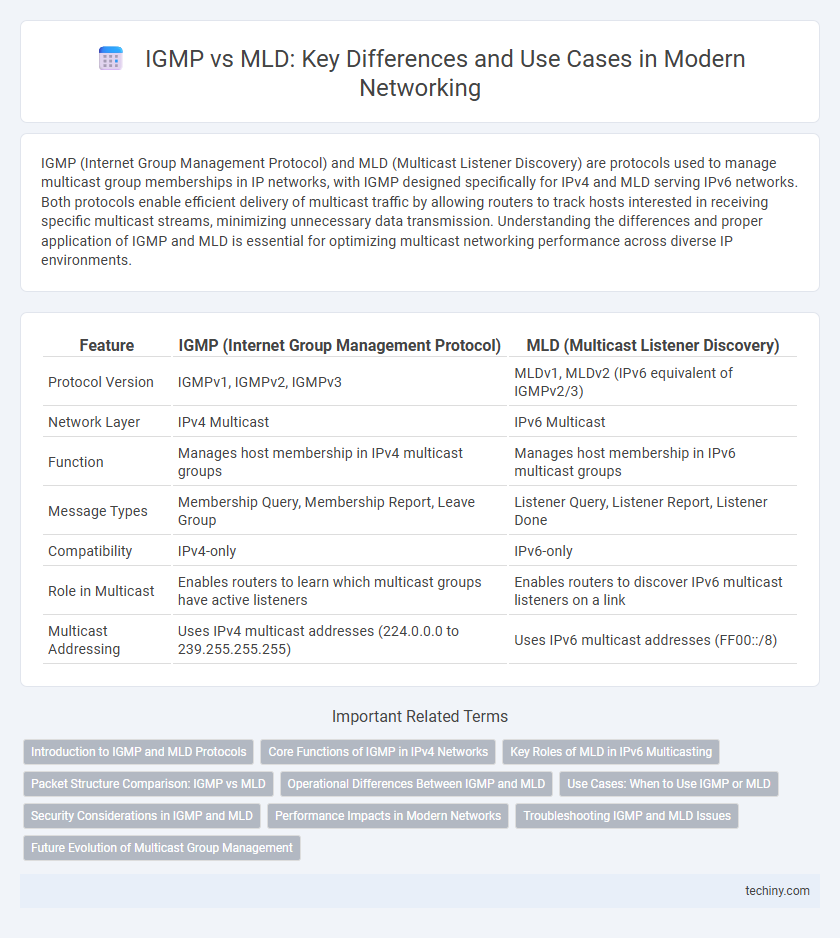

IGMP vs MLD Infographic
