techiny.com LVDS (Low-Voltage Differential Signaling) offers higher data rates and improved noise immunity compared to TTL (Transistor-Transistor Logic), making it ideal for high-speed communication in hardware engineering. LVDS consumes less power due to its differential signaling method, which reduces electromagnetic interference and enhances signal integrity over longer distances. TTL, while simpler and cost-effective for short-range, low-speed applications, lacks the robustness and efficiency required for modern high-frequency hardware designs.
Table of Comparison
| Feature | LVDS (Low Voltage Differential Signaling) | TTL (Transistor-Transistor Logic) |
|---|---|---|
| Signal Type | Differential | Single-ended |
| Voltage Levels | Typically 350 mV peak-to-peak | 0 V (Low) to 5 V (High) |
| Data Rate | Up to several Gbps | Up to 100 Mbps |
| Power Consumption | Low (~0.1 W per link) | Higher (~1 W per channel) |
| Noise Immunity | High due to differential signaling | Lower, sensitive to EMI |
| Cable Length | Up to 10 meters without repeaters | Typically less than 0.5 meters |
| Application | High-speed data transmission, flat panel displays, communications | Simple digital logic, microcontroller inputs |
| Cost | Moderate to high | Low |
Introduction to LVDS and TTL in Hardware Engineering
Low-Voltage Differential Signaling (LVDS) and Transistor-Transistor Logic (TTL) are crucial signaling standards in hardware engineering, each optimized for specific applications. LVDS uses differential signaling to achieve high-speed data transmission with low power consumption and minimal electromagnetic interference, making it ideal for high-frequency communication interfaces. TTL operates with single-ended signaling based on bipolar transistors and is commonly used in slower, simpler digital circuits due to its robustness and ease of integration.
Fundamental Principles: How LVDS and TTL Work
LVDS (Low-Voltage Differential Signaling) transmits data using differential pairs with low voltage swings, minimizing electromagnetic interference and enabling high-speed communication over longer distances. TTL (Transistor-Transistor Logic) operates with single-ended signals using higher voltage levels, making it simpler but more susceptible to noise and signal degradation. The fundamental distinction lies in LVDS's use of differential signaling for noise immunity versus TTL's single-ended voltage-based logic levels.
Signal Transmission Characteristics: LVDS vs TTL
LVDS (Low-Voltage Differential Signaling) offers superior noise immunity and higher data transmission rates compared to TTL (Transistor-Transistor Logic) due to its differential signaling method, which reduces electromagnetic interference and signal degradation. TTL uses single-ended signaling, making it more susceptible to noise and signal distortion over long distances or high-speed applications. The low voltage swing and balanced current flow in LVDS enable efficient, high-speed data transmission with lower power consumption than TTL, which operates at higher voltage levels and dissipates more power.
Power Consumption Comparison: LVDS vs TTL
LVDS (Low-Voltage Differential Signaling) significantly reduces power consumption compared to TTL (Transistor-Transistor Logic) by operating at lower voltage swings typically around 350mV, while TTL uses 5V levels, resulting in higher power dissipation. LVDS's differential signaling also minimizes current flow through transmission lines, further enhancing energy efficiency especially in high-speed data applications. This makes LVDS preferable in systems where low power and heat dissipation are critical, such as portable devices and high-density interconnects.
Data Rate and Bandwidth: LVDS vs TTL
LVDS (Low-Voltage Differential Signaling) supports significantly higher data rates, typically up to several Gbps, compared to TTL (Transistor-Transistor Logic), which is generally limited to tens of Mbps. The differential signaling in LVDS minimizes noise and electromagnetic interference, enabling greater bandwidth and more reliable high-speed data transmission. TTL's single-ended signaling offers lower bandwidth, making LVDS the preferred choice for high-speed hardware engineering applications requiring robust data rate and bandwidth performance.
Noise Immunity and Signal Integrity
LVDS (Low-Voltage Differential Signaling) provides superior noise immunity compared to TTL (Transistor-Transistor Logic) due to its differential signaling method, which effectively cancels out common-mode noise and reduces electromagnetic interference. Signal integrity in LVDS is maintained over longer distances and higher frequencies, thanks to its low voltage swing and balanced transmission lines, minimizing signal distortion and crosstalk. In contrast, TTL signals, being single-ended, are more susceptible to noise and signal degradation, limiting their performance in high-speed or electrically noisy environments.
Applications and Use Cases of LVDS and TTL
LVDS (Low-Voltage Differential Signaling) is widely used in high-speed data transmission applications such as display interfaces, camera modules, and communication systems due to its low power consumption and high noise immunity. TTL (Transistor-Transistor Logic) remains prevalent in control circuits, microcontroller interfacing, and legacy digital systems where lower speed and simplicity are sufficient. LVDS is preferred in environments requiring long-distance signal integrity, while TTL suits short-range, cost-sensitive applications with less stringent noise constraints.
PCB Design Considerations for LVDS vs TTL
LVDS (Low-Voltage Differential Signaling) requires controlled impedance PCB traces, typically 100 ohms differential pairs, to minimize signal reflections and maintain signal integrity over longer distances compared to TTL (Transistor-Transistor Logic), which uses single-ended signals and generally requires 50-ohm impedance for individual traces. PCB layout for LVDS demands careful differential pair routing with tight coupling and minimal skew, while TTL routing can be less stringent but must avoid noise coupling due to its susceptibility to electromagnetic interference. Power supply noise and ground bounce impact TTL signals more significantly, necessitating robust decoupling and grounding strategies in PCB design.
Cost Analysis: LVDS vs TTL
LVDS (Low Voltage Differential Signaling) typically incurs higher initial costs due to more complex transceiver components and differential pair PCB routing, while TTL (Transistor-Transistor Logic) benefits from simpler, cheaper single-ended signal drivers and legacy compatibility. However, LVDS offers lower power consumption and better noise immunity, reducing long-term operational expenses and enhancing signal reliability in high-speed applications. Cost analysis must also consider factors such as board space, signal integrity requirements, and potential savings from fewer error corrections and electromagnetic interference mitigation with LVDS.
Choosing the Right Interface: LVDS or TTL?
Choosing the right interface between LVDS (Low-Voltage Differential Signaling) and TTL (Transistor-Transistor Logic) depends on factors such as signal integrity, data rate, and power consumption. LVDS offers high-speed data transmission with low electromagnetic interference (EMI) and reduced power usage, making it ideal for long-distance communication and high-frequency applications. TTL is suitable for short-distance, low-speed signals where simplicity and compatibility with 5V logic levels are required.

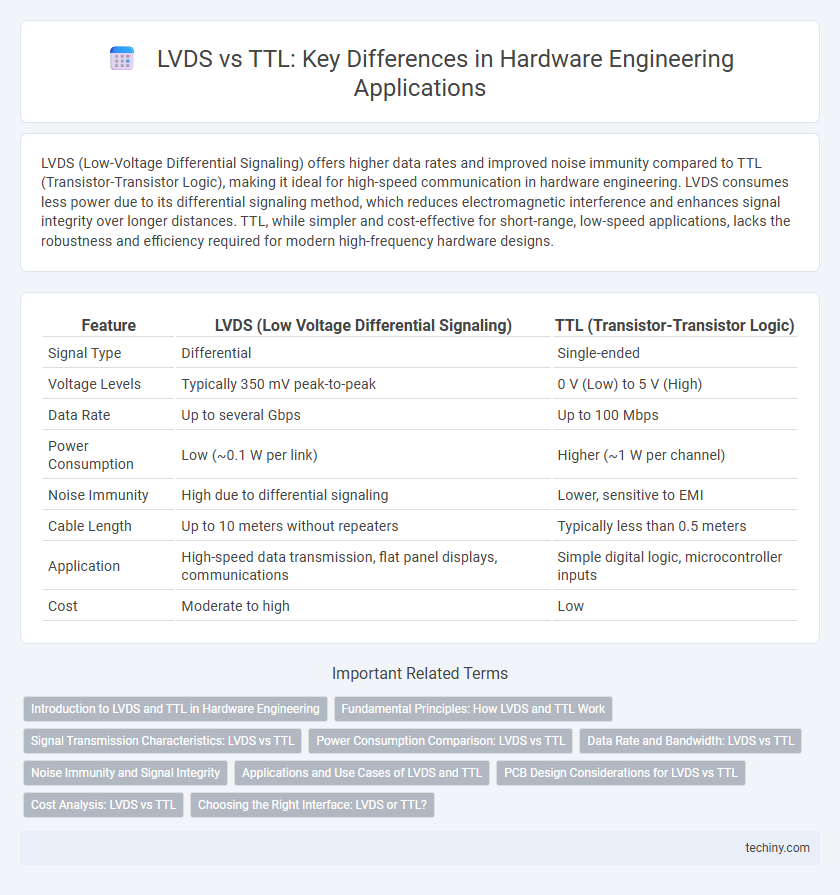

LVDS vs TTL Infographic
