techiny.com Reed switches operate using magnetic fields that physically close or open a set of contacts, making them highly reliable for simple on/off applications with minimal power consumption. Hall effect sensors detect magnetic fields electronically through a semiconductor element, offering precise, contactless measurements and suitability for more complex sensing tasks like speed or position detection. Reed switches excel in durability and cost-effectiveness for basic switching, while Hall effect sensors provide greater sensitivity and versatility in modern hardware engineering designs.
Table of Comparison
| Feature | Reed Switch | Hall Effect Sensor |
|---|---|---|
| Operating Principle | Magnetic reed contacts closing | Semiconductor effect detecting magnetic field |
| Output Type | Discrete on/off contact | Analog or digital voltage output |
| Power Consumption | None (passive device) | Requires power supply (low power) |
| Sensitivity | Medium, depends on magnet strength | High, precise magnetic field detection |
| Durability | Mechanical wear over time | Solid-state, no mechanical parts |
| Switching Speed | Slow (milliseconds) | Fast (microseconds) |
| Environmental Resistance | Sensitive to vibration and shock | Good resistance to vibration and shock |
| Typical Applications | Position sensing, security systems | Motor control, current sensing, proximity detection |
| Cost | Low cost | Higher cost |
Introduction to Magnetic Sensing Technologies
Reed switches and Hall effect sensors serve as fundamental components in magnetic sensing technologies, each leveraging distinct physical principles for detection. Reed switches operate through the mechanical closure of ferromagnetic reeds in response to an external magnetic field, offering simple, low-power solutions ideal for proximity and position sensing. Hall effect sensors utilize the voltage generated perpendicular to current flow in a semiconductor when exposed to a magnetic field, enabling precise, contactless measurements with higher reliability and integration capabilities in modern hardware engineering applications.
Working Principle of Reed Switches
Reed switches operate using two ferromagnetic blades sealed within a glass envelope that close or open the circuit when exposed to an external magnetic field, enabling contact actuation without physical contact. The magnetic field magnetizes the reeds, causing them to attract and complete the electrical circuit, making reed switches highly reliable for detecting magnetic presence. Their simple electromagnetic operation ensures low power consumption and resistance to environmental contaminants, ideal for hardware applications requiring precise and durable magnetic sensing.
Hall Effect Sensors: How They Operate
Hall Effect sensors operate by detecting magnetic fields through the voltage generated across a conductor when exposed to a perpendicular magnetic field, based on the Hall effect principle. These sensors convert the magnetic field strength into an electrical signal, enabling precise and contactless position or speed measurement. Their solid-state design offers durability, high sensitivity, and reliability compared to mechanical alternatives like reed switches.
Key Differences Between Reed Switches and Hall Effect Sensors
Reed switches operate using magnetic contact closure, providing a simple, low-power solution ideal for detecting magnetic fields in hardware engineering applications, while Hall effect sensors use semiconductor elements to measure magnetic flux density with higher precision and faster response times. Reed switches are passive devices that can suffer from mechanical wear, whereas Hall effect sensors offer solid-state reliability and can detect magnetic polarity changes. The choice between these two depends on application requirements such as switching speed, durability, sensitivity, and environmental robustness.
Performance Comparison: Sensitivity and Accuracy
Reed switches offer mechanical simplicity with moderate sensitivity but are limited by slower response times and susceptibility to wear, affecting their accuracy in dynamic applications. Hall effect sensors provide higher sensitivity and precise digital output, enabling superior accuracy and reliability in detecting magnetic fields without physical contact. In performance-critical hardware engineering, Hall effect sensors outperform reed switches in both sensitivity and accuracy for real-time position and speed sensing applications.
Power Consumption and Energy Efficiency
Reed switches consume virtually no power when idle, making them highly energy-efficient for low-power applications, as they rely on a mechanical contact actuated by a magnetic field. Hall effect sensors require continuous power to operate their electronic components, resulting in higher power consumption but enabling faster response times and precise digital output. Selecting between the two depends on the application's energy budget and performance requirements, with reed switches preferred for ultra-low power usage and Hall sensors favored for enhanced functionality.
Durability and Mechanical Reliability
Reed switches, composed of ferromagnetic reeds sealed in a glass envelope, offer excellent mechanical reliability due to their simple design and resistance to environmental contaminants, but their physical contacts wear out with repeated actuation. Hall effect sensors, being solid-state devices with no moving parts, provide superior durability and consistent performance over time, especially in high-vibration or harsh environments. The absence of mechanical wear in Hall effect sensors results in a longer lifespan and lower maintenance compared to reed switches in durable hardware engineering applications.
Application Scenarios in Modern Hardware Engineering
Reed switches excel in simple, low-power applications such as security systems, position sensing, and proximity detection due to their reliability and magnetic actuation without power consumption. Hall effect sensors are preferred in dynamic environments like automotive electronics, motor control, and rotary encoders, offering precise digital or analog output and immunity to mechanical wear. Modern hardware engineering leverages reed switches for cost-effective, low-current applications while hall effect sensors dominate in high-performance, real-time sensing scenarios requiring durability and accuracy.
Cost Analysis: Reed Switches vs Hall Effect Sensors
Reed switches generally offer a lower upfront cost compared to Hall effect sensors, making them an economical choice for simple on/off position sensing applications. Hall effect sensors involve higher initial expenses due to integrated circuits and semiconductor materials but provide enhanced durability and immunity to environmental factors, potentially reducing long-term maintenance costs. The total cost analysis should consider not only the sensor price but also lifecycle expenses, reliability requirements, and the complexity of installation in the target hardware system.
Choosing the Right Sensor for Your Project
Reed switches offer simplicity, low power consumption, and excellent reliability for detecting magnetic fields in low-speed or low-frequency applications. Hall Effect sensors provide precise, continuous position sensing and can handle higher speeds with better durability in harsh environments. Selecting the right sensor depends on requirements such as switching speed, environmental conditions, power consumption, and output signal type.

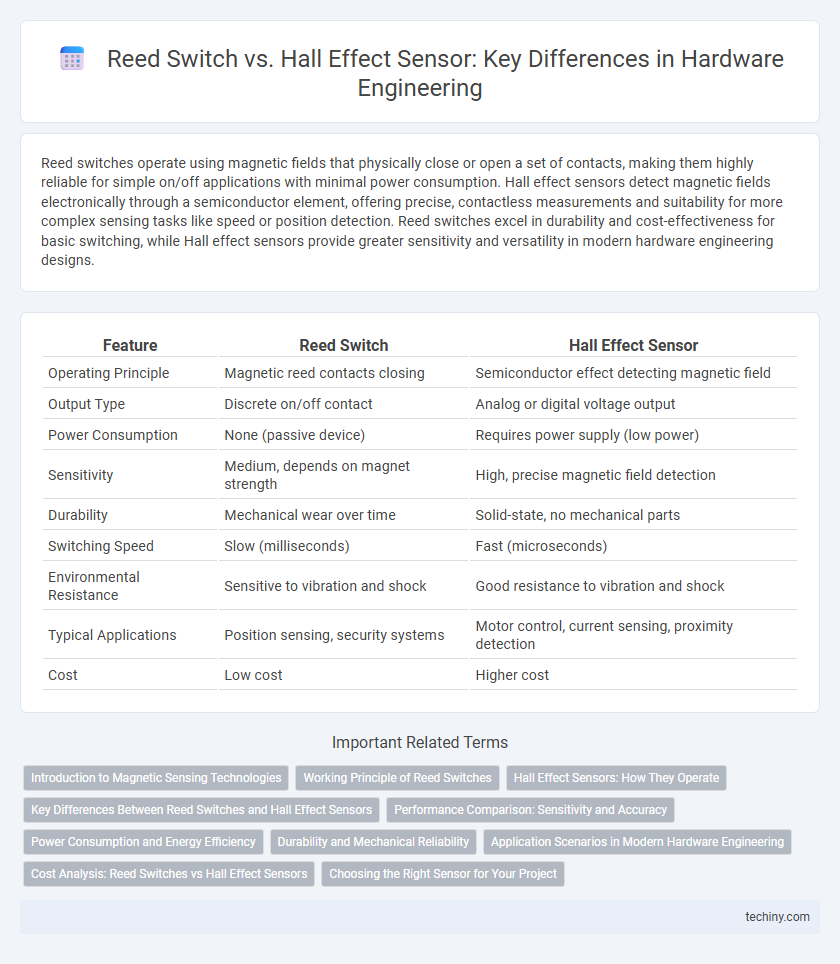

Reed Switch vs Hall Effect Sensor Infographic
