techiny.com Spanning Tree Protocol (STP) prevents network loops by creating a tree structure with one active path between switches, but it converges slowly, causing temporary downtime during topology changes. Rapid Spanning Tree Protocol (RSTP) improves network performance by significantly reducing convergence time through faster detection and response to link failures. RSTP is backward compatible with STP, allowing seamless integration in existing networks while providing enhanced stability and speed.
Table of Comparison
| Feature | Spanning Tree Protocol (STP) | Rapid Spanning Tree Protocol (RSTP) |
|---|---|---|
| Standard | IEEE 802.1D | IEEE 802.1w |
| Convergence Time | 30-50 seconds | 1-10 seconds |
| Port States | Blocking, Listening, Learning, Forwarding, Disabled | Discarding, Learning, Forwarding |
| Topology Changes | Slow updates, can cause loops during topology change | Fast topology updates, prevents loops effectively |
| Compatibility | Supported by most legacy switches | Backward compatible with STP |
| Use Case | Basic redundancy in small networks | Fast failover in larger, dynamic networks |
Introduction to Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP)
Spanning Tree Protocol (STP), defined by IEEE 802.1D, prevents network loops by creating a loop-free logical topology in Ethernet networks through the election of a root bridge and blocking redundant paths. Rapid Spanning Tree Protocol (RSTP), standardized as IEEE 802.1w, enhances STP by significantly reducing convergence time from 30-50 seconds to a few seconds, improving network stability and downtime. Both protocols maintain a loop-free network, but RSTP uses faster role transitions and handshake mechanisms to accelerate the process of reconfiguring blocked ports.
Core Principles: How STP and RSTP Operate
Spanning Tree Protocol (STP) prevents network loops by creating a tree structure through selecting a root bridge and blocking redundant paths, using a slow convergence process based on Bridge Protocol Data Units (BPDUs) with timers. Rapid Spanning Tree Protocol (RSTP) enhances STP by providing faster convergence using edge ports and proposal/agreement handshakes to quickly transition port states, minimizing network downtime. Both protocols rely on root bridge election but RSTP improves operational efficiency with rapid state transitions to maintain loop-free topologies in complex LANs.
Key Differences Between STP and RSTP
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) differ primarily in convergence speed and port roles; RSTP significantly reduces network downtime by quickly transitioning ports to forwarding state using proposal and agreement mechanisms. STP uses a slower algorithm based on timers like listening and learning states, leading to convergence times up to 50 seconds, while RSTP achieves convergence typically within a few seconds. RSTP introduces new port roles such as Alternate and Backup ports for enhanced redundancy, which STP lacks, providing faster recovery in case of topology changes.
Convergence Speed: STP vs RSTP
Rapid Spanning Tree Protocol (RSTP) significantly outperforms Spanning Tree Protocol (STP) in convergence speed, reducing network downtime during topology changes from 30 to 50 seconds in STP to typically less than 10 seconds. RSTP achieves faster convergence through rapid transition of ports to forwarding states and enhanced handshake mechanisms between switches. This improvement minimizes network disruptions, optimizing performance in dynamic Ethernet environments.
Network Topology Changes and Protocol Responses
Spanning Tree Protocol (STP) detects network topology changes with a convergence time typically ranging from 30 to 50 seconds, causing temporary network disruptions. Rapid Spanning Tree Protocol (RSTP) reduces convergence time to a few milliseconds by quickly recalculating the spanning tree and rapidly transitioning port states. RSTP enhances network resilience and minimizes downtime in dynamic Layer 2 environments compared to traditional STP.
Compatibility and Interoperability Considerations
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) maintain backward compatibility, enabling interoperability between legacy switches running STP and newer devices supporting RSTP within the same network. RSTP can seamlessly interoperate with STP ports by defaulting to STP operation on those interfaces, preserving network stability during mixed-protocol deployment. Network administrators must verify that all devices support these protocols' standards--IEEE 802.1D for STP and IEEE 802.1w for RSTP--to ensure full protocol compatibility and optimized convergence performance.
Configuration and Implementation Best Practices
Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) differ significantly in their configuration and implementation best practices, with RSTP offering faster convergence and simplified setup through edge port and point-to-point link settings. Best practices include enabling RSTP on all switches to avoid compatibility issues and configuring port roles appropriately to reduce network downtime. Proper implementation involves consistent VLAN assignment, priority tuning for root bridge election, and regular verification of RSTP state transitions to optimize network performance and stability.
Scalability and Performance in Modern Networks
Rapid Spanning Tree Protocol (RSTP) significantly improves scalability and performance over the traditional Spanning Tree Protocol (STP) by reducing convergence time from 30-50 seconds to a few milliseconds, crucial for modern large-scale networks. RSTP supports faster topology changes and better link utilization, enabling more efficient handling of increased network size and complexity. Its enhanced mechanisms for port roles and state transitions optimize bandwidth and minimize downtime in dynamic enterprise and data center environments.
Common Issues and Troubleshooting for STP and RSTP
Common issues with Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) often stem from misconfigurations, such as incorrect bridge priority settings or inconsistent port states leading to network loops or broadcast storms. Troubleshooting requires verifying root bridge election, ensuring consistent STP mode across devices, and examining port status to detect blocking or discarding states that may indicate topology changes or faulty links. Deploying tools like BPDU guard and Root Guard helps mitigate topology instability by preventing unauthorized device connections and preserving the intended spanning tree hierarchy.
Choosing the Right Protocol for Your Network
Choosing the right protocol between Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) depends on network size, topology, and convergence requirements. RSTP significantly reduces network downtime with faster convergence times, making it ideal for large or dynamic networks where minimizing loops is critical. STP, although slower to converge, may suffice for smaller or less complex network environments where rapid failover is not as crucial.

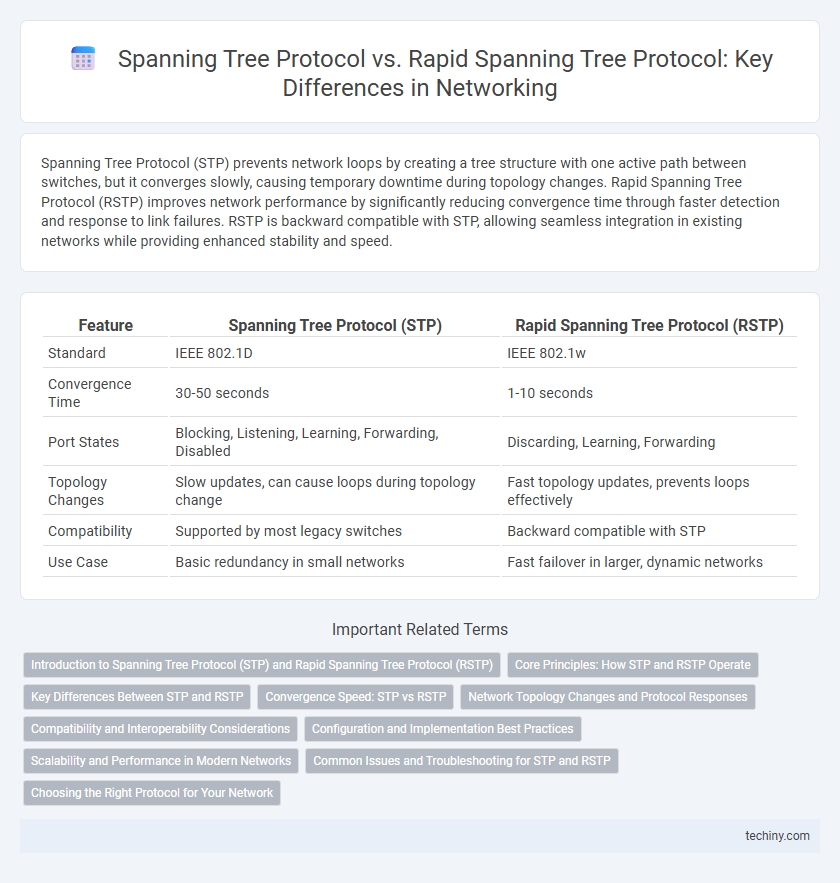

Spanning Tree Protocol vs Rapid Spanning Tree Protocol Infographic
