techiny.com Direct drive actuators provide higher precision and better torque control by eliminating mechanical components like gears, resulting in reduced backlash and maintenance requirements. Geared actuators offer increased torque multiplication and compact design but can introduce backlash, inertia, and energy losses due to gear mechanics. Selecting between direct drive and geared actuators depends on the application's demand for precision, efficiency, and torque capacity in robotic systems.
Table of Comparison
| Feature | Direct Drive Actuator | Geared Actuator |
|---|---|---|
| Torque Delivery | High torque at low speed, direct motor output | Torque amplified via gear reduction |
| Backlash | Minimal to none, precise positioning | Presence of backlash can affect accuracy |
| Maintenance | Low, fewer moving parts | Higher, gear wear requires upkeep |
| Efficiency | High mechanical efficiency, less energy loss | Reduced due to gear friction |
| Response Time | Faster, immediate motor response | Slower due to gear inertia |
| Size & Weight | Typically larger and heavier | Compact and lightweight |
| Cost | Higher initial cost | Lower upfront cost |
| Common Applications | High precision robotics, haptic devices, sensitive instrumentation | Robotics needing high torque with compact size, industrial automation |
Introduction to Robotics Actuators
Direct drive actuators provide precise control and high torque by eliminating transmission elements, reducing backlash and improving responsiveness in robotic systems. Geared actuators use gearboxes to increase torque output at the cost of added mechanical complexity, potential backlash, and maintenance requirements. Selecting between direct drive and geared actuators depends on application demands for precision, speed, torque, and efficiency within robotic actuators design.
What is a Direct Drive Actuator?
A Direct Drive Actuator is a type of robotic actuator that eliminates the need for transmission components like gears or belts by directly connecting the motor shaft to the load. This design results in higher precision, reduced backlash, and increased efficiency, making it ideal for applications requiring smooth and accurate motion control. Direct drive actuators also offer enhanced reliability and lower maintenance due to fewer mechanical parts subject to wear.
What is a Geared Actuator?
A geared actuator uses a system of gears to increase torque while reducing speed, allowing precise control and force amplification in robotic applications. This mechanism converts motor input into higher torque output through gear reduction, enhancing load handling and positioning accuracy. Geared actuators are essential in robotics where compact size and high torque are required, enabling efficient movement and control in robotic arms and joints.
Key Differences: Direct Drive vs Geared Actuators
Direct drive actuators eliminate mechanical transmission components, offering higher responsiveness and precision by connecting the motor directly to the load, reducing backlash and maintenance requirements. Geared actuators incorporate gear sets to increase torque and reduce speed, which often introduces backlash, inertia, and potential energy losses, impacting system accuracy and response time. Selecting between direct drive and geared actuators depends on the prioritization of torque demands, speed control, precision, and application-specific constraints in robotic systems.
Performance Comparison: Speed, Torque, and Precision
Direct drive actuators deliver higher precision and faster response times due to the elimination of backlash and reduced mechanical complexity, enabling superior speed control and smoother motion profiles. Geared actuators generate greater torque through mechanical advantage but often suffer from reduced speed and precision due to gear backlash and increased inertia. In robotics applications demanding high-speed accuracy and low maintenance, direct drive actuators outperform geared alternatives by offering more efficient torque transmission and enhanced dynamic response.
Efficiency and Energy Consumption Analysis
Direct drive actuators exhibit higher efficiency and lower energy consumption compared to geared actuators by eliminating mechanical transmission losses and reducing friction. In robotic applications, the absence of gears minimizes backlash and maintenance requirements, resulting in more precise motion control and extended operational lifespan. Energy analysis demonstrates that direct drive systems convert electrical power into mechanical output with efficiencies exceeding 90%, while geared actuators typically operate below 80% efficiency due to gear train energy dissipation.
Reliability and Maintenance Considerations
Direct drive actuators offer superior reliability due to fewer mechanical components, reducing wear and the need for frequent maintenance compared to geared actuators. Geared actuators experience increased maintenance requirements from gear wear, backlash, and lubrication needs, which can lead to decreased operational lifespan. Choosing direct drive systems minimizes downtime and maintenance costs, enhancing long-term robotic system performance.
Application Suitability in Robotics
Direct drive actuators provide high precision and fast response times, making them ideal for applications requiring smooth, accurate motion such as robotic arms in surgical robots and precision assembly. Geared actuators offer increased torque and load capacity, better suited for heavy-duty tasks like material handling robots and industrial automation. Selecting the appropriate actuator depends on the specific robotic task's demand for speed, torque, and positional accuracy.
Cost Implications: Direct Drive vs Geared Systems
Direct drive actuators often entail higher initial costs due to precision engineering and advanced materials, yet lower maintenance expenses result from fewer moving parts and reduced wear. Geared actuators typically have lower upfront prices but incur ongoing maintenance and replacement costs linked to gear wear, backlash, and lubrication needs. Evaluating total cost of ownership highlights direct drive systems' potential for long-term savings despite their premium purchase price.
Future Trends in Robotic Actuators
Direct drive actuators are gaining traction in robotics due to their high precision, reduced backlash, and improved energy efficiency compared to traditional geared actuators. Future trends highlight the integration of advanced materials and embedded sensors in direct drive systems to enhance real-time feedback and adaptive control. Geared actuators will continue evolving with lightweight, high-torque designs, but the shift towards direct drive technology is driven by demands for smoother motion and lower maintenance in next-generation robotic applications.

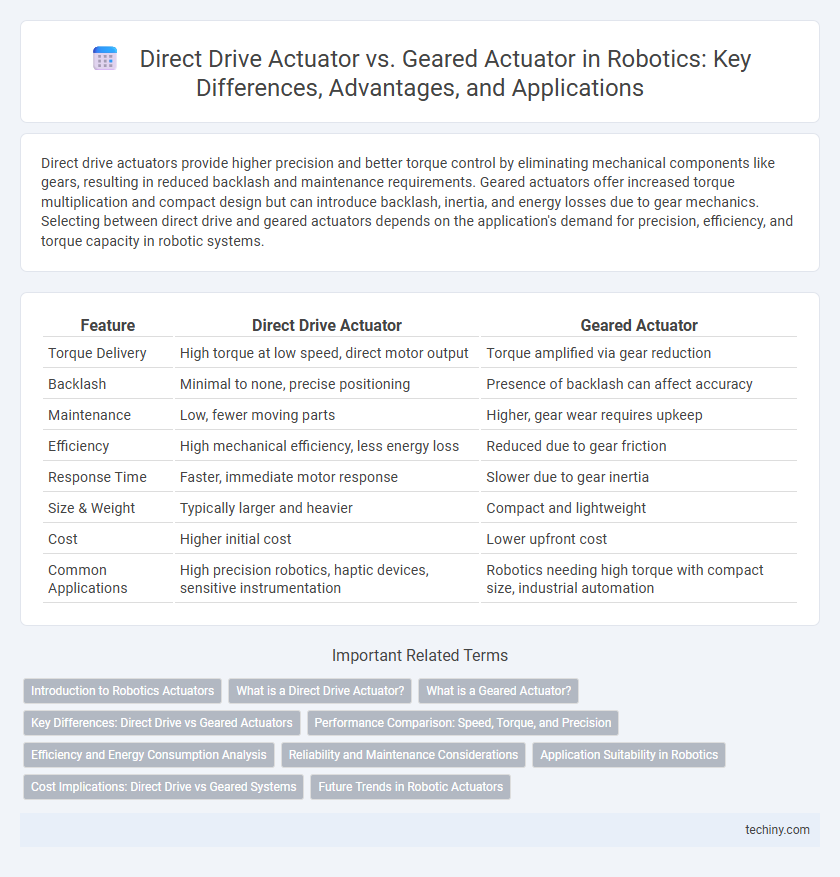

Direct drive actuator vs Geared actuator Infographic
