techiny.com I2C and SPI are two widely used communication protocols in hardware engineering, each with distinct advantages depending on the application requirements. I2C operates using two wires, simplifying wiring complexity and enabling multiple devices on the same bus, making it ideal for low-speed communication and sensors. In contrast, SPI uses four wires for faster data rates and full-duplex communication, providing higher throughput and better performance for devices requiring rapid data transfer.
Table of Comparison
| Feature | I2C (Inter-Integrated Circuit) | SPI (Serial Peripheral Interface) |
|---|---|---|
| Communication Type | Multi-master, multi-slave | Single-master, multi-slave |
| Wiring | 2 wires (SDA, SCL) | 4 wires (MISO, MOSI, SCLK, CS) |
| Speed | Up to 5 Mbps (Fast-mode Plus) | Up to 50 Mbps (depending on hardware) |
| Data Transfer | Half-duplex | Full-duplex |
| Addressing | 7-bit or 10-bit addressing | No addressing, device selected via CS |
| Complexity | Lower wiring complexity | Higher wiring complexity |
| Use Cases | Sensor interfacing, low-speed peripherals | High-speed data transfer, flash memory |
| Clock Synchronization | Shared clock (SCL) | Dedicated clock line (SCLK) |
| Power Consumption | Lower due to fewer lines | Higher due to multiple lines |
Overview of I2C and SPI Communication Protocols
I2C (Inter-Integrated Circuit) is a two-wire, multi-master, multi-slave communication protocol primarily designed for short-distance, low-speed communication between integrated circuits on a PCB, using a clock (SCL) and data (SDA) line. SPI (Serial Peripheral Interface) is a full-duplex, four-wire protocol including the clock (SCLK), master output slave input (MOSI), master input slave output (MISO), and chip select (CS) lines, optimized for higher speed communication with devices like sensors and flash memory. Both protocols are widely used in hardware engineering for device interfacing but differ in complexity, speed, and wiring requirements, where I2C supports multiple devices on a single bus with addressability and SPI offers faster data throughput with dedicated chip-select lines.
Fundamental Architecture: I2C vs SPI
I2C employs a two-wire architecture consisting of a serial data line (SDA) and a serial clock line (SCL) designed for multi-master, multi-slave communication. SPI uses a four-wire configuration: master out slave in (MOSI), master in slave out (MISO), serial clock (SCLK), and chip select (CS), enabling full-duplex data transmission with dedicated lines per device. The I2C bus supports addressing with unique 7 or 10-bit addresses, while SPI relies on individual chip select signals for device selection, affecting scalability and speed.
Data Transmission Speeds: Which is Faster?
SPI offers significantly faster data transmission speeds compared to I2C, with SPI capable of reaching clock frequencies up to 100 MHz or higher, while I2C typically maxes out around 3.4 MHz in high-speed mode. The full-duplex communication of SPI allows simultaneous data exchange, enhancing throughput beyond I2C's half-duplex, master-slave architecture. Consequently, SPI is preferred in applications demanding rapid data transfer and higher bandwidth efficiency.
Pin Count and Hardware Complexity Comparison
I2C uses a two-wire interface consisting of SDA and SCL lines, which significantly reduces the pin count compared to SPI's four or more lines, including MOSI, MISO, SCLK, and SS. The simpler two-pin design of I2C lowers hardware complexity and PCB routing requirements, making it ideal for space-constrained applications. SPI's increased pin count supports higher data rates and full-duplex communication but demands more complex hardware and additional pins, increasing overall system complexity.
Master-Slave Configuration Differences
I2C uses a two-wire interface with a single master controlling multiple slave devices through unique addresses, enabling half-duplex communication and simpler wiring. SPI employs separate lines for master-out-slave-in (MOSI), master-in-slave-out (MISO), clock, and individual chip select signals for each slave, supporting full-duplex data transfer and faster communication speeds. Unlike I2C's multi-master support, SPI typically features a single master managing slaves without addressing, making it more suited for high-speed, low-latency applications in hardware design.
Bus Arbitration and Addressing Methods
I2C uses a multi-master arbitration process on a shared bidirectional data line, allowing simultaneous device communication requests with lower pin counts through unique 7- or 10-bit addressing schemes. SPI operates with a master-slave configuration using separate chip select lines for device selection, eliminating the need for address-based arbitration but requiring more pins for multiple devices. The choice between I2C and SPI depends on bus complexity, with I2C offering flexible device addressing and arbitration, while SPI provides faster, simpler hardware signaling without built-in addressing.
Power Consumption: Efficiency Factors
I2C generally consumes less power than SPI due to its simpler two-wire interface and lower clock frequencies, which reduce switching activity and overall energy usage. SPI's four-wire architecture and higher data rates increase power consumption, especially in continuous data transfer scenarios. Power efficiency in both protocols can be optimized by adjusting clock speed, using low-power modes, and minimizing communication duration.
Noise Immunity and Signal Integrity
I2C communication uses open-drain lines with pull-up resistors, which increases susceptibility to noise and signal degradation over longer distances compared to SPI's push-pull drivers that provide stronger signal levels and improved noise immunity. SPI's separate clock and data lines enable higher data rates with reduced crosstalk and better signal integrity, making it more reliable in electrically noisy environments. Careful PCB layout and proper termination are essential in both protocols to minimize electromagnetic interference and ensure stable data transmission.
Scalability: Device Support and Expandability
I2C supports multiple devices on the same bus with unique 7 or 10-bit addresses, enabling easy scalability for up to 127 devices per bus without additional wiring complexity. SPI offers higher data throughput but requires separate chip select lines for each device, which limits expandability due to increased pin usage and board complexity. For systems demanding numerous peripherals, I2C provides superior device support and simplified expansion compared to SPI.
Choosing Between I2C and SPI for Hardware Projects
I2C offers a simple, two-wire interface suited for low-speed peripherals and multi-device communication, making it ideal for applications with limited pin availability. SPI provides higher data transfer rates and full-duplex communication, benefiting projects requiring fast, reliable exchanges between microcontrollers and sensors or memory devices. Selecting between I2C and SPI depends on project requirements like speed, complexity, bus length, and device count, ensuring optimal hardware performance and resource utilization.

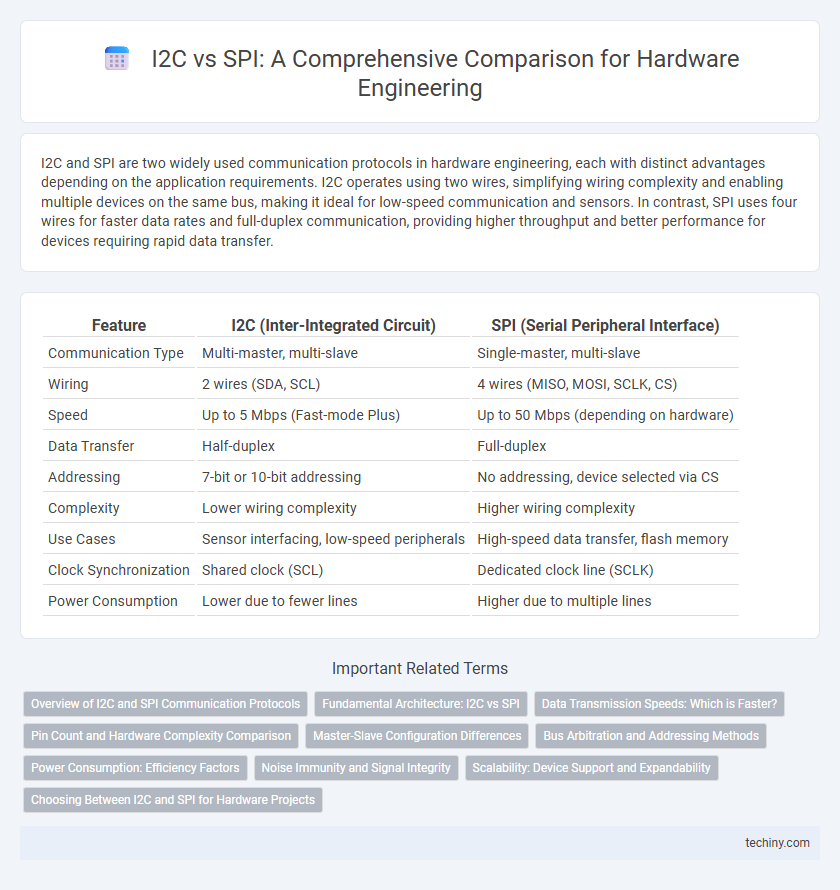

I2C vs SPI Infographic
