techiny.com LGA (Land Grid Array) and PGA (Pin Grid Array) are two types of CPU socket designs that differ primarily in pin placement; LGA features pins on the motherboard socket, while PGA has pins on the processor itself. LGA sockets typically provide better durability and higher pin density, making them ideal for high-performance and server processors, whereas PGA sockets offer easier CPU replacement and are commonly used in consumer desktops. Choosing between LGA and PGA depends on factors such as upgrade flexibility, cooling solutions, and overall system requirements in hardware engineering projects.
Table of Comparison
| Feature | LGA (Land Grid Array) | PGA (Pin Grid Array) |
|---|---|---|
| Design | Flat contacts on CPU; pins on motherboard socket | Pins on CPU; socket with holes on motherboard |
| Durability | High; less risk of bent pins during handling | Moderate; pins are fragile and can bend easily |
| Installation | Requires precise alignment and proper socket mechanism | Pins must fit accurately into socket holes |
| Thermal Performance | Better heat dissipation due to larger contact area | Standard thermal conduction |
| Usage | Common in Intel desktop CPUs (e.g., LGA 1151, LGA 1200) | Common in AMD desktop CPUs (e.g., AM4, AM5) |
| Repairability | Difficult to repair socket pins | Easier to replace or repair CPU pins |
| Cost | Higher manufacturing cost for motherboard socket | Lower motherboard socket cost, higher CPU manufacturing complexity |
Overview of LGA and PGA Socket Types
LGA (Land Grid Array) sockets feature flat contact pads on the processor that align with pins on the motherboard, providing improved electrical performance and durability. PGA (Pin Grid Array) sockets, conversely, have pins on the processor that insert into holes on the motherboard socket, offering cost-effective manufacturing and ease of CPU replacement. Both socket types are critical in hardware engineering for ensuring proper CPU-to-motherboard connectivity, influencing factors like signal integrity and mechanical reliability.
Historical Evolution of CPU Socket Designs
The historical evolution of CPU socket designs highlights the transition from Pin Grid Array (PGA) to Land Grid Array (LGA) as a significant advancement in hardware engineering. PGA sockets, which feature pins on the CPU that insert into holes on the motherboard socket, were widely used in early desktop processors for their ease of replacement and lower manufacturing cost. The shift to LGA, where pins are placed on the motherboard socket and the CPU has flat contacts, improved electrical performance, increased pin density, and enhanced mechanical durability, driving mainstream adoption by major manufacturers such as Intel from the mid-2000s onward.
Structural Differences Between LGA and PGA
LGA (Land Grid Array) and PGA (Pin Grid Array) differ primarily in their contact structures; LGA features flat contact pads on the processor that connect to pins on the motherboard socket, while PGA has pins protruding from the processor that insert into holes in the socket. The LGA design reduces the risk of bent processor pins, enhancing durability compared to the more fragile pin layout of PGA. Structurally, LGA sockets tend to be more compact and allow for higher pin densities, supporting advanced processor designs and better electrical performance.
Mechanical Reliability: LGA vs PGA
LGA (Land Grid Array) offers superior mechanical reliability compared to PGA (Pin Grid Array) due to its flat pad design, which reduces the risk of bent or damaged pins during installation or handling. PGA pins protrude from the CPU, making them more susceptible to physical damage and requiring careful alignment into the socket. The LGA socket secures the CPU with a lever mechanism, providing consistent contact pressure and enhanced durability under thermal cycling and mechanical stress.
Electrical Performance and Signal Integrity
LGA (Land Grid Array) sockets provide superior electrical performance and signal integrity compared to PGA (Pin Grid Array) due to reduced inductance and resistance in the contact interface, which minimizes signal distortion and crosstalk at high frequencies. The flat contact pads in LGA designs enable more consistent impedance matching and better high-speed data transmission, crucial for modern processors operating at multi-gigahertz clock speeds. In contrast, PGA's pin-based connections are more susceptible to mechanical wear and signal degradation, impacting overall reliability and electrical performance in advanced hardware engineering applications.
Installation and Handling Considerations
LGA (Land Grid Array) sockets feature flat contact pads on the motherboard, requiring careful alignment and gentle pressure during CPU installation to avoid damaging the delicate pins on the socket. PGA (Pin Grid Array) CPUs have protruding pins that must be handled with caution to prevent bending or breaking, and insertion into the socket demands precise alignment to ensure proper connectivity. Proper installation tools and anti-static precautions are essential for both LGA and PGA to maintain hardware integrity and performance.
Impact on Motherboard and CPU Manufacturing
LGA (Land Grid Array) sockets simplify motherboard design by providing flat contact pads that reduce mechanical stress during CPU installation, enabling higher pin density and improved signal integrity. PGA (Pin Grid Array) sockets require precision holes on the motherboard and delicate pins on the CPU, increasing manufacturing complexity and risk of pin damage, which can affect yield rates. The shift toward LGA architecture supports more reliable mass production and enhanced performance scalability in modern CPU and motherboard manufacturing.
Cost Implications of LGA vs PGA
LGA (Land Grid Array) sockets typically incur higher manufacturing costs due to their complex assembly and the precision required in aligning the flat contact pads with the CPU, increasing overall production expenses. PGA (Pin Grid Array) sockets feature pin-based connections, which are generally less expensive to produce but can result in higher repair and replacement costs due to bent or damaged pins during handling. Cost implications of LGA versus PGA also affect end-user expenses, where LGA may lead to higher initial motherboard prices, while PGA might increase long-term maintenance costs.
Popularity in Consumer and Enterprise Markets
LGA (Land Grid Array) sockets dominate the enterprise market due to superior electrical performance and ease of installation in high-density server environments, making them the preferred choice for data centers and professional workstations. PGA (Pin Grid Array) remains popular in consumer markets, especially among PC enthusiasts and budget builds, due to its lower manufacturing cost and compatibility with a wide range of desktop processors. Market trends indicate increasing adoption of LGA in both segments driven by advancements in multi-core processor designs and thermal management requirements.
Future Trends in Processor Socket Technology
Future trends in processor socket technology emphasize the shift from PGA (Pin Grid Array) to LGA (Land Grid Array) due to LGA's enhanced durability and improved electrical performance. LGA sockets facilitate higher pin density and better thermal management, addressing the increasing power and speed demands of next-generation CPUs. Emerging developments also include hybrid socket designs and integration with advanced interposers to support multi-die processor architectures and advanced packaging techniques.

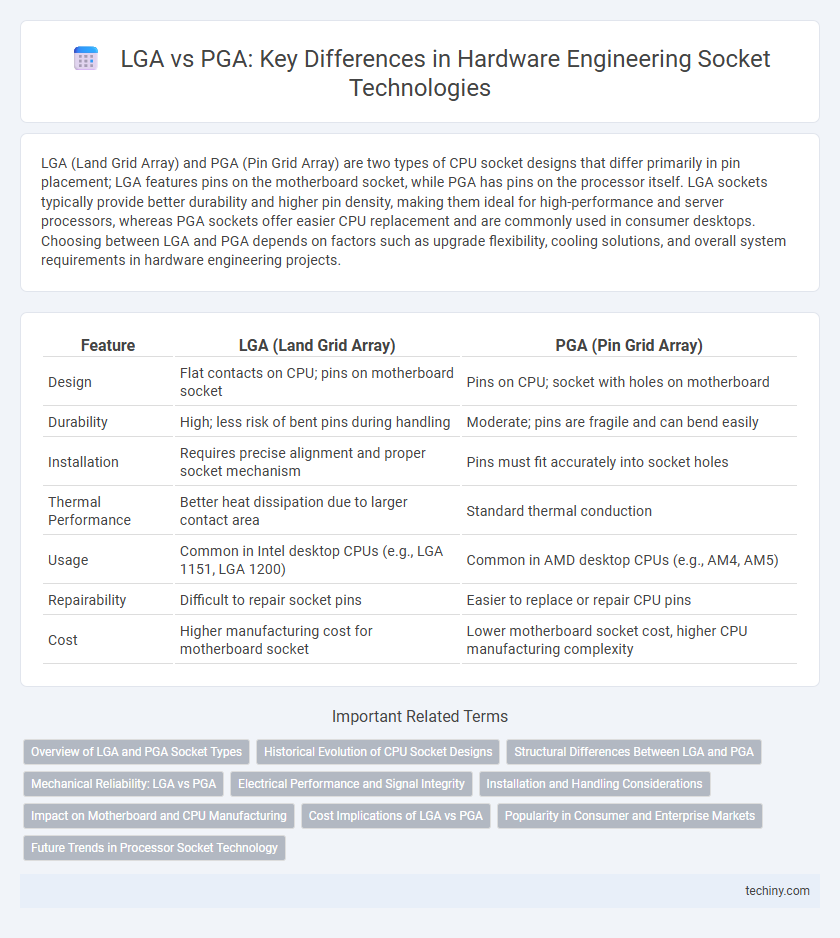

LGA vs PGA Infographic
