techiny.com Synchronous circuits operate based on a global clock signal that coordinates the timing of all operations, ensuring predictable and reliable performance in hardware designs. In contrast, asynchronous circuits function without a central clock, relying on handshaking signals and event-driven processes to manage data flow, which can lead to faster response times and lower power consumption. Choosing between synchronous and asynchronous circuit architectures depends on application requirements such as speed, complexity, power efficiency, and design scalability.
Table of Comparison
| Feature | Synchronous Circuit | Asynchronous Circuit |
|---|---|---|
| Clock Dependency | Uses a global clock signal | No clock signal, event-driven |
| Timing Control | Controlled by clock edges | Controlled by data flow and handshaking |
| Speed | Limited by clock frequency | Potentially faster due to no clock delay |
| Power Consumption | Higher due to continuous clocking | Lower, activates only when needed |
| Design Complexity | Relatively simpler and standardized | More complex, requires careful timing analysis |
| Noise Immunity | Better noise tolerance via clock synchronization | Susceptible to glitches and hazards |
| Applications | Popular in digital processors, memory | Used in low-power and specialized circuits |
Introduction to Synchronous and Asynchronous Circuits
Synchronous circuits operate based on a global clock signal that coordinates the timing of all circuit components, ensuring predictable and orderly data flow. Asynchronous circuits lack a global clock and rely on handshaking protocols and local timing, resulting in potentially faster but more complex designs. Understanding the fundamental distinction between these timing methodologies is crucial for optimizing hardware performance and reliability.
Fundamental Differences Between Synchronous and Asynchronous Designs
Synchronous circuits operate using a global clock signal to coordinate all state changes, ensuring predictable timing and simplified design verification. Asynchronous circuits function without a global clock, relying on handshaking protocols and event-driven signals, which can lead to lower power consumption and reduced electromagnetic interference. The fundamental difference lies in timing control: synchronous designs use fixed clock cycles while asynchronous designs depend on data-driven state transitions.
Synchronous Circuits: Architecture and Operation
Synchronous circuits rely on a global clock signal to coordinate the timing of all internal operations, ensuring that data transitions occur at predictable intervals. This architecture uses flip-flops and registers triggered by clock edges, enabling precise control over data flow and timing consistency. The operation of synchronous circuits offers advantages in design simplicity, timing analysis, and noise immunity, making them fundamental in digital systems such as microprocessors and memory units.
Asynchronous Circuits: Architecture and Operation
Asynchronous circuits operate without a global clock, using handshaking protocols to manage data transfer and control flow, which enhances speed and reduces power consumption in hardware design. Their architecture relies on Muller C-elements and completion detectors to synchronize signal transitions locally, enabling high modularity and robustness against clock skew. These circuits are ideal for applications requiring low electromagnetic interference and adaptive timing, such as low-power embedded systems and high-performance computing hardware.
Performance Comparison: Speed, Power, and Area
Synchronous circuits typically achieve higher speed due to their clock-driven timing but consume more power and require larger area because of clock distribution networks and flip-flops. Asynchronous circuits often provide lower power consumption and reduced silicon area by eliminating the global clock and enabling data-dependent timing, but their speed can be limited by handshaking protocols and delay variations. Selecting between synchronous and asynchronous designs involves balancing speed requirements with power efficiency and chip area constraints in specific hardware engineering applications.
Design Complexity and Scalability Considerations
Synchronous circuits rely on a global clock signal to coordinate operations, simplifying timing analysis but increasing design complexity due to clock distribution challenges and potential skew issues. Asynchronous circuits eliminate the global clock, offering improved scalability and lower power consumption, though they require intricate handshaking mechanisms and complex timing assumptions for reliable operation. Scalability in synchronous designs is constrained by clock tree synthesis and skew management, whereas asynchronous designs scale more efficiently but demand sophisticated design methodologies to handle increased control logic complexity.
Reliability and Timing Issues in Circuit Design
Synchronous circuits rely on a global clock signal to coordinate operations, enhancing reliability by ensuring predictable timing and minimizing glitches. Asynchronous circuits operate without a global clock, which can reduce power consumption and electromagnetic interference but increase complexity in timing analysis and susceptibility to race conditions. Careful design of handshake protocols and proper handling of metastability are critical in asynchronous circuits to maintain reliability and correct timing behavior.
Use Cases and Application Domains
Synchronous circuits dominate in microprocessors, digital signal processing, and communication systems where precise timing and clock synchronization ensure reliability and predictable performance. Asynchronous circuits find applications in low-power embedded systems, neuromorphic computing, and environments with variable latency requirements, offering benefits in speed and energy efficiency without the need for a global clock. Design choices between synchronous and asynchronous approaches depend heavily on application demands such as timing accuracy, power consumption, and system complexity.
Current Trends and Future Directions
Synchronous circuits dominate hardware engineering due to their predictable timing and ease of design using global clock signals, but they face limitations in power consumption and speed as clock frequencies scale. Asynchronous circuits, which operate without a global clock and rely on handshaking protocols, are gaining attention for their potential to reduce power usage and electromagnetic interference, enabling more energy-efficient and scalable systems. Future directions emphasize hybrid approaches combining synchronous and asynchronous elements to optimize performance, power efficiency, and reliability in advanced integrated circuits and emerging applications like neuromorphic computing.
Choosing the Right Approach for Your Hardware Project
Synchronous circuits rely on a global clock signal to coordinate data flow, ensuring predictable timing and easier debugging, which is ideal for projects demanding high reliability and simplicity. Asynchronous circuits operate without a global clock, offering potential benefits in power efficiency and speed but requiring complex design techniques to handle timing uncertainties. Selecting the right approach depends on project constraints such as power consumption, performance requirements, and design complexity, with synchronous designs favored for standardized applications and asynchronous suited for specialized low-power or high-speed needs.

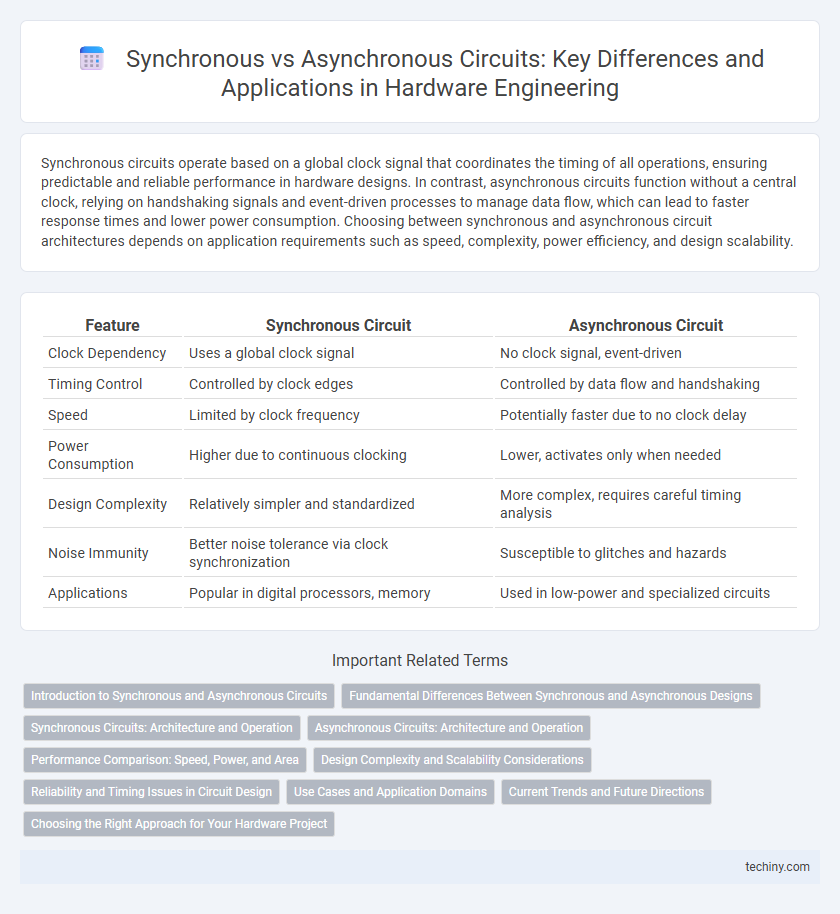

Synchronous vs Asynchronous Circuit Infographic
