techiny.com Voltage regulators maintain a constant output voltage regardless of variations in input voltage or load conditions, ensuring stable operation of electronic components. Power supplies convert electrical energy from one form to another, typically transforming AC to DC, while providing the necessary voltage and current for a device. Understanding the distinction between voltage regulators and power supplies is crucial for designing efficient and reliable hardware systems.
Table of Comparison
| Feature | Voltage Regulator | Power Supply |
|---|---|---|
| Function | Maintains constant output voltage despite input or load variations | Converts electrical power from one form to another and provides energy to a device |
| Output | Stable and regulated voltage level | Voltage and current suitable for device operation |
| Types | Linear regulators, switching regulators | Linear power supplies, switching power supplies, uninterruptible power supplies (UPS) |
| Efficiency | Varies; switching regulators typically more efficient than linear | Depends on design; switching power supplies generally have higher efficiency |
| Applications | Microprocessors, sensors, embedded systems | Computers, industrial equipment, consumer electronics |
| Complexity | Simpler circuit design in linear types | More complex due to power conversion stages |
| Cost | Generally low to moderate | Typically higher due to additional components |
Introduction to Voltage Regulators and Power Supplies
Voltage regulators maintain a constant output voltage level despite fluctuations in input voltage or load conditions, ensuring stable power delivery to electronic components. Power supplies convert electrical energy from a source to the correct voltage, current, and frequency required by the load, often incorporating voltage regulators within their design. Understanding the distinction highlights that voltage regulators are critical components within power supplies, which serve as the overarching systems providing reliable electrical power to hardware devices.
Core Functions: Voltage Regulation vs. Power Supply
Voltage regulators maintain a constant output voltage regardless of input voltage fluctuations or load variations, ensuring stable power delivery to sensitive electronic components. Power supplies convert electrical energy from a source into the required voltage, current, and frequency needed by the device, often providing multiple voltage rails. The core function of voltage regulators centers on voltage stabilization, while power supplies focus on the overall conversion and distribution of electrical power.
Key Components: What Makes Up Each Device
Voltage regulators primarily consist of components like zener diodes, transistors, and integrated circuits designed to maintain a constant output voltage despite variations in input voltage or load conditions. Power supplies include a broader set of elements such as transformers, rectifiers, filters, and voltage regulators to convert and stabilize electrical power for devices. The key distinction lies in the power supply's role in converting and conditioning power, whereas the voltage regulator focuses specifically on voltage stabilization within that system.
Types of Voltage Regulators and Power Supplies
Voltage regulators include linear regulators, switching regulators, and low dropout (LDO) regulators, each designed for specific applications requiring stable voltage output despite input fluctuations. Power supplies are categorized into linear power supplies, which provide clean output with low noise, switching power supplies that offer higher efficiency and size reduction, and uninterruptible power supplies (UPS) that ensure continuous power during outages. Understanding these types enables hardware engineers to select the appropriate voltage regulation and power source for optimized circuit performance and reliability.
Efficiency Comparison: Voltage Regulators vs. Power Supplies
Voltage regulators typically offer higher efficiency in maintaining a stable output voltage under varying load conditions compared to general power supplies, which convert and deliver power but may suffer from greater energy losses. Switching voltage regulators, such as buck or boost converters, achieve efficiencies often exceeding 85-95%, whereas linear voltage regulators and basic power supplies can exhibit efficiencies below 50-70%. The choice between voltage regulator types and power supplies directly impacts overall system power efficiency, thermal management, and energy consumption in hardware engineering applications.
Applications in Hardware Engineering
Voltage regulators are essential in hardware engineering for maintaining consistent output voltage to sensitive components in embedded systems and microcontrollers, ensuring stable operation despite input voltage fluctuations. Power supplies provide the necessary electrical energy conversion and initial voltage scaling to hardware circuits, with applications ranging from desktop computers to industrial machinery. Integrating voltage regulators within power supplies or standalone circuits enhances power quality, protecting electronic devices from damage and improving overall system reliability.
Design Considerations and Challenges
Design considerations for voltage regulators include maintaining a stable output voltage despite fluctuations in input voltage and load, while minimizing power loss and heat dissipation through efficient circuit topologies like linear or switching regulators. Power supply design challenges focus on providing a consistent and reliable energy source by managing voltage stability, noise reduction, thermal management, and electromagnetic interference, often requiring complex filtering and protection mechanisms. Both components necessitate careful selection of materials, component ratings, and layout strategies to optimize performance and ensure system reliability under varying operating conditions.
Advantages and Drawbacks of Each Solution
Voltage regulators provide precise voltage control and protect sensitive electronic components from fluctuations, ensuring stable operation in hardware engineering; however, their limited output current capacity and heat dissipation issues can restrict performance in high-power applications. Power supplies offer broader voltage and current ranges suitable for various devices, delivering higher power output and versatility, but they may introduce noise and less efficient voltage regulation compared to dedicated voltage regulators. Choosing between voltage regulators and power supplies depends on the specific requirements of stability, power capacity, and noise sensitivity in the hardware design.
Integration in Electronic Circuits
Voltage regulators provide precise control of output voltage, ensuring stable operation of electronic circuits by integrating components such as reference voltage sources and error amplifiers. Power supplies deliver the necessary electrical energy to a circuit but often require additional regulation to maintain voltage stability under varying load conditions. Integration of voltage regulators directly on circuit boards enhances efficiency, reduces heat dissipation, and minimizes space compared to standalone power supply units.
Choosing Between a Voltage Regulator and a Power Supply
Choosing between a voltage regulator and a power supply depends on the specific requirements of your hardware design, including voltage stability, current capacity, and efficiency. A power supply provides the initial conversion from AC to DC voltage and can handle higher power loads, while a voltage regulator refines the output voltage to a precise, stable level suitable for sensitive electronic components. Careful consideration of input voltage range, output voltage accuracy, thermal management, and load variations is essential for optimal performance in hardware engineering applications.

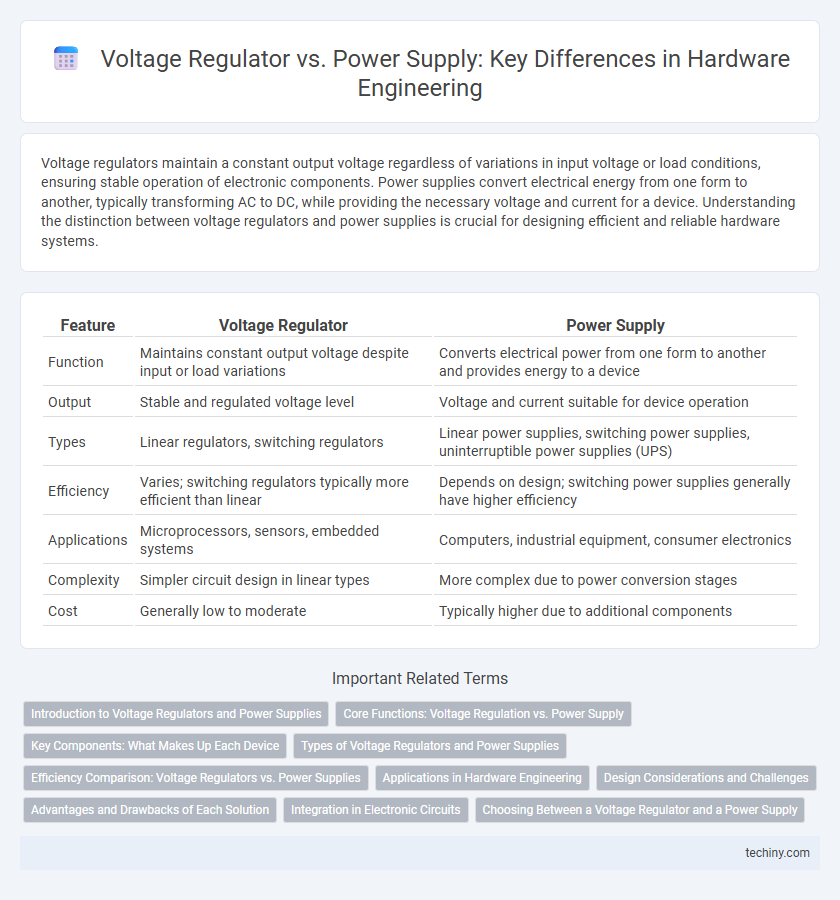

Voltage regulator vs Power supply Infographic
