techiny.com Direct drive motors provide higher precision and efficiency by eliminating gears, resulting in reduced backlash and maintenance needs. Geared motors offer greater torque at lower speeds, making them suitable for heavy-load applications where force amplification is critical. Selecting between direct drive and geared motors depends on the specific robotic task requirements, balancing accuracy, speed, and torque demands.
Table of Comparison
| Feature | Direct Drive Motor | Geared Motor |
|---|---|---|
| Torque | High torque at low speed | Increased torque through gear reduction |
| Speed | High speed with precise control | Reduced output speed due to gears |
| Backlash | Minimal to none (direct coupling) | Possible backlash from gear play |
| Maintenance | Low maintenance, fewer parts | Higher maintenance due to gear wear |
| Efficiency | Higher efficiency, less energy loss | Reduced efficiency from gear friction |
| Size & Weight | Larger, heavier motor | More compact due to gearing |
| Cost | Higher initial cost | Lower cost, more affordable |
| Application | High precision robotics, direct control | General robotics, where torque multiplication needed |
Introduction to Direct Drive and Geared Motors
Direct drive motors offer high precision and efficiency by eliminating gear trains, reducing mechanical losses, and providing direct torque transfer to the load. Geared motors utilize gears to increase torque output and reduce speed, making them suitable for high-torque, low-speed applications but introducing backlash and maintenance challenges. Understanding the trade-offs between direct drive and geared motors is essential for optimizing robotic system performance, particularly in terms of accuracy, responsiveness, and mechanical complexity.
Core Principles: How Direct Drive Motors Work
Direct drive motors operate by directly connecting the rotor to the load, eliminating the need for gears and reducing mechanical losses. These motors utilize strong permanent magnets and high torque density to produce precise and responsive motion control with minimal backlash. The core principle relies on electromagnetic force generated between the stator coils and rotor magnets, enabling smooth operation ideal for robotics applications requiring high accuracy and reliability.
Understanding Geared Motors: Mechanism and Function
Geared motors utilize a system of interlocking gears to reduce the motor's output speed while increasing torque, enabling precise control in robotic applications. The gear reduction mechanism transforms high-speed, low-torque input from the motor into low-speed, high-torque output geared for tasks requiring strength and accuracy. This configuration enhances the motor's efficiency in handling heavy loads and improves the overall performance and durability of robotic systems.
Key Performance Differences: Speed, Torque, and Efficiency
Direct drive motors provide higher efficiency and precise speed control due to the absence of gears, resulting in reduced mechanical losses and smoother operation. Geared motors deliver significantly increased torque by utilizing gear reduction, making them ideal for high-load applications but often at the cost of lower efficiency and added mechanical complexity. Speed in direct drive motors is inherently higher and more responsive, while geared motors sacrifice speed for torque enhancement, impacting the overall dynamic performance in robotic systems.
Advantages of Direct Drive Motors in Robotics
Direct drive motors in robotics offer superior precision and responsiveness due to the elimination of gear backlash and transmission loss, resulting in smoother and more accurate motion control. They provide higher reliability and reduced maintenance requirements since there are fewer mechanical components prone to wear and failure. Enhanced torque density and energy efficiency allow direct drive motors to deliver powerful performance in compact robotic applications, making them ideal for advanced automation tasks.
Benefits and Limitations of Geared Motors
Geared motors provide increased torque output and precise control by utilizing gear reduction mechanisms, making them suitable for applications requiring high force at low speeds. Their design allows for compact size and improved efficiency in power transmission, enhancing performance in robotic joints and actuators. However, geared motors may suffer from increased mechanical complexity, higher maintenance requirements, and potential backlash, which can reduce overall system responsiveness and accuracy.
Application Suitability: When to Use Each Motor Type
Direct drive motors excel in applications requiring high precision and low maintenance, such as robotic arms and CNC machines, due to their minimal backlash and direct torque transmission. Geared motors are better suited for high-torque, low-speed tasks like conveyor systems and heavy-duty mobile robots, where mechanical advantage and torque multiplication are critical. Selecting between direct drive and geared motors depends on balancing the need for accuracy, torque, speed, and system complexity in specific robotics applications.
Maintenance and Durability Comparison
Direct drive motors exhibit lower maintenance requirements due to the absence of gears, reducing mechanical wear and the need for lubrication. Geared motors, while offering higher torque at lower speeds, often demand regular inspection and replacement of gears and lubricants to prevent degradation. Durability in direct drive systems typically outperforms geared counterparts under continuous use, as fewer moving parts lead to enhanced reliability and longer operational lifespan.
Cost Considerations: Initial Investment vs Long-term Value
Direct drive motors typically demand a higher initial investment due to advanced technology and precision manufacturing, but they reduce maintenance costs and improve efficiency over time. Geared motors offer a lower upfront cost by using simpler components, yet may incur increased long-term expenses from wear, gear replacements, and reduced energy efficiency. Evaluating total cost of ownership including durability, energy consumption, and downtime is crucial for robotics applications requiring cost-effective, reliable performance.
Future Trends in Robotic Motor Technologies
Direct drive motors are gaining prominence in robotics due to their higher precision, lower maintenance, and improved energy efficiency compared to traditional geared motors. Emerging trends emphasize the integration of advanced materials and sensor technologies with direct drive systems to enhance torque control and reduce weight. Future robotic applications will likely leverage these innovations to achieve smoother, quieter operation and increased responsiveness in complex tasks.

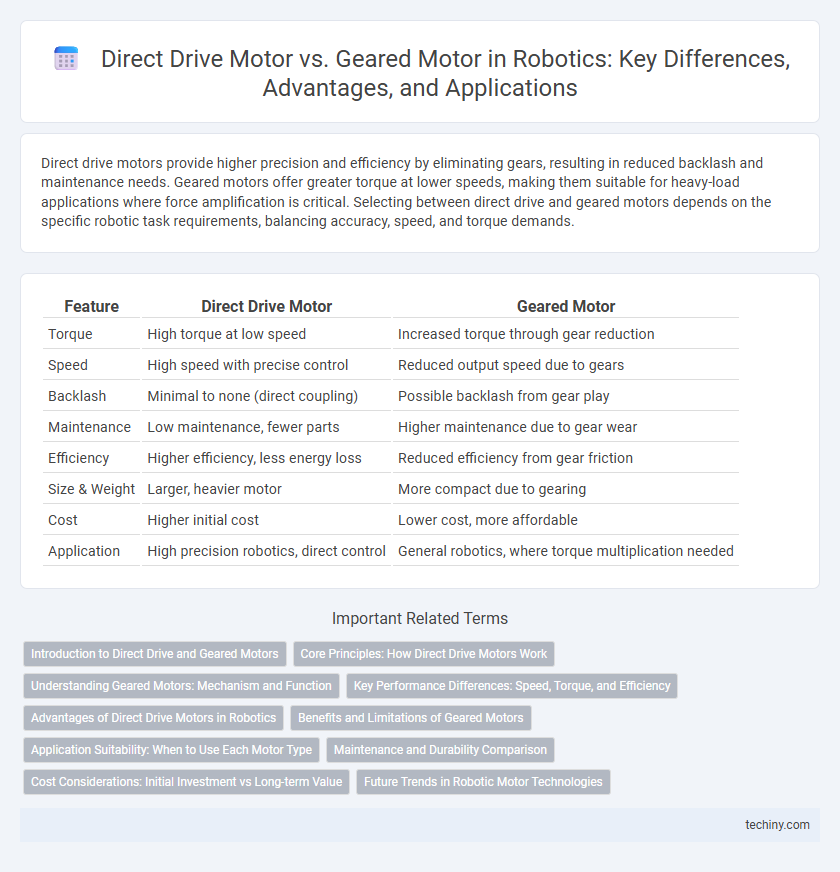

Direct drive motor vs Geared motor Infographic
