techiny.com In-circuit testing (ICT) focuses on verifying the individual components and solder connections on a printed circuit board (PCB) by applying electrical probes directly to test points, ensuring each component functions correctly before assembly progresses. Functional testing evaluates the complete hardware system under actual operating conditions to confirm that the assembled device performs its intended functions accurately. Both methods are crucial in hardware engineering, with ICT providing early defect detection and functional testing validating overall product reliability.
Table of Comparison
| Aspect | In-Circuit Testing (ICT) | Functional Testing (FT) |
|---|---|---|
| Purpose | Checks individual components and connections on PCB | Validates overall device functionality and performance |
| Test Method | Electrical tests using bed-of-nails fixture on circuit nodes | Simulates real-world operating conditions and user scenarios |
| Defect Detection | Detects shorts, opens, component failures, assembly defects | Detects functional failures, firmware issues, system-level errors |
| When Applied | Post-assembly, pre-functional testing stage | After ICT, final product validation before shipping |
| Test Coverage | Component-level, electronic connectivity | System-level, operational performance |
| Equipment | Bed-of-nails test fixtures, ICT analyzers | Functional testers, software simulators, test jigs |
| Test Speed | Fast, automated for rapid fault identification | Slower, involves complex functional sequences |
| Cost | Moderate setup cost, lower per-test cost | Higher cost due to complexity and longer test time |
Introduction to In-Circuit Testing and Functional Testing
In-circuit testing (ICT) evaluates individual components and solder connections on a printed circuit board (PCB) by electronically measuring voltage, current, and resistance at various test points. Functional testing assesses the complete assembled hardware system to verify that it operates according to specified design requirements under real-world conditions. Both testing methods are critical in hardware engineering for ensuring product quality, with ICT focusing on component-level fault detection and functional testing validating overall device performance.
Key Differences Between In-Circuit and Functional Testing
In-circuit testing (ICT) primarily focuses on verifying the integrity of individual components and connections on a PCB by measuring electrical properties like resistance, capacitance, and shorts, ensuring soldering quality and component placement accuracy. Functional testing evaluates the complete assembled device's performance by simulating real-world operating conditions and verifying its outputs and behaviors against expected results. ICT is typically faster and used early in production for fault isolation, while functional testing provides end-to-end validation of system functionality before product release.
Principles of In-Circuit Testing
In-circuit testing (ICT) verifies individual components and solder connections on a populated printed circuit board (PCB) by applying electrical probes to test points, ensuring each component functions within specified parameters before assembly completion. It primarily detects manufacturing defects such as open circuits, shorts, and incorrect component values by measuring resistance, capacitance, and continuity at the component level. ICT relies on a fixture to interface with the board's test points, allowing rapid diagnosis of faults and improving overall production yield in hardware engineering.
Principles of Functional Testing
Functional testing evaluates a hardware device by verifying its operation against specified requirements without reference to its internal circuit structure. This testing method applies real-world operational stimuli and observes output responses to ensure the hardware performs intended functions under expected conditions. Emphasizing end-to-end system behavior, functional testing detects issues related to software integration, signal timing, and overall hardware functionality that in-circuit testing may not reveal.
Test Coverage: In-Circuit vs Functional
In-circuit testing achieves high test coverage by directly accessing individual components and solder joints, detecting manufacturing defects such as shorts, opens, and incorrect component placements. Functional testing targets overall operational behavior, validating the complete system's performance under real working conditions but may miss subtle component-level faults. Combining in-circuit and functional testing maximizes fault detection by covering both structural integrity and system functionality.
Equipment and Setup Requirements
In-circuit testing requires specialized fixture equipment like bed-of-nails testers to make direct contact with individual circuit nodes for voltage and continuity checks. Functional testing setups involve complete system-level environments with simulated input conditions and output measurement devices to verify overall device operation. Equipment for in-circuit testing tends to be more complex and tailored to board layouts, whereas functional testing setups prioritize real-world operating conditions and peripheral interfacing.
Speed and Efficiency Comparison
In-circuit testing (ICT) offers rapid fault detection by probing individual components and connections on a populated PCB, significantly reducing diagnostic time compared to functional testing, which involves validating the entire system's operation. ICT's high-speed test execution and automation capabilities enhance efficiency by quickly identifying manufacturing defects before final assembly. Functional testing, while slower due to its system-level scope, provides comprehensive validation but is less efficient when early fault isolation and throughput are critical.
Cost Implications in Hardware Testing
In hardware engineering, in-circuit testing (ICT) generally incurs higher upfront costs due to the need for specialized fixtures and test equipment, but it enables early fault detection at the component level, reducing downstream repair expenses. Functional testing often involves lower initial investment but may result in increased labor and rework costs as faults are detected later in the production cycle, affecting system-level performance. Balancing ICT and functional testing strategies can optimize overall cost efficiency by combining precise component validation with comprehensive system verification.
Applicability in Modern Hardware Engineering
In modern hardware engineering, in-circuit testing is highly effective for detecting faults in individual components on a printed circuit board (PCB) during early manufacturing stages, ensuring physical integrity and connectivity. Functional testing complements this by verifying the overall system performance and correct operation under real-world conditions, critical for validating complex integrated circuits and final products. Combining both methods enhances fault coverage and product reliability, reflecting current industry standards for quality assurance in advanced hardware development.
Choosing the Right Testing Method for Your Project
Selecting the appropriate testing method between in-circuit testing (ICT) and functional testing depends on the project's specific requirements, including complexity, stage of development, and failure detection goals. ICT is ideal for early-stage fault detection by verifying individual component placement and solder joint integrity, while functional testing validates the complete system's performance against design specifications. Balancing cost, test coverage, and time constraints ensures optimal quality assurance and product reliability.

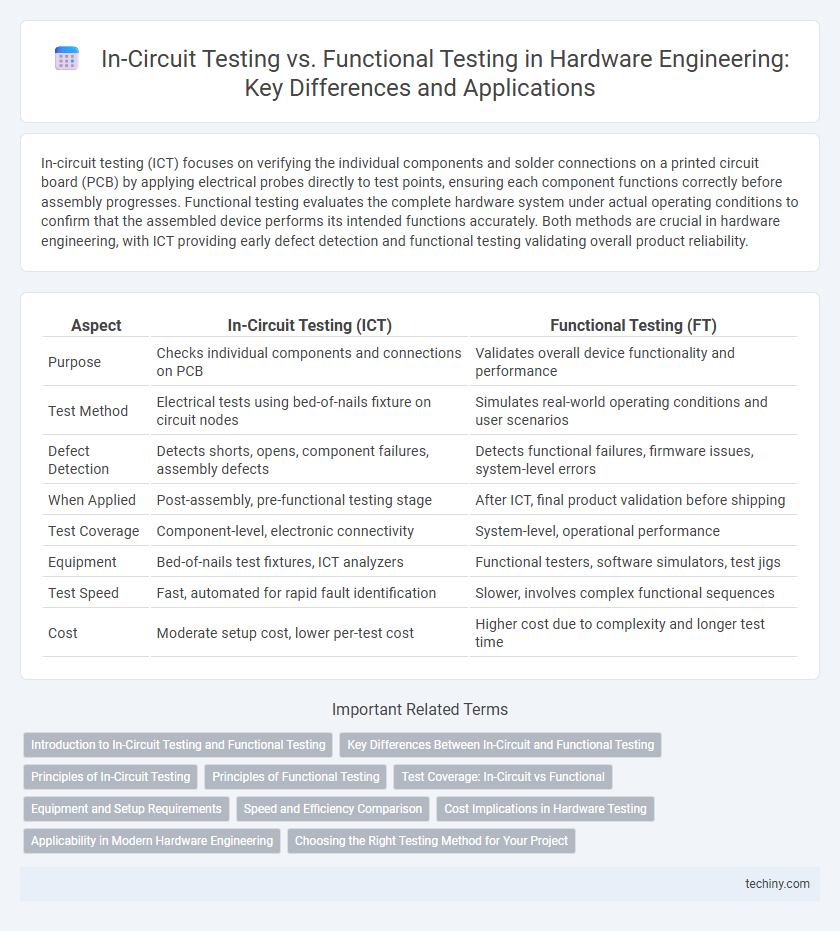

in-circuit testing vs functional testing Infographic
