techiny.com Differential drive robots use two independently driven wheels for simple, cost-effective movement and precise control on flat surfaces, making them ideal for straightforward navigation tasks. Omni drive robots feature multiple wheels with rollers, allowing seamless movement in any direction without changing orientation, enhancing maneuverability in tight or complex environments. Choosing between differential and omni drive depends on the application's need for agility versus simplicity and cost efficiency.
Table of Comparison
| Feature | Differential Drive | Omni Drive |
|---|---|---|
| Movement | Two independently driven wheels enabling forward, backward, and rotation motion | Multiple omni-wheels allowing movement in any direction without changing orientation |
| Degrees of Freedom | 2 (translation and rotation) | 3 (translation in X, Y axes and rotation) |
| Maneuverability | Limited turning radius | High, allows holonomic movement |
| Complexity | Simple mechanical design and control | Complex wheel assembly and control algorithms |
| Cost | Lower cost, easier maintenance | Higher cost due to more components and sensors |
| Applications | Mobile robots in indoor environments, AGVs | Robots requiring omnidirectional movement, advanced robotics platforms |
Introduction to Robotic Drive Systems
Differential drive and omni drive represent two fundamental robotic drive systems with distinct maneuverability capabilities. Differential drive uses two independently controlled wheels, enabling precise turns and straightforward control, ideal for navigating structured environments. Omni drive incorporates multiple omni-directional wheels, allowing for smooth movement in any direction, enhancing flexibility and agility in complex or crowded spaces.
Overview of Differential Drive Technology
Differential drive technology in robotics features two independently driven wheels on either side of the robot, enabling precise control of speed and direction through differential wheel velocities. This system offers mechanical simplicity, cost-effectiveness, and robust maneuverability on flat surfaces, making it ideal for indoor navigation and small to medium-sized robots. The differential drive's ability to perform zero-radius turns enhances its agility, although it may face challenges on uneven terrain compared to omnidirectional drives.
Understanding Omni Drive Mechanisms
Omni drive mechanisms utilize wheels with multiple rollers positioned at specific angles, enabling movement in any direction without changing the robot's orientation. This design contrasts with differential drive systems that rely on independent wheel speeds to steer, resulting in limited maneuverability and requiring rotational adjustments. Understanding the kinematics of omni wheels reveals enhanced agility in tasks requiring complex navigation, making them ideal for environments demanding precise omnidirectional control.
Key Differences Between Differential and Omni Drive
Differential drive robots utilize two independently driven wheels on either side, enabling simple and precise control of forward movement and rotation but limited lateral mobility. Omni drive systems employ multiple omni-directional wheels, allowing seamless movement in any direction without changing the robot's orientation, enhancing maneuverability in tight spaces. The key differences lie in motion freedom, complexity of control systems, and mechanical design, with differential drives favoring straightforward navigation and omni drives providing superior omnidirectional mobility.
Maneuverability and Navigation Capabilities
Differential drive robots excel in straightforward navigation with simple control algorithms, making them ideal for environments requiring precise forward and backward movement, but they struggle with lateral maneuvers. Omni drive systems feature omnidirectional wheels that enable smooth, multidirectional movement, enhancing maneuverability in tight spaces and complex terrains. These capabilities allow omni drive robots to perform agile turns and sideways shifts, significantly improving navigation efficiency in dynamic or cluttered environments.
Application Scenarios for Each Drive Type
Differential drive robots excel in outdoor navigation and uneven terrain applications due to their simplicity and robust traction control, making them ideal for agricultural and warehouse automation. Omni drive systems offer superior maneuverability in confined indoor spaces, enabling precise lateral and diagonal movements essential for service robots and mobile platforms in hospitals and factories. The choice between differential and omni drive hinges on operational environment demands, with differential drives favored for durability and omni drives for agility.
Cost and Complexity Comparison
Differential drive robots typically offer lower cost and simpler mechanical design, utilizing two independently driven wheels for basic navigation. Omni drive systems, featuring multiple omnidirectional wheels, provide enhanced maneuverability but involve higher expenses due to complex drive mechanisms and advanced control algorithms. Maintenance and component replacement costs are also generally increased in omni drive configurations due to their intricate hardware and sensor integration.
Sensor Integration and Compatibility
Differential drive robots typically integrate sensors such as encoders and inertial measurement units (IMUs) with straightforward compatibility due to their two-wheel design, enabling precise odometry and navigation. Omni drive systems, featuring multiple omnidirectional wheels, require advanced sensor fusion techniques combining wheel encoders, IMUs, and sometimes LiDAR or vision sensors for accurate localization and movement in all directions. Sensor integration in omni drives is more complex but offers enhanced maneuverability and adaptability in dynamic environments, making compatibility with multi-modal sensing essential for optimal performance.
Performance in Real-World Environments
Differential drive robots excel in outdoor and uneven terrains due to their simple, robust design and reliable traction control, making them ideal for rough surfaces. Omni drive robots offer superior maneuverability and precision in confined indoor spaces by utilizing multiple omnidirectional wheels, but they often struggle with traction and stability on irregular or slippery surfaces. Performance in real-world environments favors differential drives for durability and pushing power, while omni drives shine in applications requiring complex, smooth navigation.
Choosing the Right Drive: Factors to Consider
Selecting the right drive system depends on factors such as maneuverability, terrain, and application requirements. Differential drive offers simplicity and precise control for straightforward paths, while omni drive provides superior omnidirectional movement essential for tight spaces and complex navigation. Evaluating payload capacity, speed, and control complexity ensures optimal performance in robotic mobility tasks.

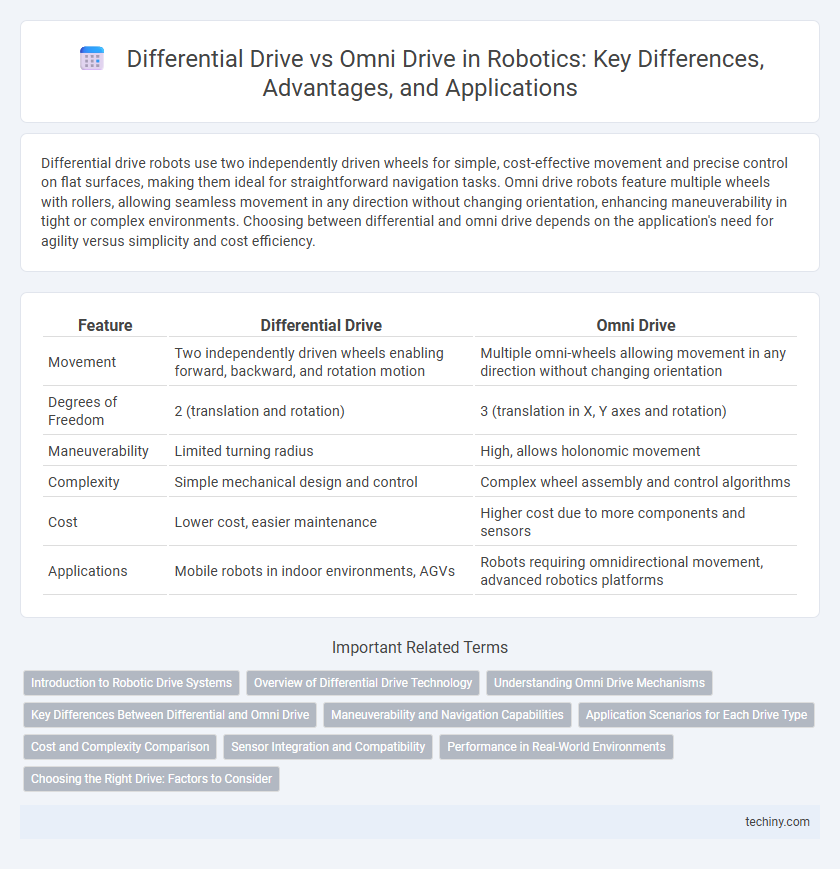

Differential drive vs Omni drive Infographic
