techiny.com Direct drive systems in robotics offer enhanced precision and reduced maintenance by eliminating mechanical components like gears, resulting in smoother motion control and higher torque responsiveness. Gear drive mechanisms, while more compact and capable of torque multiplication, can introduce backlash and wear over time, impacting long-term accuracy. Choosing between direct drive and gear drive depends on application requirements such as speed, torque, space constraints, and durability in robotic systems.
Table of Comparison
| Feature | Direct Drive | Gear Drive |
|---|---|---|
| Mechanism | Motor directly connected to load | Motor connected through gear reduction |
| Accuracy | High precision, low backlash | Moderate precision, potential backlash |
| Torque | Lower torque output | Higher torque through gear multiplication |
| Maintenance | Low, fewer components | Higher, wear in gears |
| Efficiency | High efficiency, minimal losses | Lower efficiency, friction losses in gears |
| Cost | Higher initial cost | Lower initial cost |
| Application | High precision robotics, torque sensing | Heavy load applications, cost-sensitive projects |
Introduction to Direct Drive and Gear Drive in Robotics
Direct drive systems in robotics utilize motors that connect directly to the load, eliminating gears and providing high precision, low backlash, and increased responsiveness. Gear drive systems incorporate mechanical gear trains between the motor and the load, enhancing torque output and enabling speed reduction while potentially introducing backlash and maintenance requirements. The choice between direct drive and gear drive impacts a robot's accuracy, efficiency, and application suitability in tasks such as precision assembly or heavy load manipulation.
Core Principles of Direct Drive Technology
Direct drive technology eliminates intermediate components like gears, allowing motors to transmit torque directly to the load, which significantly reduces mechanical losses and increases efficiency. This design enhances precision and responsiveness by minimizing backlash and compliance, essential for high-performance robotic applications. Employing direct drive systems results in lower maintenance requirements and improved reliability due to fewer moving parts.
Fundamentals of Gear Drive Mechanisms
Gear drive mechanisms use interlocking toothed wheels to transmit torque and control speed, offering precise motion control and increased torque output. Unlike direct drive systems, gear drives can achieve significant mechanical advantage through gear ratios, enabling smaller motors to perform high-torque tasks. The efficiency, backlash, and wear characteristics of gear drives are critical factors influencing their performance in robotic applications.
Efficiency Comparison: Direct Drive vs Gear Drive
Direct drive systems offer higher mechanical efficiency by eliminating gear train losses, resulting in smoother torque transmission and improved energy conservation. Gear drive mechanisms typically introduce friction and backlash, reducing overall efficiency and increasing wear over time. Optimizing robotic performance favors direct drive in applications demanding precision and energy efficiency, while gear drives may suit scenarios requiring torque multiplication with some efficiency trade-offs.
Precision and Accuracy in Robotic Applications
Direct drive systems offer superior precision and accuracy in robotic applications by eliminating backlash and compliance common in gear drives, leading to smoother motion control and higher repeatability. Gear drive mechanisms introduce mechanical play and friction, which can degrade positional accuracy and repeatability, especially in high-precision tasks. Optimizing robotic performance for precision-intensive applications increasingly favors direct drive motors for their minimal mechanical transmission errors.
Maintenance and Reliability Considerations
Direct drive systems reduce maintenance needs by eliminating gearboxes, resulting in fewer mechanical components subject to wear and tear. Gear drive systems require regular lubrication, alignments, and inspection to prevent failures caused by gear wear, backlash, and misalignment. Reliability in robotic applications improves with direct drive due to higher precision and lower risk of mechanical breakdowns compared to gear-driven counterparts.
Cost Implications: Initial Investment and Long-Term Value
Direct drive systems in robotics typically require a higher initial investment due to advanced motor technology and precision manufacturing, but they reduce ongoing maintenance costs by eliminating gear wear and backlash. Gear drive setups offer lower upfront costs, making them attractive for budget-conscious projects, yet they incur higher long-term expenses from parts replacement and efficiency losses caused by friction and backlash. Evaluating total cost of ownership reveals that direct drive solutions often provide better value in high-performance or high-duty-cycle applications despite their steeper initial price.
Impact on Payload and Power Consumption
Direct drive robotics systems offer higher payload capacity by eliminating gear losses, enabling more efficient torque transmission and reducing mechanical backlash. Gear drive mechanisms tend to increase power consumption due to friction and heat generation within the gears, which also limits the maximum achievable payload. Optimizing payload handling with minimal energy use favors direct drive designs, especially in precision and lightweight robotic applications.
Industrial Applications: When to Use Each Drive System
Direct drive systems in industrial robotics offer high precision and minimal backlash, making them ideal for applications requiring fast, accurate positioning and smooth motion control, such as semiconductor manufacturing or precision assembly. Gear drive systems provide increased torque and durability, suitable for heavy-duty tasks like material handling and welding where load capacity and robustness are critical. Selecting between direct drive and gear drive depends on factors like required torque, speed, accuracy, and environmental conditions in specific industrial applications.
Future Trends in Robotic Drive Technologies
Future trends in robotic drive technologies emphasize a shift towards direct drive systems due to their higher precision, reduced maintenance, and improved energy efficiency compared to traditional gear drive mechanisms. Advances in materials science and motor design are enabling direct drives to overcome torque limitations while enhancing responsiveness and control accuracy. Integration of intelligent control algorithms and sensor feedback is further propelling direct drive adoption in robotics, promoting smoother operation and longer system lifespan.

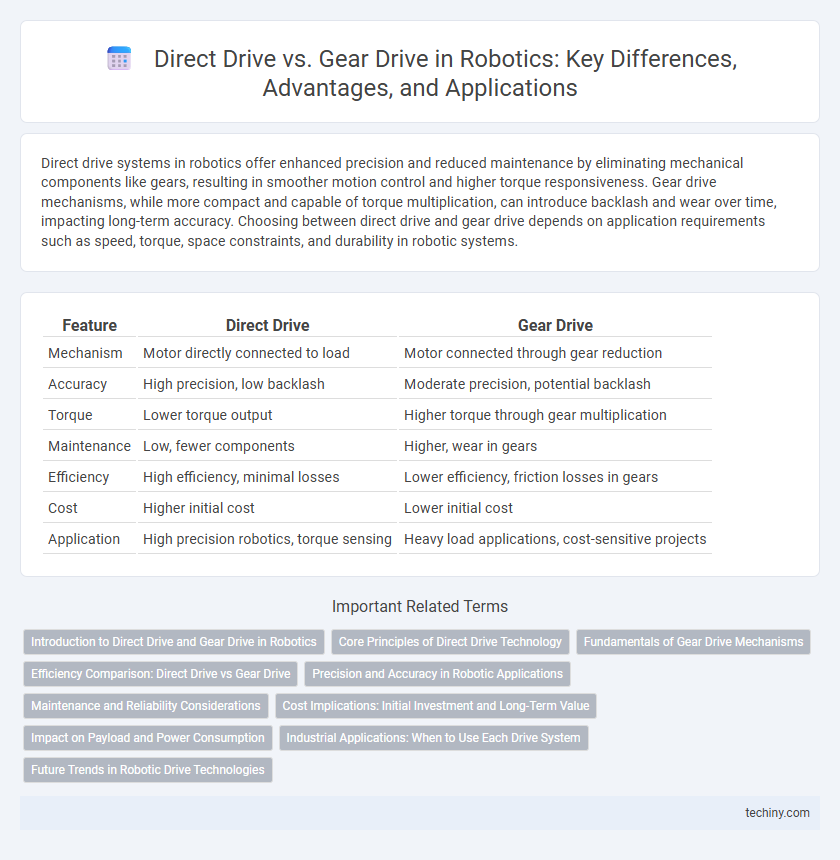

Direct drive vs Gear drive Infographic
