techiny.com Time of Flight (ToF) sensors measure distance by calculating the travel time of emitted light pulses, offering rapid and precise depth mapping in robotics. Structured light sensors project known light patterns onto surfaces, detecting distortions to create detailed 3D models, ideal for high-resolution object recognition. ToF sensors excel in dynamic environments with fast-moving objects, while structured light sensors provide superior accuracy for static, intricate surface scanning.
Table of Comparison
| Feature | Time of Flight Sensor | Structured Light Sensor |
|---|---|---|
| Working Principle | Measures distance by calculating light pulse travel time | Projects known light pattern and analyzes deformation to map depth |
| Depth Accuracy | Moderate to high accuracy over long range | High accuracy at close range, less effective at long distances |
| Measurement Range | Up to several meters, suitable for large environments | Typically limited to under 1 meter |
| Performance in Ambient Light | Robust; less affected by ambient lighting or sunlight | More sensitive to ambient light; performs best in controlled lighting |
| Cost | Generally higher due to complex hardware | Lower cost, simpler optical components |
| Use Cases | Autonomous navigation, drone obstacle avoidance, robotics in varying lighting | Facial recognition, gesture control, close-range 3D scanning |
| Processing Speed | Fast, real-time depth data acquisition | Moderate, pattern processing adds computational load |
Introduction to Depth Sensing Technologies
Time of Flight (ToF) sensors measure distance by calculating the time taken for emitted light to reflect back from objects, offering rapid and accurate depth data suitable for dynamic environments in robotics. Structured light sensors project patterned light onto surfaces and analyze deformation of these patterns to reconstruct detailed 3D shape information, excelling in precision for static or controlled settings. Both technologies enable robots to perceive spatial layouts, with ToF providing speed and robustness, whereas structured light ensures high-resolution depth maps for complex tasks.
Overview of Time of Flight Sensors
Time of Flight (ToF) sensors measure distance by calculating the time taken for a light signal to travel to an object and back, providing accurate depth information critical in robotics applications such as obstacle detection and environment mapping. These sensors emit infrared light pulses and use the reflected signals to create real-time 3D maps with high speed and precision, outperforming traditional methods in dynamic and complex environments. ToF sensors excel in long-range measurements and varying lighting conditions, making them essential for autonomous navigation and robotic vision systems.
Exploring Structured Light Sensors
Structured light sensors project a known pattern of light onto objects and capture the deformation of this pattern to create accurate 3D models, making them ideal for detailed surface reconstruction in robotics. Unlike Time of Flight (ToF) sensors that measure distance based on the time taken by light pulses to reflect, structured light provides higher resolution data suited for close-range applications such as object recognition and manipulation. These sensors excel in environments requiring precise texture and shape analysis, enhancing robotic perception and interaction capabilities.
Working Principles: ToF vs Structured Light
Time of Flight (ToF) sensors measure distance by calculating the travel time of emitted infrared light pulses reflected back from objects, enabling rapid depth mapping with high accuracy. Structured Light sensors project a known light pattern onto a surface and capture its deformation with a camera, using triangulation to derive depth information from the distortion of the pattern. ToF sensors excel in long-range and real-time applications, while structured light is preferred for high-resolution 3D scanning in controlled environments.
Accuracy and Precision Comparison
Time of Flight (ToF) sensors offer high precision by measuring the time it takes for light to travel to an object and back, enabling accurate depth mapping even in low-light conditions. Structured Light sensors project a known pattern onto the surface and calculate depth based on pattern deformation, providing superior accuracy in capturing fine details but often struggling in outdoor or bright environments. While ToF sensors excel in general-purpose robotics for consistent depth measurements, Structured Light sensors are preferred for tasks requiring intricate surface analysis with high spatial resolution.
Performance in Various Lighting Conditions
Time of Flight (ToF) sensors maintain consistent performance in diverse lighting environments by measuring the time it takes for light to reflect off objects, making them less sensitive to ambient light interference. Structured light sensors project a known light pattern and rely on distortions of this pattern to sense depth, which can be significantly affected by strong ambient illumination or direct sunlight. For robotics applications requiring reliable depth perception across varying lighting conditions, ToF sensors typically offer superior accuracy and stability compared to structured light sensors.
Application Areas for ToF and Structured Light
Time of Flight (ToF) sensors excel in automotive and industrial robotics for long-range depth measurement and real-time obstacle detection. Structured light sensors are widely used in precision tasks like facial recognition, quality inspection, and small object scanning due to their high accuracy in short-range depth sensing. Both sensor types enhance robotic perception, but ToF is preferred for dynamic environments while structured light suits controlled settings requiring fine detail.
Integration and Hardware Requirements
Time of Flight (ToF) sensors offer simpler integration in robotics due to their compact size and lower hardware requirements, requiring minimal lighting conditions and offering direct distance measurement. Structured light sensors, while delivering higher resolution 3D data, demand more complex hardware setups including precise projector and camera alignment, often increasing system complexity and processing power needs. ToF sensors generally consume less power and integrate seamlessly with embedded systems, whereas structured light systems may require additional synchronization and calibration for accurate depth sensing in dynamic environments.
Cost and Scalability Factors
Time of Flight (ToF) sensors generally offer lower production costs due to simpler hardware and reduced computational requirements compared to Structured Light sensors, making them more scalable for mass-market robotics applications. Structured Light sensors, while providing higher resolution and accuracy, involve complex projection systems and more expensive components, which increase overall costs and limit scalability in cost-sensitive projects. vybor between ToF and Structured Light sensors significantly impacts budget allocation and scalability strategies in robotic vision system design.
Future Trends in Robotics Depth Sensing
Time of Flight (ToF) sensors deliver rapid, precise depth measurements by calculating the travel time of light pulses, making them ideal for real-time robotics applications requiring dynamic environment mapping. Structured light sensors project intricate light patterns to capture high-resolution depth data, offering superior accuracy in controlled settings for tasks like object recognition and manipulation. Future trends in robotics depth sensing emphasize hybrid systems integrating ToF and structured light technologies to enhance accuracy, range, and environmental adaptability, supporting advanced autonomous navigation and interaction capabilities.

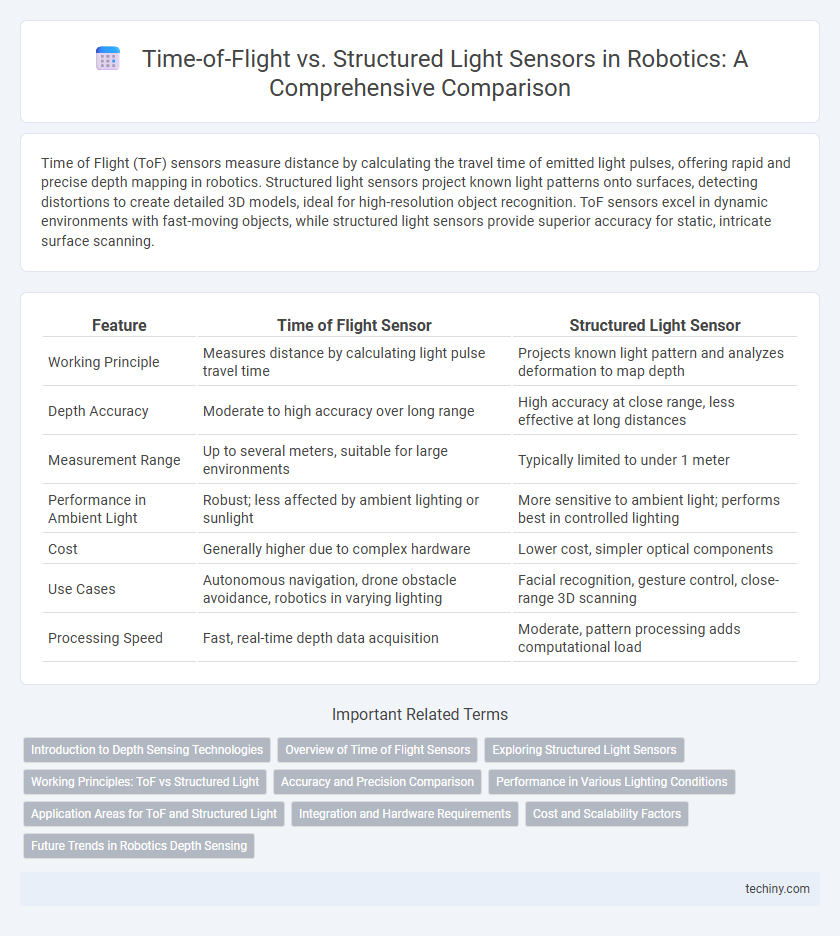

Time of Flight sensor vs Structured light sensor Infographic
