techiny.com Cartesian robots operate on three linear axes (X, Y, Z) and excel in applications requiring high precision and rigidity, such as CNC machining and 3D printing. SCARA robots feature a selective compliance articulated design, offering fast, repeatable movements ideal for assembly and pick-and-place tasks. While Cartesian robots provide straightforward programming and scalability, SCARA robots deliver greater speed and flexibility in lateral directions.
Table of Comparison
| Feature | Cartesian Robot | SCARA Robot |
|---|---|---|
| Movement Type | Linear (X, Y, Z axes) | Selective Compliance Articulated Robot Arm (rotary joints) |
| Structure | Rectangular, linear gantry | Arm with two parallel rotary joints |
| Precision | High accuracy, rigid, stable | High speed, good repeatability |
| Speed | Moderate, limited by linear axes | Faster, suitable for quick pick-and-place |
| Payload Capacity | Higher payloads due to sturdy frame | Moderate payloads, optimal for light-medium loads |
| Workspace | Rectangular cubic volume | Cylindrical workspace, limited vertical reach |
| Applications | 3D printing, CNC machining, assembly | Electronics assembly, packaging, pick-and-place |
| Cost | Typically lower cost, simple design | Moderate cost, more complex mechanics |
Overview of Cartesian Robots and SCARA Robots
Cartesian robots operate on three linear axes (X, Y, and Z) providing precise, straight-line movements ideal for pick-and-place, assembly, and CNC applications. SCARA robots feature two parallel rotary joints allowing horizontal movement with high speed and repeatability, commonly used in packaging, assembly, and material handling. Both robot types excel in specific industrial tasks due to their unique kinematic structures and operational capabilities.
Key Differences in Design and Structure
Cartesian robots feature linear axes that move in X, Y, and Z directions, providing high precision and rigidity ideal for heavy-load tasks. SCARA robots utilize a selective compliance articulated structure with rotary joints, enabling faster horizontal movements and enhanced flexibility for assembly processes. The fundamental design difference lies in Cartesian robots' straight-line motion contrasted with SCARA's arm-like rotational motion, impacting their application versatility and workspace configuration.
Movement Capabilities and Axes Comparison
Cartesian robots operate on three linear axes (X, Y, and Z) providing precise, straight-line movements ideal for tasks requiring high accuracy and repeatability. SCARA robots feature two parallel rotary joints and a linear Z-axis, allowing for faster horizontal movement with excellent rigidity and flexibility in assembly operations. Comparing axes, Cartesian robots excel in simple, linear motion control while SCARA robots deliver superior speed and dexterity in complex, planar tasks.
Precision and Repeatability: Which Robot Excels?
Cartesian robots deliver exceptional precision and repeatability due to their linear motion along X, Y, and Z axes, making them ideal for tasks requiring high accuracy such as CNC machining and 3D printing. SCARA robots offer fast, consistent horizontal movement with moderate precision, excelling in assembly processes where speed and repeatability in the XY plane are critical. For applications demanding superior spatial accuracy and minimal cumulative error, Cartesian robots generally outperform SCARA robots in both precision and repeatability metrics.
Typical Industrial Applications
Cartesian robots excel in pick-and-place operations, CNC machining, and 3D printing due to their linear motion along X, Y, and Z axes, offering high precision and repeatability in automation tasks. SCARA robots are preferred for assembly, packaging, and palletizing applications, delivering fast, horizontal movements with high rigidity and excellent angular repeatability in tight spaces. Both robots enhance productivity in electronics manufacturing, automotive assembly, and pharmaceutical packaging through their distinct kinematic advantages suited to specific industrial workflows.
Footprint and Space Efficiency
Cartesian robots feature a linear design with a rectangular footprint, making them highly space-efficient for applications requiring straightforward, precise movements along X, Y, and Z axes. SCARA robots have a smaller footprint compared to Cartesian robots, with a compact, articulated arm that excels in limited workspace environments while providing fast, horizontal reach. Space efficiency depends on the specific application, but SCARA robots typically outperform Cartesian robots in confined areas due to their flexible arm configuration.
Speed and Payload Considerations
Cartesian robots excel in payload capacity due to their rigid linear actuators, making them ideal for heavy-duty applications requiring precise linear movements. SCARA robots offer superior speed and agility with high-speed rotational joints, suitable for tasks demanding rapid pick-and-place actions with moderate payloads. Choosing between Cartesian and SCARA robots depends on the balance between speed requirements and payload needs in specific manufacturing processes.
Programming and Integration Ease
Cartesian robots offer straightforward programming due to their linear axes and simple coordinate system, making them easier to integrate into existing automation systems with standard G-code and PLC compatibility. SCARA robots require more complex programming involving joint angles and kinematics, demanding specialized software and expertise for smooth integration. Industries favor Cartesian models for their user-friendly setup in pick-and-place tasks, while SCARA suits applications needing higher precision and flexibility, though at the cost of increased programming complexity.
Maintenance and Operating Costs
Cartesian robots typically incur lower maintenance and operating costs due to their simple linear design and fewer moving parts, reducing wear and tear over time. SCARA robots, while offering higher speed and precision, often require more frequent maintenance and specialized service, increasing overall operational expenses. Cost efficiency between the two depends on specific application needs, with Cartesian robots favored for budget-conscious operations and SCARA robots for tasks demanding agility and accuracy.
Choosing the Right Robot for Your Needs
Selecting the ideal robot depends on the application's precision, payload, and workspace requirements. Cartesian robots offer high rigidity and linear motion accuracy, making them suitable for pick-and-place tasks with heavy loads in large, structured environments. SCARA robots provide fast, precise lateral movements with compact footprints, excelling in assembly and packaging where speed and repeatability are critical.

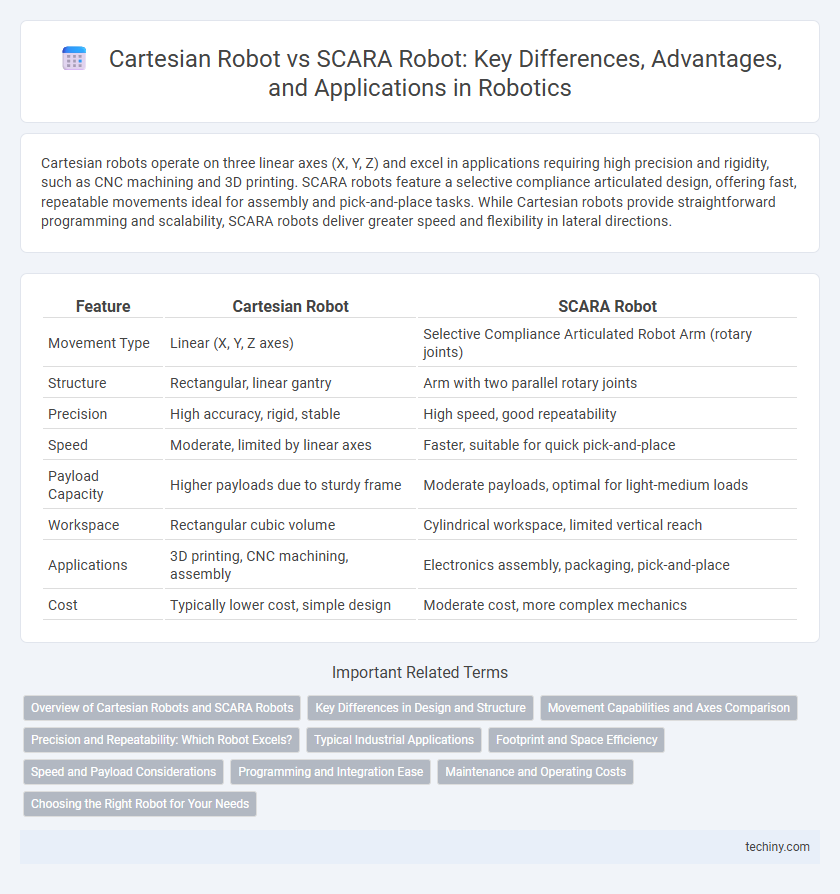

Cartesian robot vs SCARA robot Infographic
