techiny.com Brushed motors feature carbon brushes and a commutator to transfer electric current, resulting in simpler design but increased wear and maintenance requirements compared to brushless motors. Brushless motors utilize electronic controllers to achieve higher efficiency, reduced noise, and longer lifespan due to the absence of brushes. Robotics applications often favor brushless motors for precision control, durability, and energy efficiency in dynamic environments.
Table of Comparison
| Feature | Brushed Motor | Brushless Motor |
|---|---|---|
| Design | Uses brushes and commutator | Electronic controller replaces brushes |
| Efficiency | Lower (70-80%) | Higher (85-95%) |
| Maintenance | High (brush replacement needed) | Low (brushless, minimal wear) |
| Durability | Shorter lifespan due to brush wear | Longer lifespan, robust construction |
| Control | Simple speed control | Precise speed and position control |
| Noise | Higher acoustic noise | Quieter operation |
| Cost | Lower initial cost | Higher initial cost |
| Applications | Basic robotics, budget projects | Advanced robotics, drones, precision tasks |
Introduction to Brushed and Brushless Motors
Brushed motors utilize carbon brushes to deliver current to the rotating armature, making them simple and cost-effective for basic robotic applications. Brushless motors eliminate brushes by using electronic commutation, offering higher efficiency, reduced maintenance, and longer lifespan, which are critical in advanced robotics requiring precision and durability. Selecting between brushed and brushless motors depends on factors such as torque requirements, control complexity, and application environment within the robotics field.
Core Differences Between Brushed and Brushless Motors
Brushed motors use mechanical brushes to transfer electricity to the rotor, causing wear and requiring maintenance, while brushless motors employ electronic commutation for higher efficiency and longer lifespan. Brushed motors typically have lower initial costs and simpler control systems, whereas brushless motors offer superior speed control, reduced noise, and greater power-to-weight ratios. In robotics, brushless motors are preferred for precision and durability, making them ideal for high-performance applications despite their higher initial investment.
How Brushed Motors Work in Robotics
Brushed motors in robotics operate using a commutator and brushes that facilitate current flow to the motor windings, creating a magnetic field that interacts with permanent magnets to generate torque. The mechanical contact between brushes and the commutator causes friction and wear, affecting efficiency and maintenance frequency. These motors are favored in simple robotic applications due to their straightforward control, low cost, and ease of implementation.
Advantages of Brushed Motors for Robotics Applications
Brushed motors offer straightforward control and cost-effective design, making them highly suitable for entry-level and educational robotics projects. Their simple construction enables easy maintenance and repair, which benefits rapid prototyping and environments where operational downtime must be minimized. Additionally, brushed motors provide reliable torque at low speeds, crucial for precise movements in robotic applications requiring accurate positioning.
How Brushless Motors Operate in Robotics
Brushless motors operate in robotics by using electronic controllers to switch current through coils, eliminating the need for physical brushes and commutators. This design significantly reduces friction and wear, enhancing efficiency and longevity compared to brushed motors. The precise control of electromagnetic fields enables higher torque-to-weight ratios and smoother operation, making brushless motors ideal for robotic applications requiring accuracy and durability.
Key Benefits of Brushless Motors in Robotics
Brushless motors in robotics offer superior efficiency and higher torque-to-weight ratios compared to brushed motors, enhancing precision and performance in robotic applications. Their reduced maintenance requirements and longer lifespan result from the absence of brushes, minimizing wear and electrical noise for reliable operation in automated systems. Advanced electronic commutation enables smoother speed control and faster response times, crucial for complex robotic movements and increased energy savings.
Comparative Performance Analysis: Brushed vs Brushless
Brushless motors outperform brushed motors in efficiency, torque, and lifespan due to the absence of brushes that reduce friction and wear. Brushed motors typically generate more noise and require higher maintenance, making brushless variants ideal for precision robotics and continuous operation. The superior thermal management and power-to-weight ratio of brushless motors allow for enhanced performance in robotic applications requiring speed control and durability.
Cost Considerations: Brushed vs Brushless Motors
Brushed motors typically have a lower upfront cost due to their simpler design and widespread availability, making them a budget-friendly choice for basic robotic applications. In contrast, brushless motors, while more expensive initially, offer greater durability and lower maintenance costs, often resulting in better long-term value for advanced robotics requiring high efficiency and reliability. Evaluating total cost of ownership in robotic systems highlights brushless motors as a cost-effective investment despite higher initial pricing.
Maintenance and Longevity Factors
Brushed motors require regular maintenance due to brush and commutator wear, leading to frequent replacements and potential downtime. Brushless motors offer longer longevity with sealed designs that reduce contamination and eliminate brush wear, resulting in lower maintenance costs. Enhanced durability and efficiency make brushless motors preferable for robotics applications demanding reliable, long-term performance.
Choosing the Right Motor for Robotic Projects
Brushed motors offer simplicity and lower initial cost, making them suitable for basic robotic projects with less demanding precision requirements. Brushless motors provide higher efficiency, greater durability, and improved speed control, ideal for advanced robotics needing precise torque and extended lifespan. Evaluating power needs, control complexity, and maintenance frequency is crucial when selecting the appropriate motor for specific robotic applications.

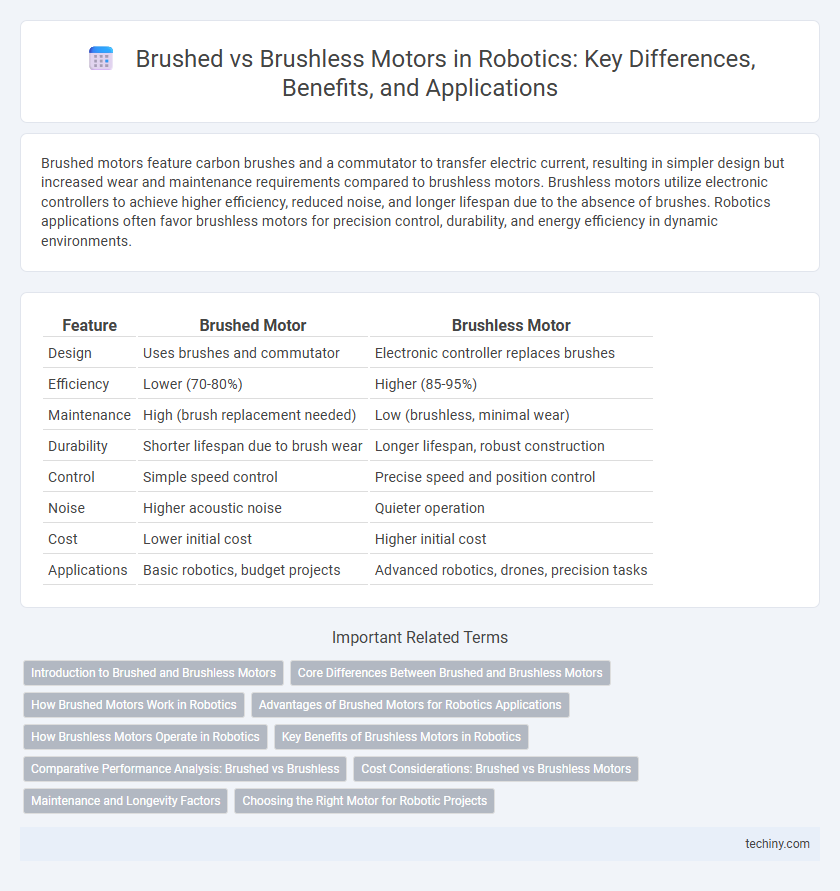

Brushed motor vs brushless motor Infographic
