techiny.com The Baxter robot excels in collaborative tasks with its dual arms and integrated vision system, making it ideal for flexible manufacturing environments. The UR5 robot offers precision and repeatability in industrial automation, featuring a sleek design optimized for space-constrained workspaces. Both robots enhance productivity but cater to different operational needs based on their unique capabilities and programming flexibility.
Table of Comparison
| Feature | Baxter Robot | UR5 Robot |
|---|---|---|
| Manufacturer | Rethink Robotics | Universal Robots |
| Payload Capacity | 2 kg per arm | 5 kg |
| Degrees of Freedom | 7 DOF per arm | 6 DOF |
| Reach | 1.2 meters | 0.85 meters |
| Collaborative | Yes, dual-arm | Yes, single-arm |
| Control Interface | Easy-to-use interface with touchscreen | Polyscope GUI, script-based programming |
| Typical Applications | Research, light manufacturing, education | Assembly, pick and place, packaging |
| Weight | 50 kg | 20.6 kg |
| Price Range | Discontinued (estimated $25,000-35,000) | $35,000-45,000 |
| Safety Features | Force-sensing arms, compliant hardware | Collision detection, safety-rated software |
Baxter Robot vs UR5 Robot: Overview and Key Differences
Baxter Robot and UR5 Robot differ significantly in design and application, with Baxter featuring dual arms and integrated sensors tailored for collaborative tasks, while UR5 offers a compact, 6-axis robotic arm optimized for precision and flexibility in industrial automation. Baxter excels in human-robot interaction with built-in safety features and intuitive programming, making it ideal for research and light manufacturing, whereas UR5's payload capacity of 5 kg and 850 mm reach support a wide range of manufacturing processes requiring high repeatability. The key differences lie in Baxter's collaborative capabilities and user-friendly interface versus UR5's superior precision, speed, and adaptability in complex automation environments.
Design and Build: Comparing Physical Structures
Baxter robot features a dual-arm design with integrated sensors and a large, padded frame optimized for human-robot collaboration, emphasizing safety and user-friendly interaction in manufacturing environments. In contrast, the UR5 robot from Universal Robots boasts a sleek, lightweight single-arm structure with high precision and modular flexibility, making it ideal for tasks requiring compactness and agility. Both robots utilize advanced materials, but Baxter's design prioritizes robustness and adaptability, while UR5 focuses on compactness and ease of installation.
Ease of Programming: User Interfaces and Software
Baxter robot features a user-friendly interface with intuitive drag-and-drop programming that caters to users without extensive coding experience, leveraging its integrated sensors for interactive task setup. In contrast, the UR5 robot offers a more traditional programming environment compatible with file-based languages like URScript and supports advanced tools such as Polyscope for graphical programming, appealing to professional developers. Both robots promote efficient task customization, but Baxter emphasizes accessibility while UR5 prioritizes flexibility and integration with diverse industrial automation systems.
Payload Capacity and Reach: Performance Metrics
The Baxter robot offers a payload capacity of up to 2.2 kg and a reach of approximately 1.14 meters, making it suitable for light assembly and collaborative tasks. In contrast, the UR5 robot excels with a higher payload capacity of 5 kg and a longer reach of 0.85 meters, optimizing it for precision automation and industrial applications. These performance metrics highlight the UR5's advantage in handling heavier loads, while Baxter's design prioritizes flexibility and safety in shared human-robot environments.
Flexibility and Applications in Industry
Baxter robot offers superior flexibility with its dual-arm design and integrated vision system, making it ideal for complex assembly and material handling tasks in manufacturing. UR5 robot features a lightweight, six-axis arm capable of high precision and repeatability, suitable for pick-and-place, packaging, and machine tending applications. Industries favor Baxter for customizable automation solutions while UR5 is preferred for its ease of integration and adaptability in diverse industrial environments.
Safety Features and Human-Robot Collaboration
The Baxter robot incorporates series elastic actuators and compliant joints, enabling safe, passive safety interactions with humans without the need for external safety fences. UR5 employs advanced force-torque sensors and real-time collision detection algorithms, allowing dynamic adjustment of motion to prevent injuries during close human-robot collaboration. Both robots support ISO 10218 and ISO/TS 15066 safety standards, enhancing seamless integration into shared workspaces with optimized collaborative operations.
Integration with Existing Automation Systems
The Baxter robot offers advanced sensors and user-friendly software designed for seamless integration with existing automation systems in complex manufacturing environments. UR5 robot from Universal Robots features a compact design and flexible programming via URScript, enabling straightforward incorporation into diverse production lines and legacy equipment. Both robots support industry-standard communication protocols like Ethernet/IP and Modbus TCP, facilitating smooth interoperability and efficient workflow automation.
Cost Analysis: Initial Investment and ROI
Baxter robot typically requires a higher initial investment, costing around $25,000 to $35,000, whereas the UR5 robot's price ranges from $40,000 to $50,000 depending on configuration. The ROI for Baxter is often faster for low-volume, collaborative tasks due to its user-friendly interface and reprogrammability, while UR5 offers higher precision and payload capacity suited for industrial automation, impacting long-term value. Cost analysis should consider maintenance, integration complexity, and application-specific productivity to accurately assess the total investment and return timeline for each robot.
Real-World Case Studies: Baxter vs UR5 Deployments
Baxter robot excels in collaborative tasks within manufacturing environments, demonstrated by its deployment at Rethink Robotics' pilot programs where it improved assembly line efficiency by 20%. UR5 robot, known for its precision and flexibility, successfully enhanced small parts handling in automotive production at BMW, reducing cycle times by 15%. Real-world case studies illustrate Baxter's advantage in human-robot collaboration, while UR5 outperforms in high-precision industrial automation.
Future Trends: Evolving Capabilities of Collaborative Robots
Baxter and UR5 robots exemplify the future trends in collaborative robotics with advancing sensor integration and adaptive machine learning algorithms, enhancing human-robot interaction and task flexibility. Baxter's dual-arm design and user-friendly programming make it suited for dynamic, repetitive tasks, while UR5's precision and modularity support complex assembly and automation workflows. Emerging capabilities focus on real-time data processing, safer collaborative environments, and seamless integration with Industry 4.0 systems, driving efficiency and scalability in smart manufacturing.

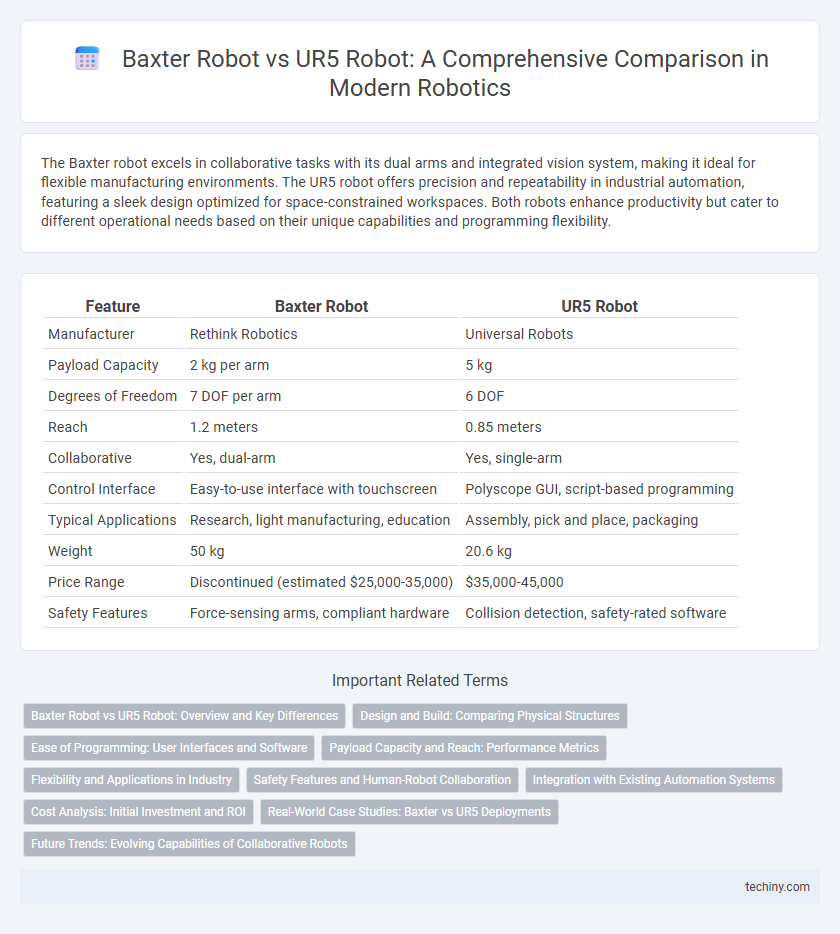

Baxter robot vs UR5 robot Infographic
